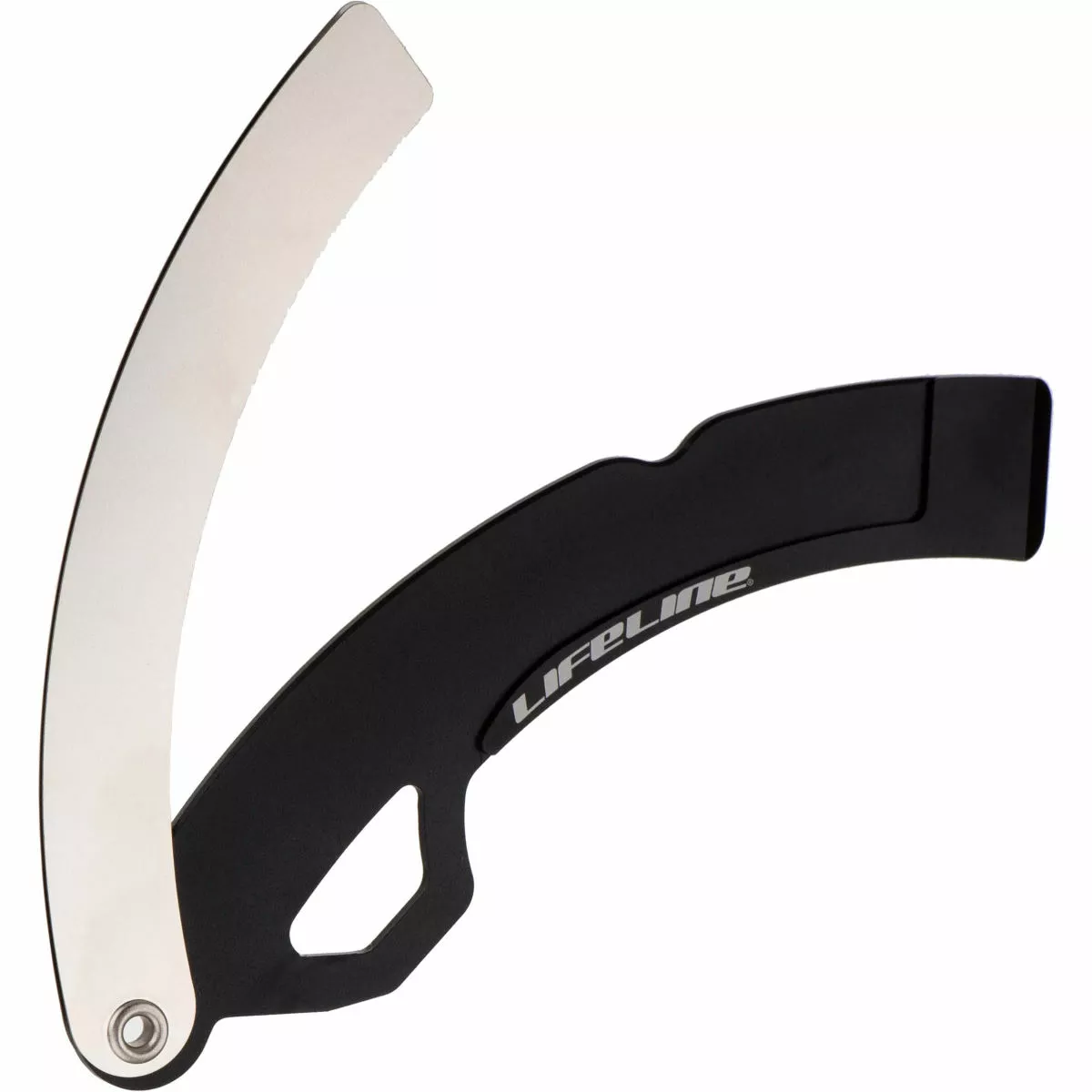

LifeLine Pro Disc Brake Caliper Alignment Tool

Easy to use and prevent brake rubbing issues.

Set the correct clearance between the brake pads and the rotor. The two thin plates simulate the clearance between the brake pads and the rotor.

Follow the simple steps below:

1) Loosen the bolts holding the brake caliper to the adaptor/frame. Just loosen it sufficiently so that the brake caliper can slide from side to side.

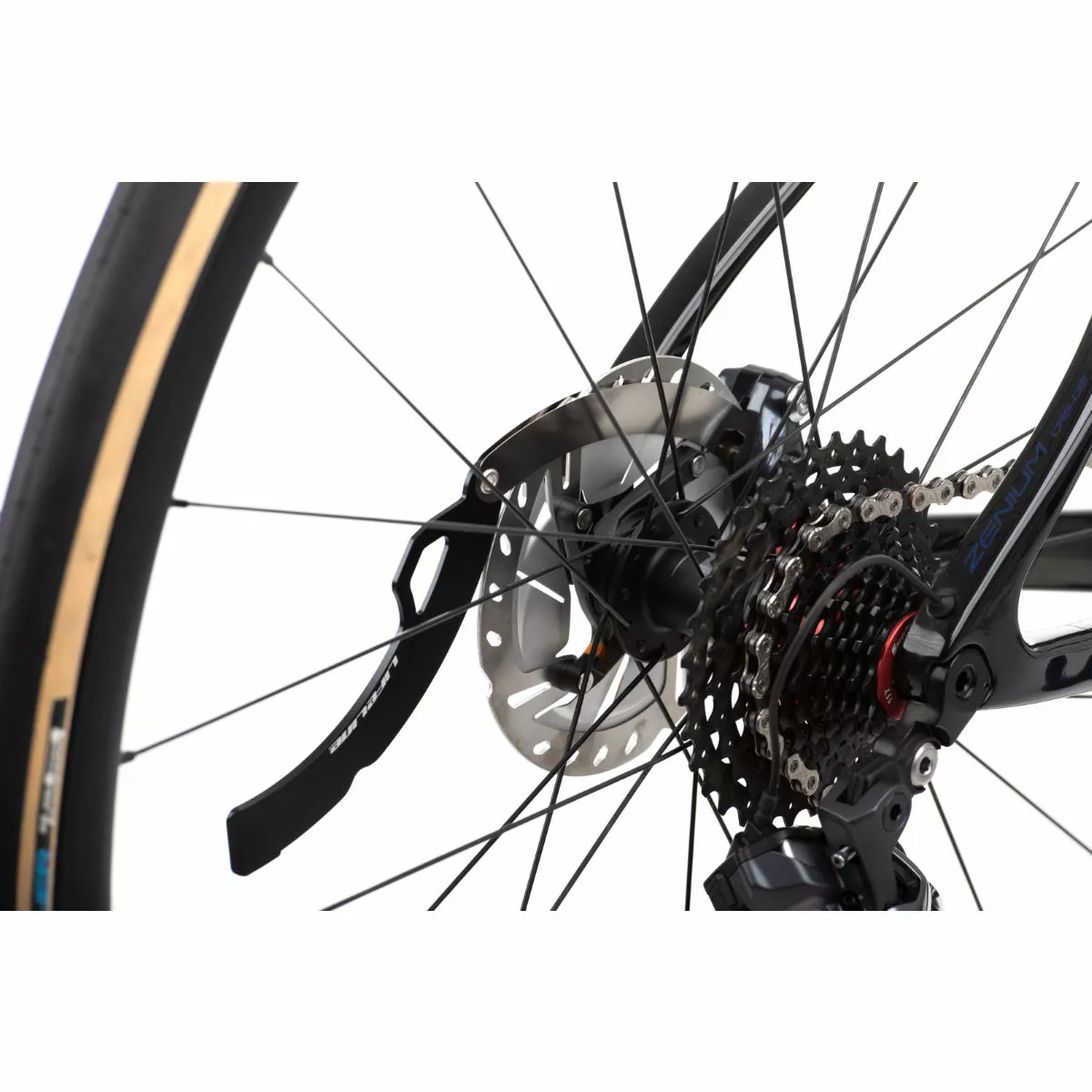

2/ Insert the Caliper Alignment Tool between the pads and the rotor.

3) Pull the brake lever- focing the pads against the alignment tool and in turn against the rotor

4) While still holding on to the brake lever, tighten the bolts on the brake caliper.

5) Release the brake lever and remove the tool and your pads should now be centred to the rotor with an equal distance either side.
