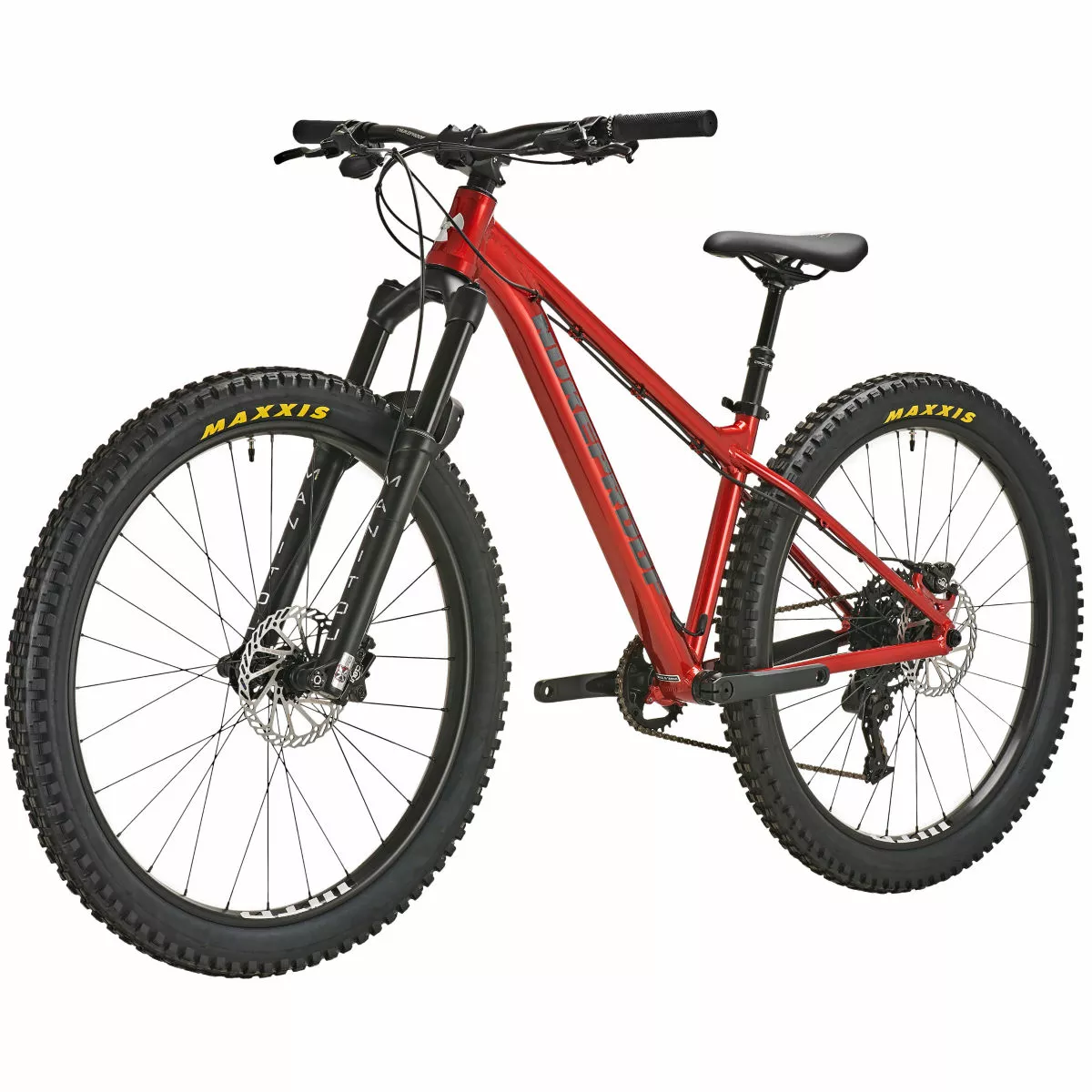

Nukeproof Cub-Scout 26 Race Youth Mountain Bike (Box 4 – 202

The Cub-Scout 26 Race is equipped with 120mm-travel Manitou Machete Comp air suspension forks, a BOX Four 8-Speed groupset with a wide-ranging 11-42T cassette and powerful Clarks kid-specific hydraulic disc brakes. It also rolls upon Boost Nukeproof Neutron Tubeless Ready wheels wrapped in Tubeless Ready large volume 2.5” Maxxis Minion DHF tyres.

Engineered for Young Off-Road Trail Riders

The Cub-Scout 26 Race is not just another kids bike: taking inspiration from Nukeproof’s award-winning Scout adult hardtail range, the Cub-Scout 26 has been designed from the ground up as a proper mini-hardtail mountain bike. It has been designed to allow kids to learn the ropes of riding, inspire confidence on the trails and act as the perfect platform for progression. Developed and tested with the help of their own children, Nukeproof has created a class-leading lightweight kids bike range to inspire and nurture budding future World Cup or EWS winners.

The range of Cub-Scout Hardtails are available in 20”, 24” or 26” options. This means that there should be a bike to suit kids of all sizes from ages 5 and up. Each bike features a lightweight custom butted 6061 Alloy frameset with bang up to date long, low and slack kids-specific geometry.

Kids Specific Components:

Proper fit and function of components are essential for kids bikes because adult components are not optimised for smaller people. To ensure that these bikes fit and function perfectly, Nukeproof took the time to test and develop their own or work with their partners to select the best kids-specific components they could find on the market.

Kid Specific parts include:

Manitou Machete Comp Air Suspension forks with custom optimised damping for lighter riders
Clarks Kids Specific Hydraulic Disc Brakes
Nukeproof Urchin Saddle
Nukeproof Urchin Handlebar (700mm wide)
Nukeproof Urchin Grips
Brand-X Ascend dropper seatpost
160mm Samox 2 piece Crank
WTB STi 30 TCS Rims (Tubeless Ready)
Large Volume 2.5” Maxxis Minion DHF Tyres to ensure grip and a smooth ride

Features:

Frame: Nukeproof Cub-Scout 26, custom-butted hydro-formed 6061 Alloy, internal cable routing for dropper seat posts, threaded bottom bracket, 142mm Bolt-thru rear axle spacing
Fork: Manitou Machete Comp 27.5” TS Air, 120mm Travel, Custom Kids tune, 1.5 Tapered Steerer, 37mm Offset, Boost 15x110mm Bolt-thru Axle
Front Wheel: Nukeproof Neutron 15x110mm BOOST hub on WTB STi30 26″ TCS Rim
Rear Wheel: Nukeproof Neutron 12x142mm hub on WTB STi30 26″ TCS Rim
Tyres: Front & Rear: Maxxis Minion 26″ x 2.5″ EXO TR (Tubeless Ready)
Crankset: Samox TAF38J 2 Piece Crank 160mm, 32T, BCD 104
Shifter: BOX Four 8-Speed
Rear Derailleur: BOX Four 8-Speed
Chain: BOX Four 8-Speed
Cassette: Sunrace CSM680 8-Speed, 11-42T
Brakes: Clarks Kids Specific Hydraulic Brakes
Front Rotor: Clarks, 160mm
Rear Rotor: Clarks, 160mm

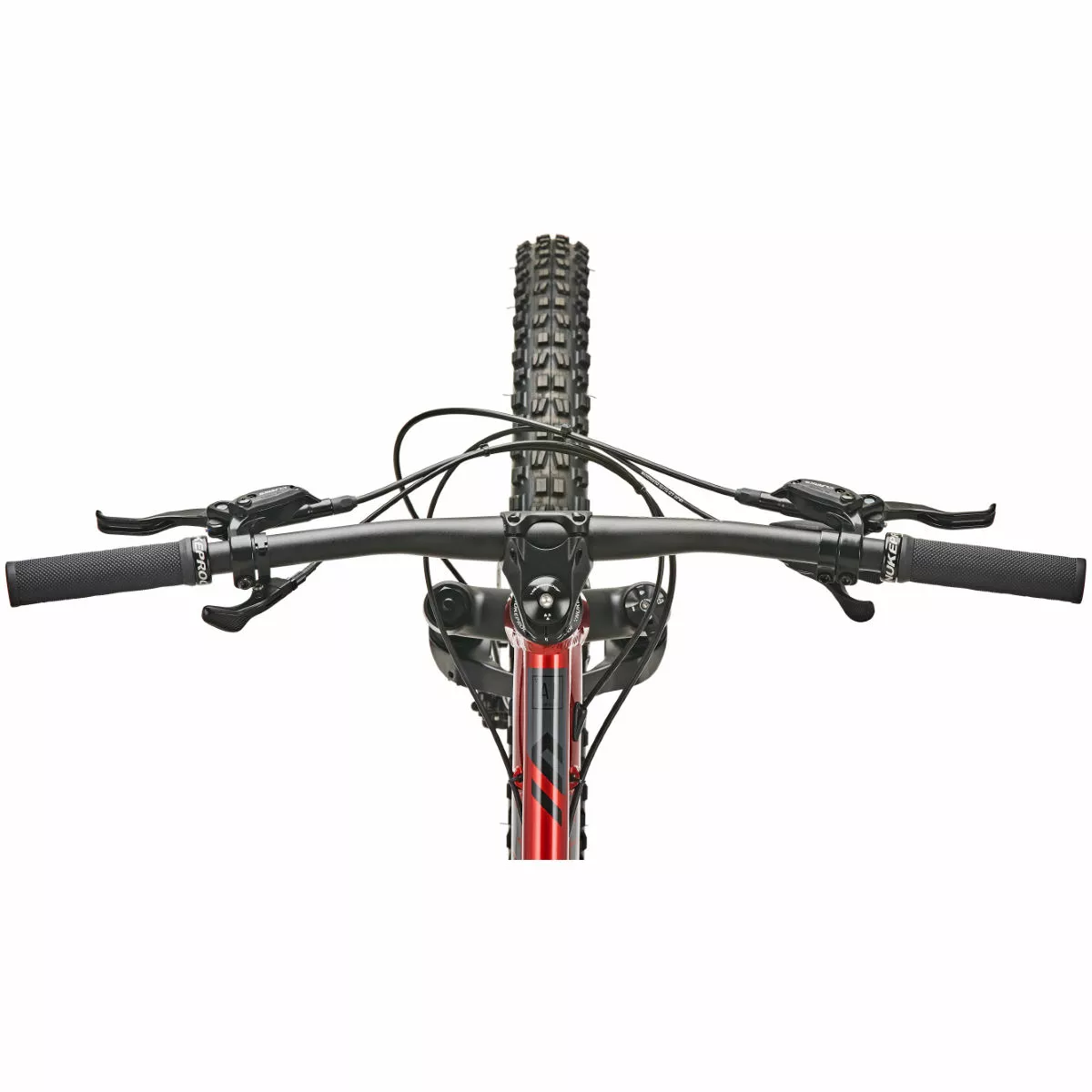

Handlebar: Nukeproof Urchin 700mm Wide, 15mm Rise, 31.8mm Clamp
Stem: Nukeproof Neutron AM, 45mm, black
Saddle: Nukeproof Urchin, Black

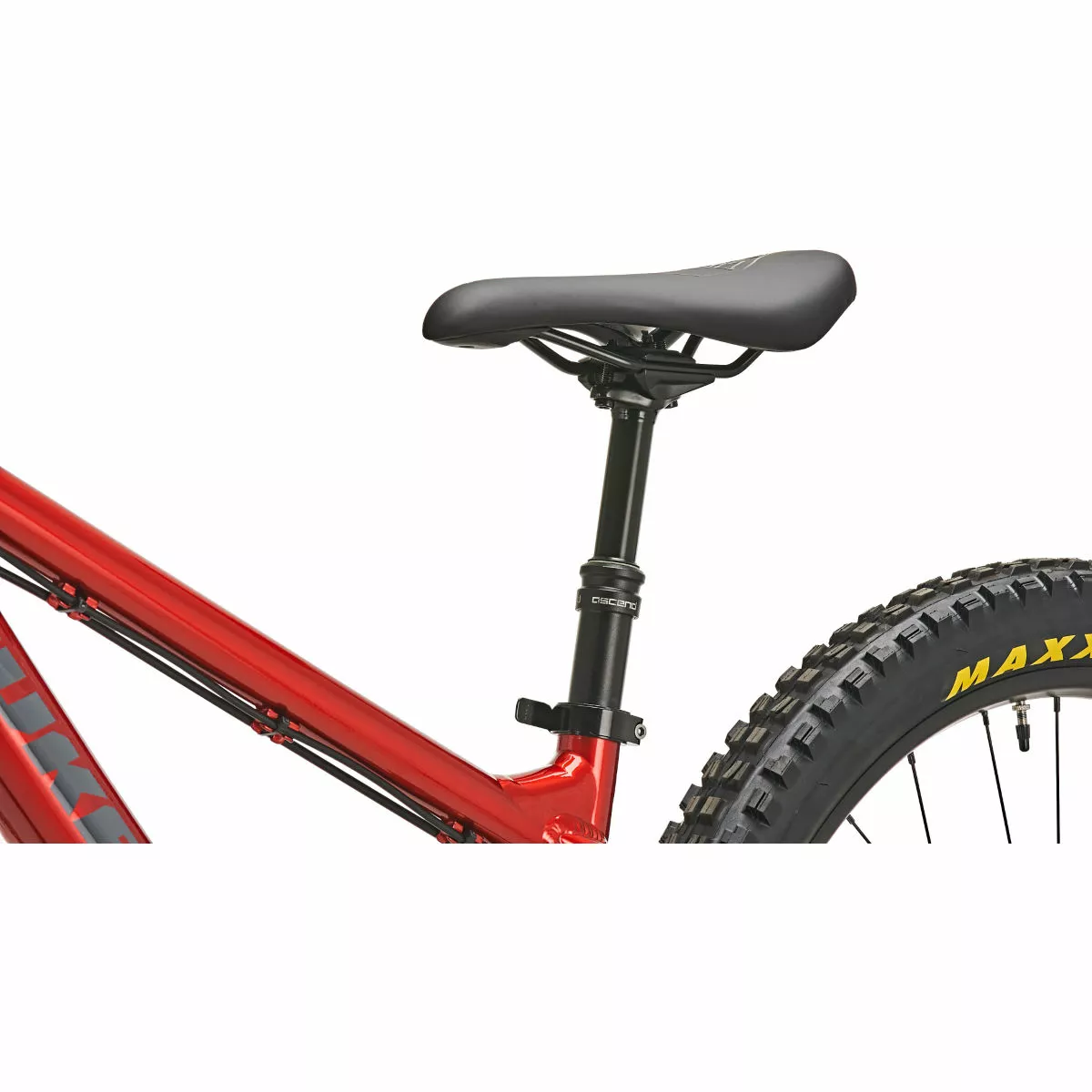

Seatpost: Brand-X Ascend 27.2mmx315mm 70mm Drop
Headset: Nukeproof Warhead, ZS44 / ZS56
Grips: Nukeproof Urchin Single Clamp lock on, 132mm Long, Soft Compound
Weight: 12.62kg

Key Information:

Material: Hydroformed 6061 Triple-Butted Aluminium
Fork Travel: 120mm
Axle to Crown: 514mm
Fork Offset: 46mm
Wheels Size: 26″
Max Tyre Size: 2.6″
Sizing: One Size
Headtube: 44mm Semi-Integrated
Headset: ZS44-28.6 – T2 / ZS56/40 – B8 (For Tapered fork)
Seatpost: 27.2mm (Internal Routing for Dropper Seatpost)
Seat Clamp: 31.8mm
BB: Threaded 68mm BSA
Rear Hub: 142x12mm
Front Hub: 110x15mm
Rear Axle: M12*1.5 Thread x168mm (Thread Length 17mm)
Front Axle: Included with fork
Chain Guide: ISCG05
Brake Mount: 160mm Direct Post
Protection: Kevlar Chainstay Protector

Built, Tuned and Ready to Ride

Rest assured that each bike is fully built and tuned by Wiggle’s team of qualified bike mechanics to ensure your bike arrives in perfect condition. We supply all bikes with a set of plastic pedals, a pedal wrench and a multi-tool kit. Find out which size fits you by clicking the size chart tab.

Please Note: Due to ongoing issues in the global bike supply chain, manufacturers may substitute certain component items due to availability. In this situation, they will be replaced with the same quality or better performing parts.

Note: Manufacturer may reserve the right to change the specification of that listed or shown on this page.
