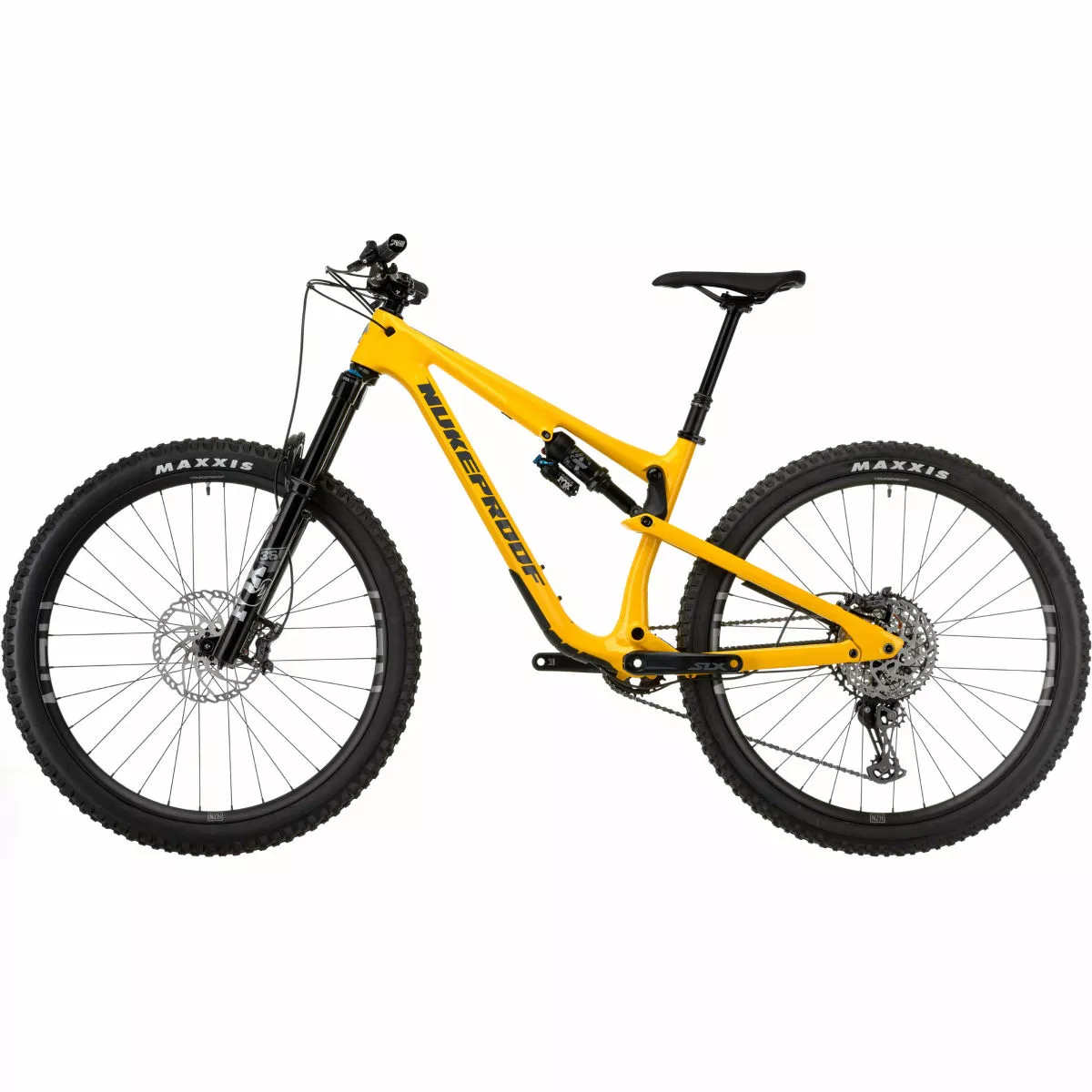

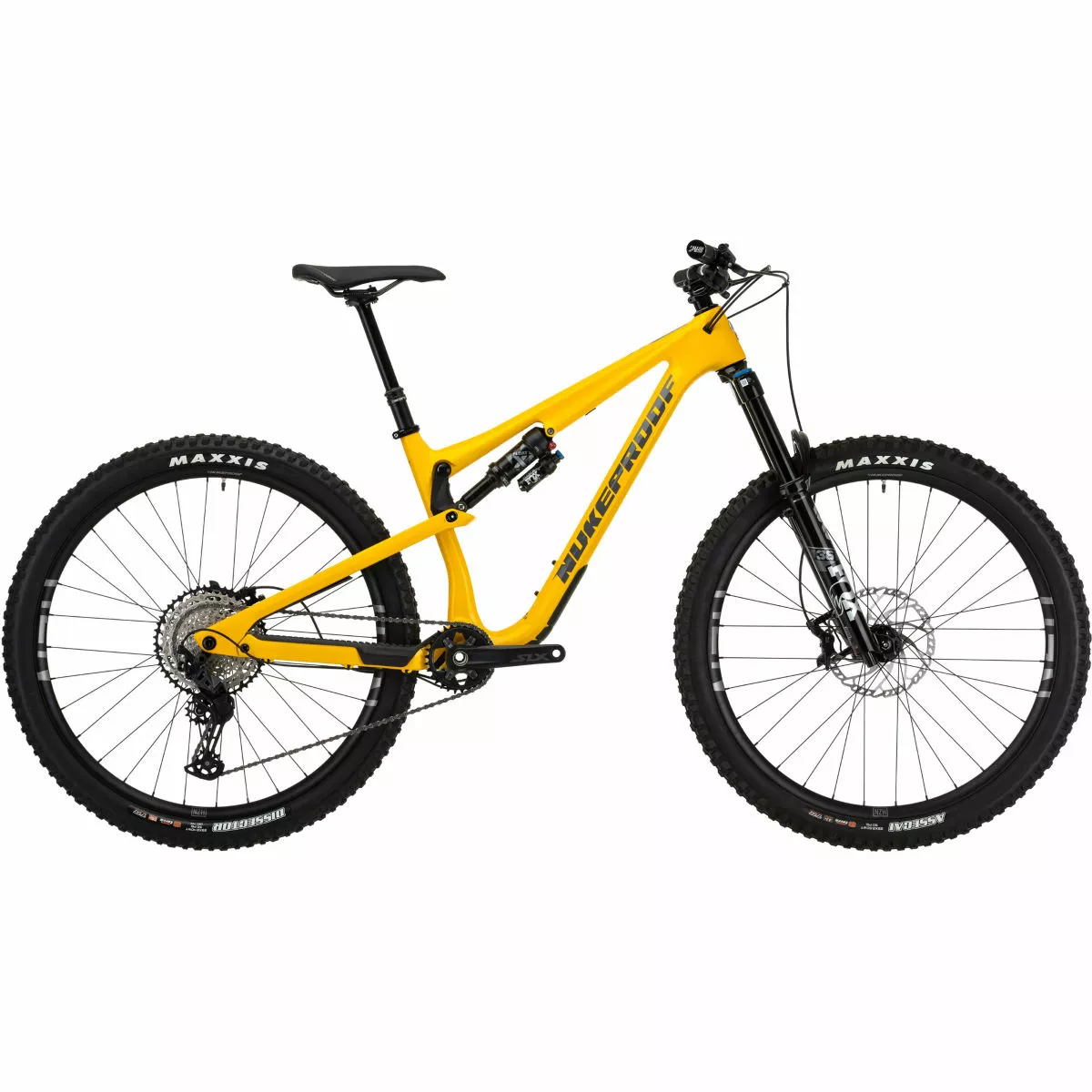

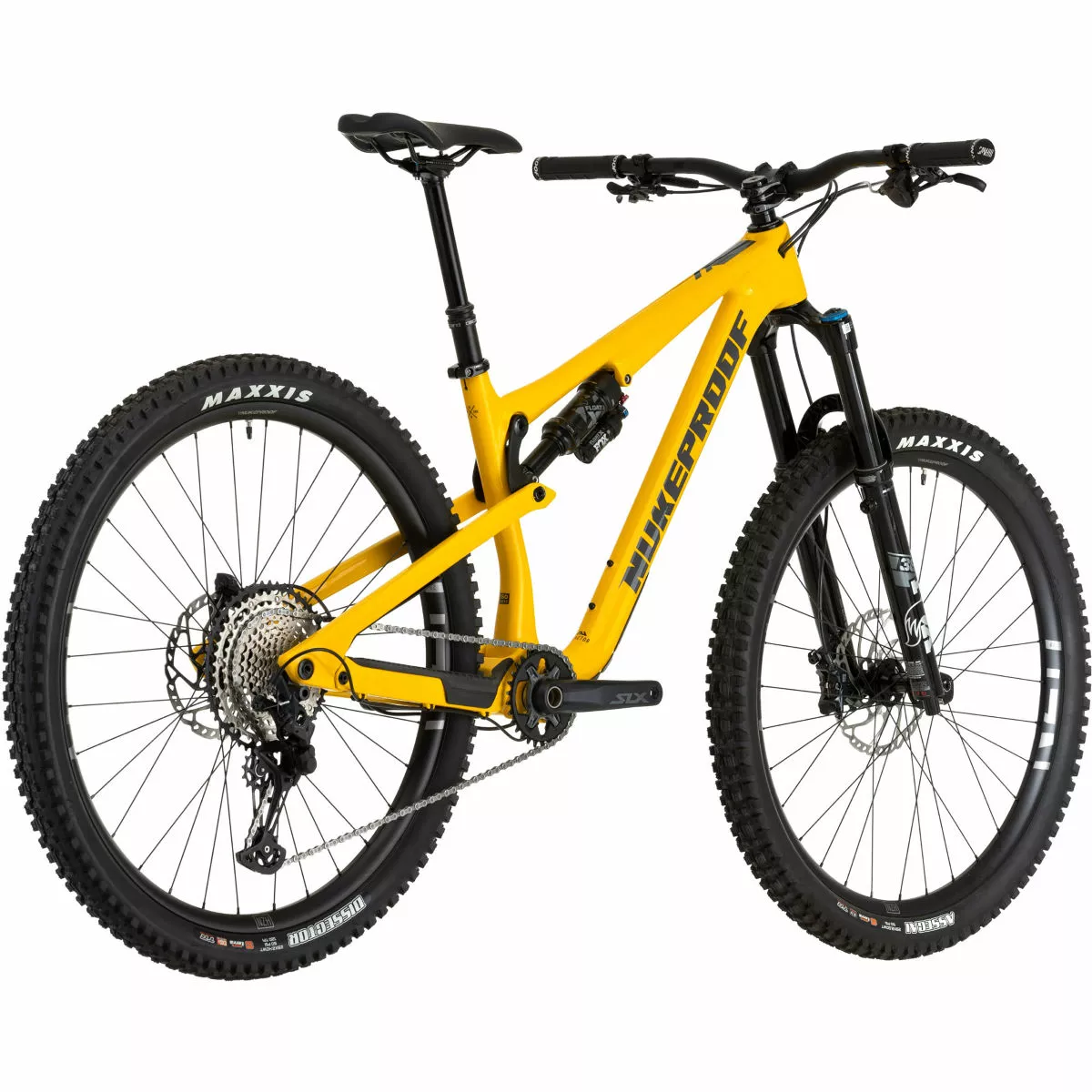

Nukeproof Reactor 290 Elite Carbon Bike (SLX)

From concept through to design, the Kinematics, the geometry and specification; the Reactor is designed from the ground up to be the ultimate aggressive trail bike. It is at home on technical climbs, but happiest when thrashing the most technical trails you can point it at.

Frame Construction:

To optimise the weight, strength and stiffness, the Reactor Carbon frame features a full UD woven carbon fibre frameset (Including chain and seat stays). It is available for 27.5” or 29” wheel sizes. These are two totally different, compromise-free frames that were designed and developed at the same time.  Each frame is simply tailored around each wheel size.

Speed or play: which do you value more? The manoeuvrability of 27.5” or the raw speed of a 29”?

Adjustable Geometry:

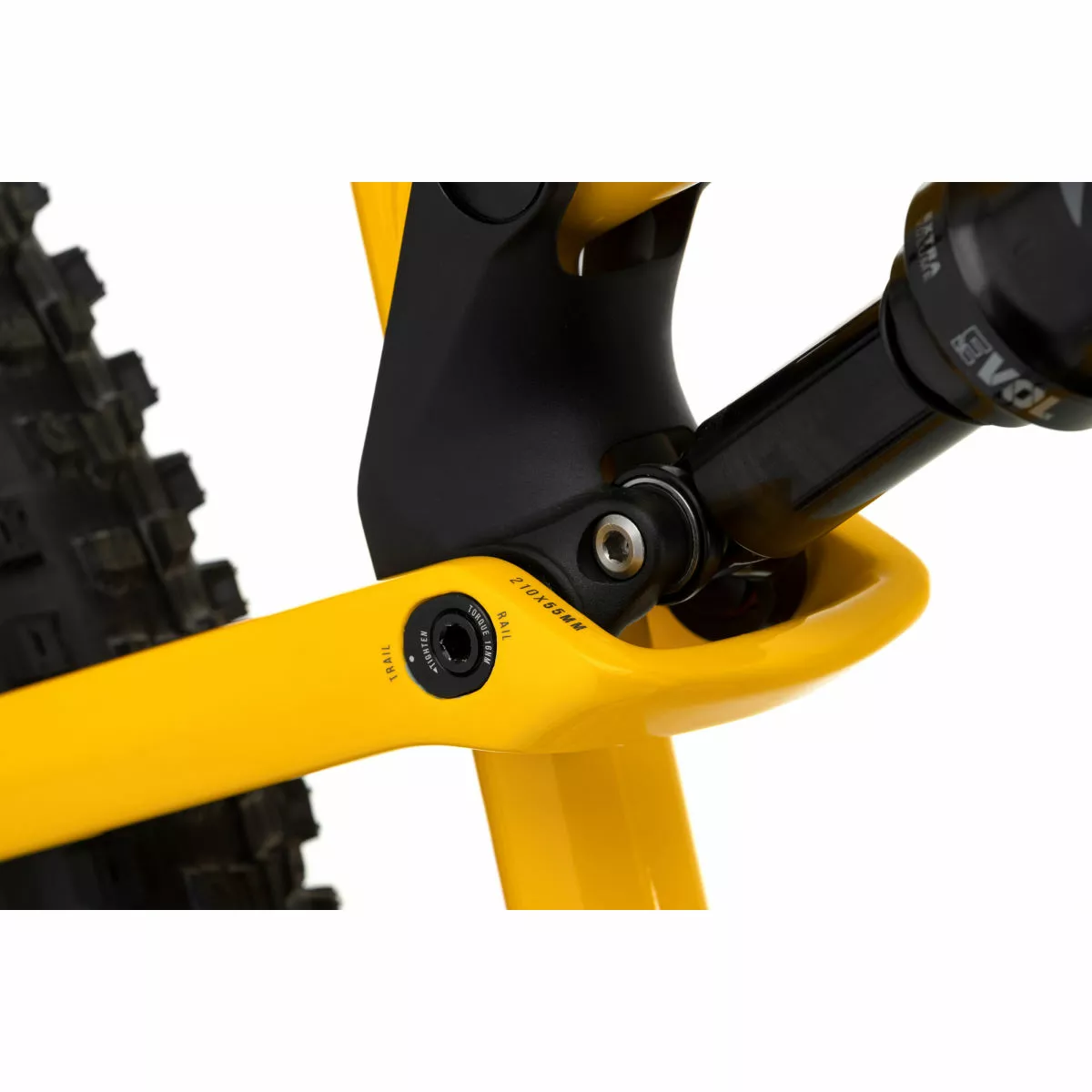

All Reactor frames feature a “flip chip” to adjust the geometry from “Trail” to “Rail mode”.

Trail – As the name suggests, this setting is best suited for trail riding. It is for riders who get as much enjoyment from the climb as the descents.

Rail – The Rail setting turns the Reactor into a corner shredder, dropping the bottom bracket 6mm and slackening the head angle by half a degree. It is there to maximise the descending capabilities.

Suspension Design:

To ensure the bike could climb as well as it descends, Nukeproof designed the 4-bar horst linkage to have higher levels of anti-squat for climbing gears but lower levels when you drop down the cassette. This means that the bike can behave itself on the climbs but when you get it up to speed, it turns into a trail hooligan. The combination of low anti-squat and progressive rate give ultimate small bump compliance (removes rough trail and root chatter) with good mid stroke support for cornering/pumping and end stroke progression for aggressive riding. Balanced anti-rise figures allow the Reactor some squat when braking hard, maintaining rider position and providing a good amount of pressure through the tyre to ensure traction. The Reactor is designed to reward the rider and ensure you get that stoke factor in on any ride.

Full Specification List:

• Frame: Nukeproof Reactor 290 Carbon, 130mm Travel, UD woven Carbon Fibre frame, internal cable routing, ISCG 05 mounts, Enduro bearings, Threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured rubber frame protection

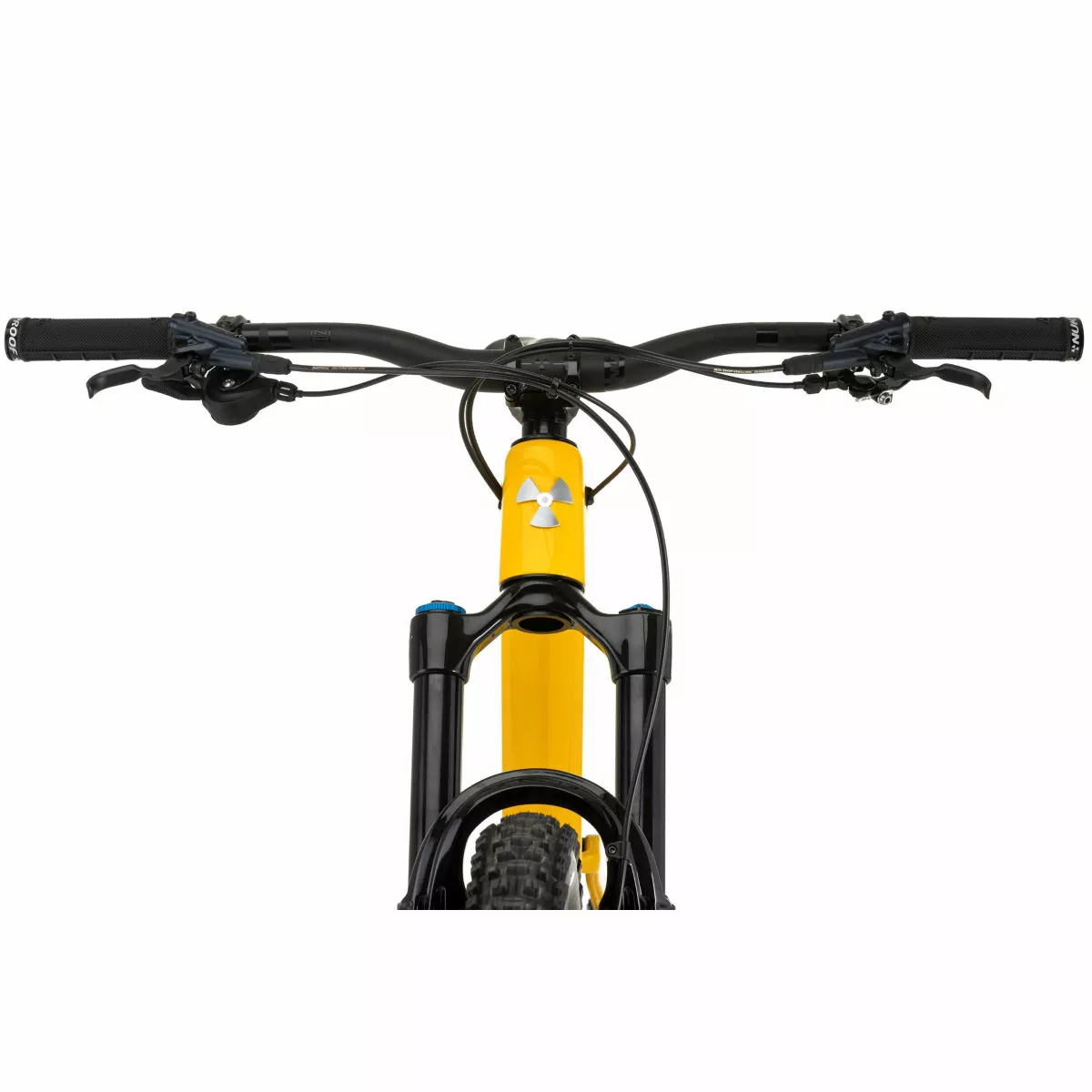

• Fork: Fox 36 Float, Performance Elite Series, Grip 2 Damper, 150mm, 44mm Offset, BOOST, Black

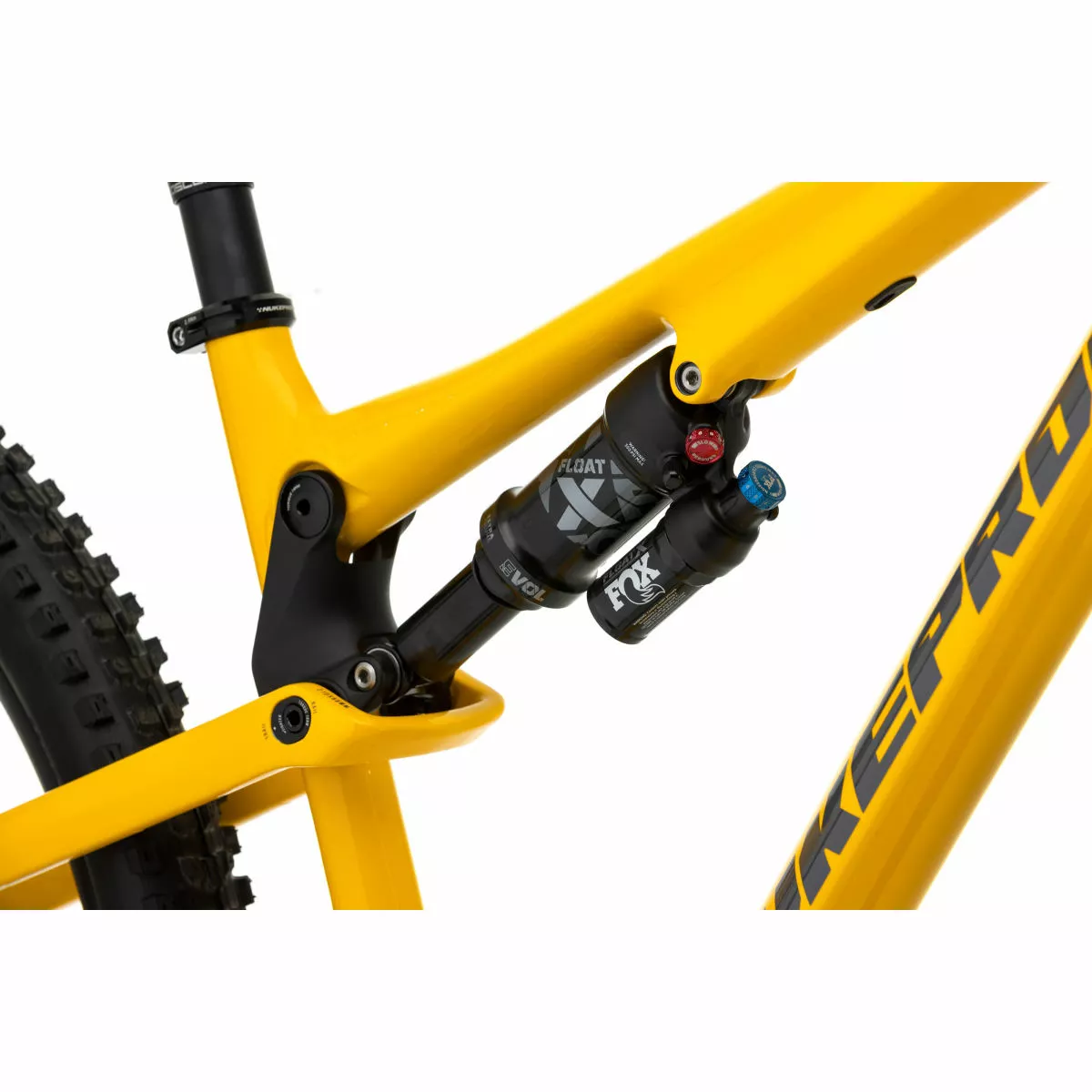

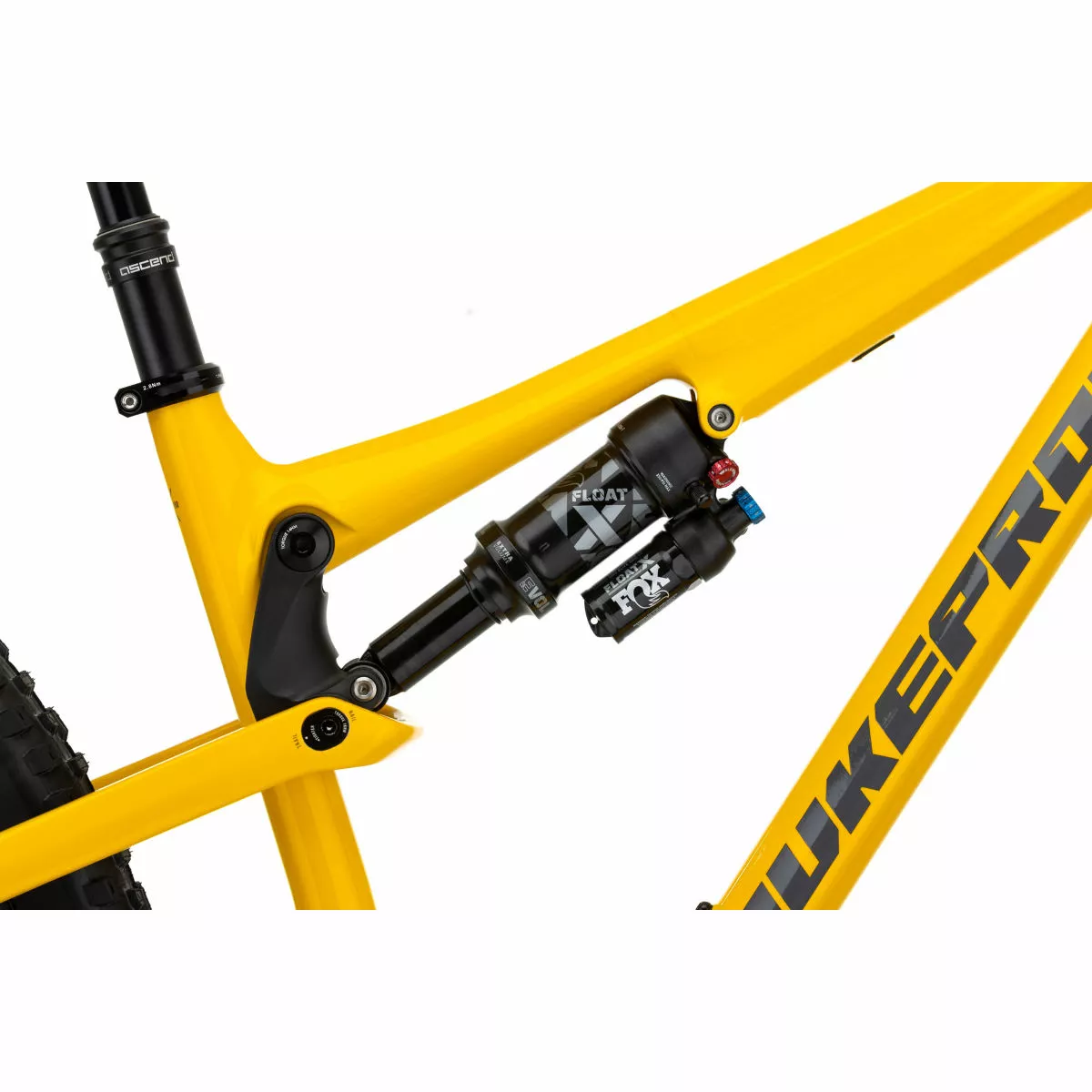

• Shock: Fox Float X, Performance Elite Series, 2 Position, LV EVOL, Custom CM+, RM, Rezi LM tune, 210x50mm, Bearing End, 1x 0.2 spacer fitted.
• Front Wheel: Nukeproof Horizon V2 29″, 6 Bolt, 110x15mm
• Rear Wheel: Nukeproof Horizon V2 29″, 6 Bolt, Shimano Microspline Driver, 148x12mm
• Tyres: Front: Maxxis Assegai 29×2.5″ WT 3C MaxxTerra/EXO+/TR, Rear: Maxxis Dissector 29×2.4″ WT 3C MaxxTerra/EXO+/TR

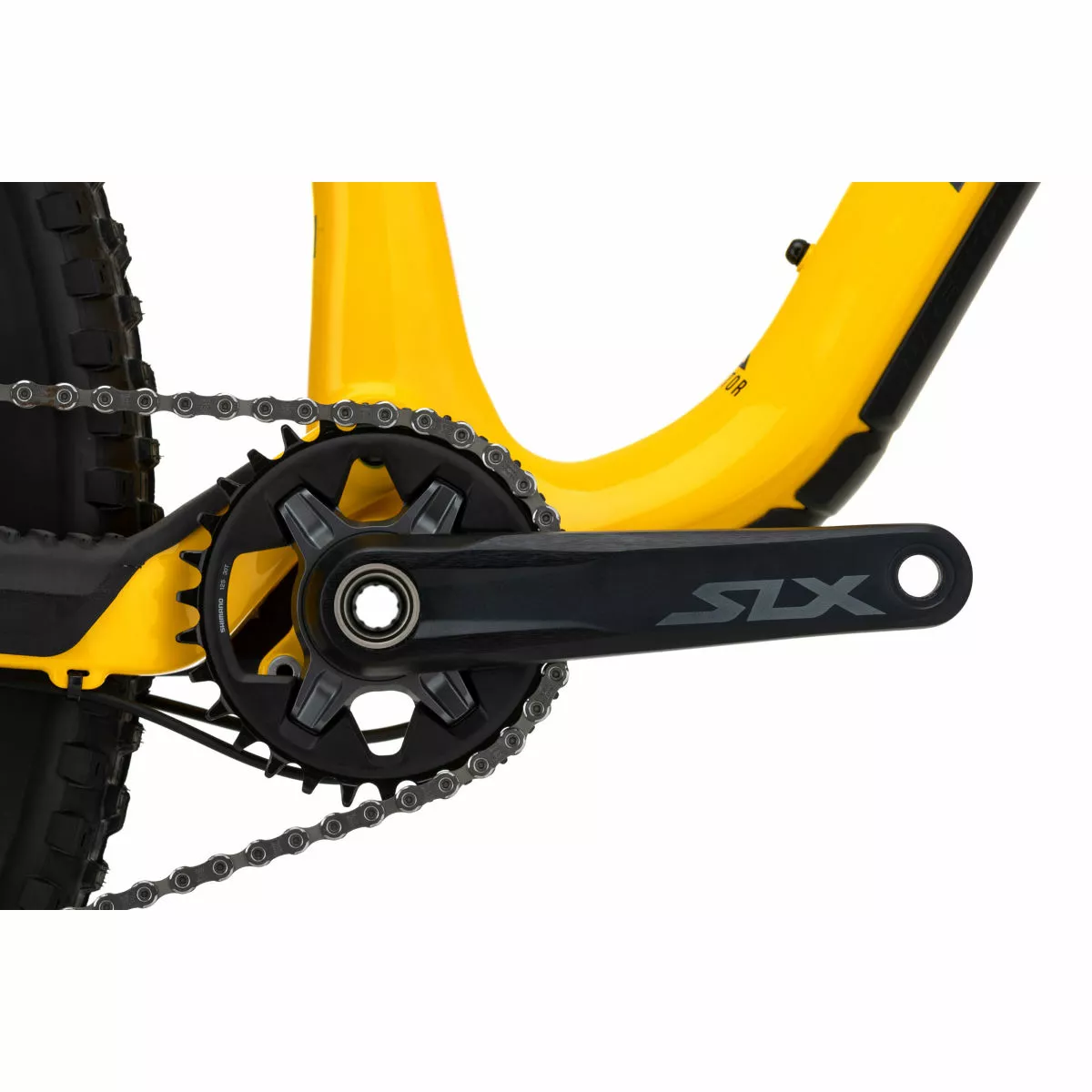

• Crankset: Shimano SLX M7100 12-Speed, Hollowtech 2, 170mm, 30T, 52mm Chainline
• Shifter: Shimano SLX M7100-IR, 12-speed Rapidfire Plus, I-Spec EV

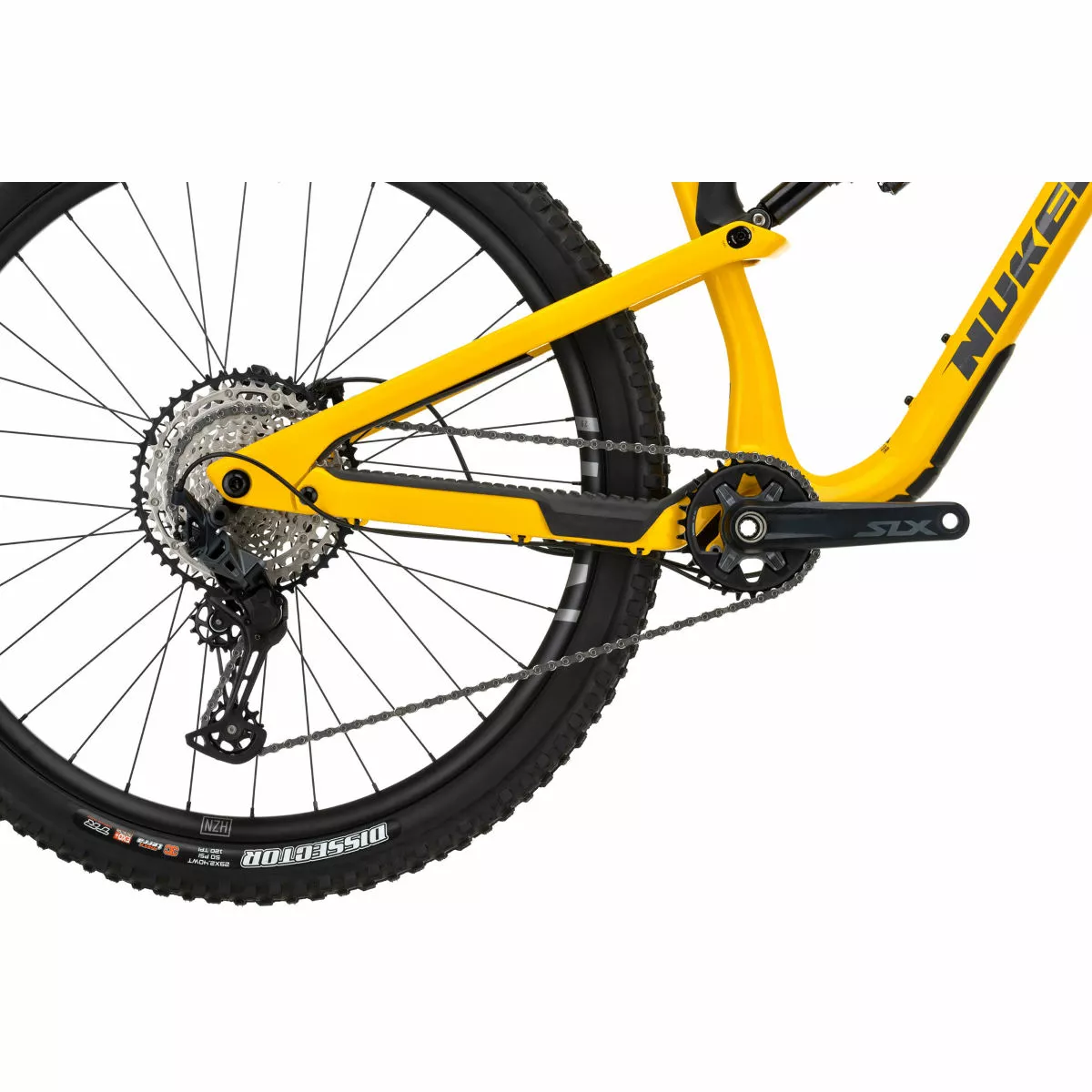

• Rear Derailleur: Shimano SLX M7100, SGS 12-Speed, Shadow Plus
• Chain: Shimano SLX M7100 HG 12-speed Inc Quicklink
• Cassette: Shimano SLX M7100-12, 12-Speed (HYPERGLIDE+), 10-51T
• Brakes: Shimano SLX M7120, 4 Pot Brake, Metallic Pads
• Front Rotor: Brakco, 203mm
• Rear Rotor: Brakco, 180mm

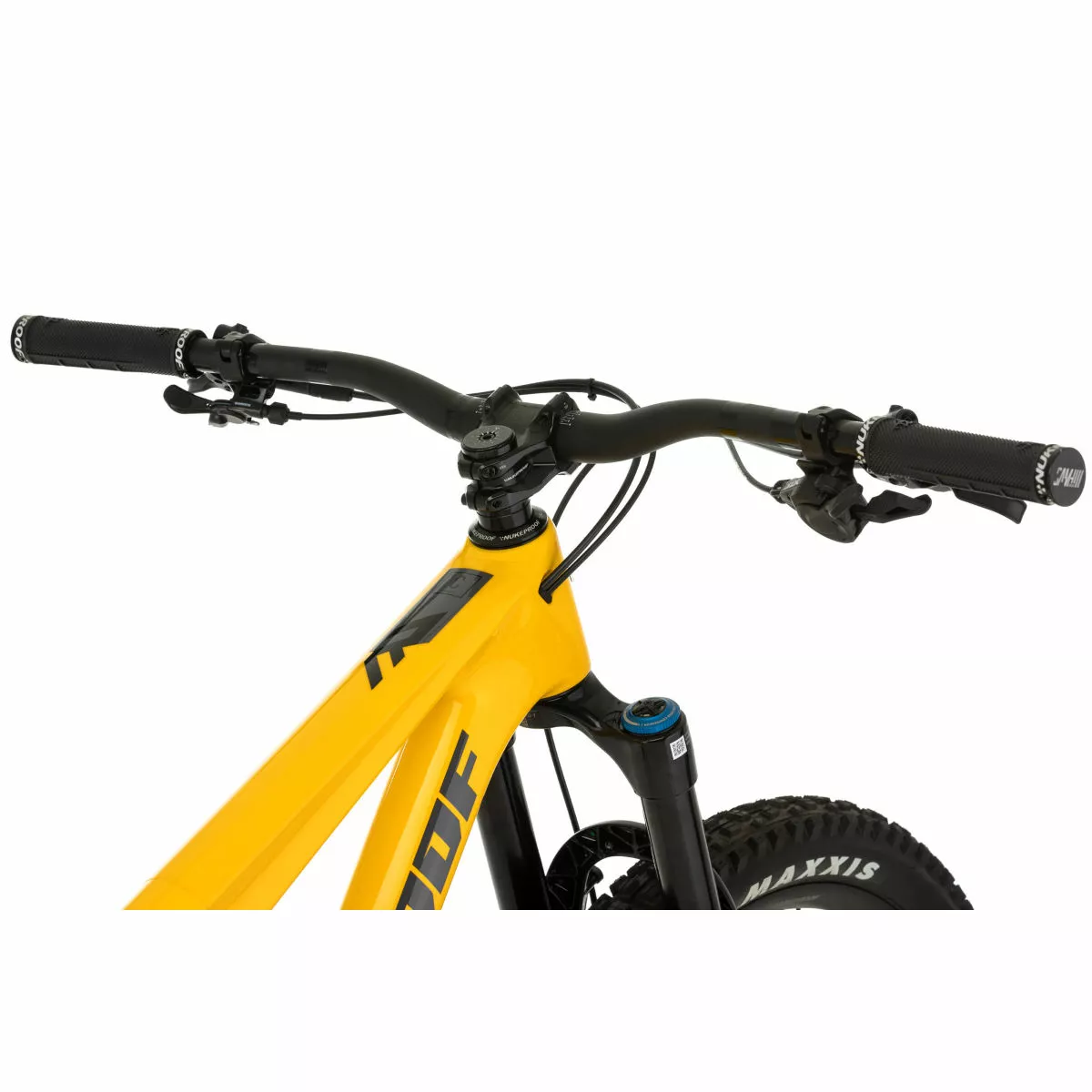

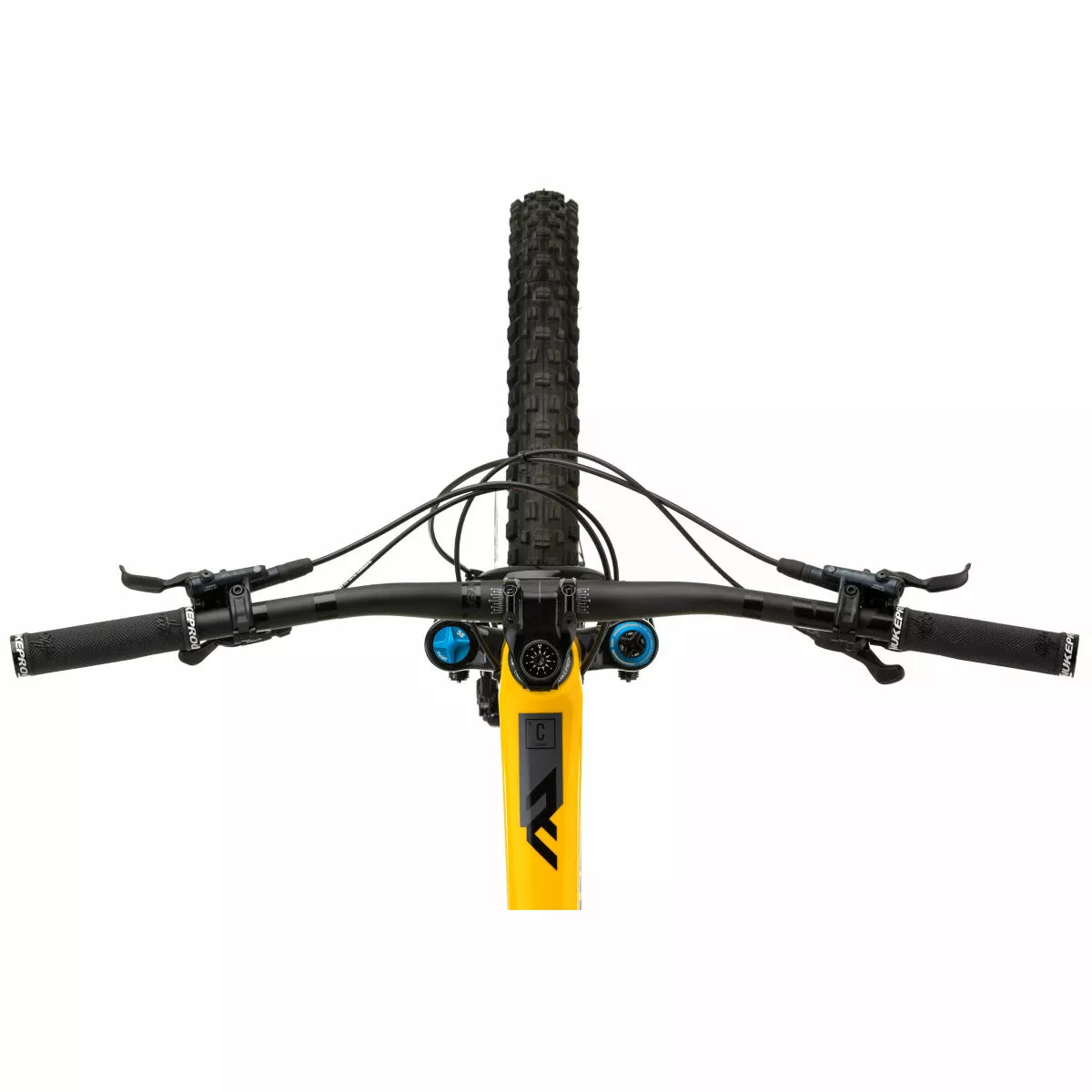

• Handlebars: Nukeproof Horizon V2 25mm Rise, Width – M780mm, L800mm, XL800mm
• Stem: Nukeproof Horizon, 45mm, Black
• Saddle: Nukeproof, Black

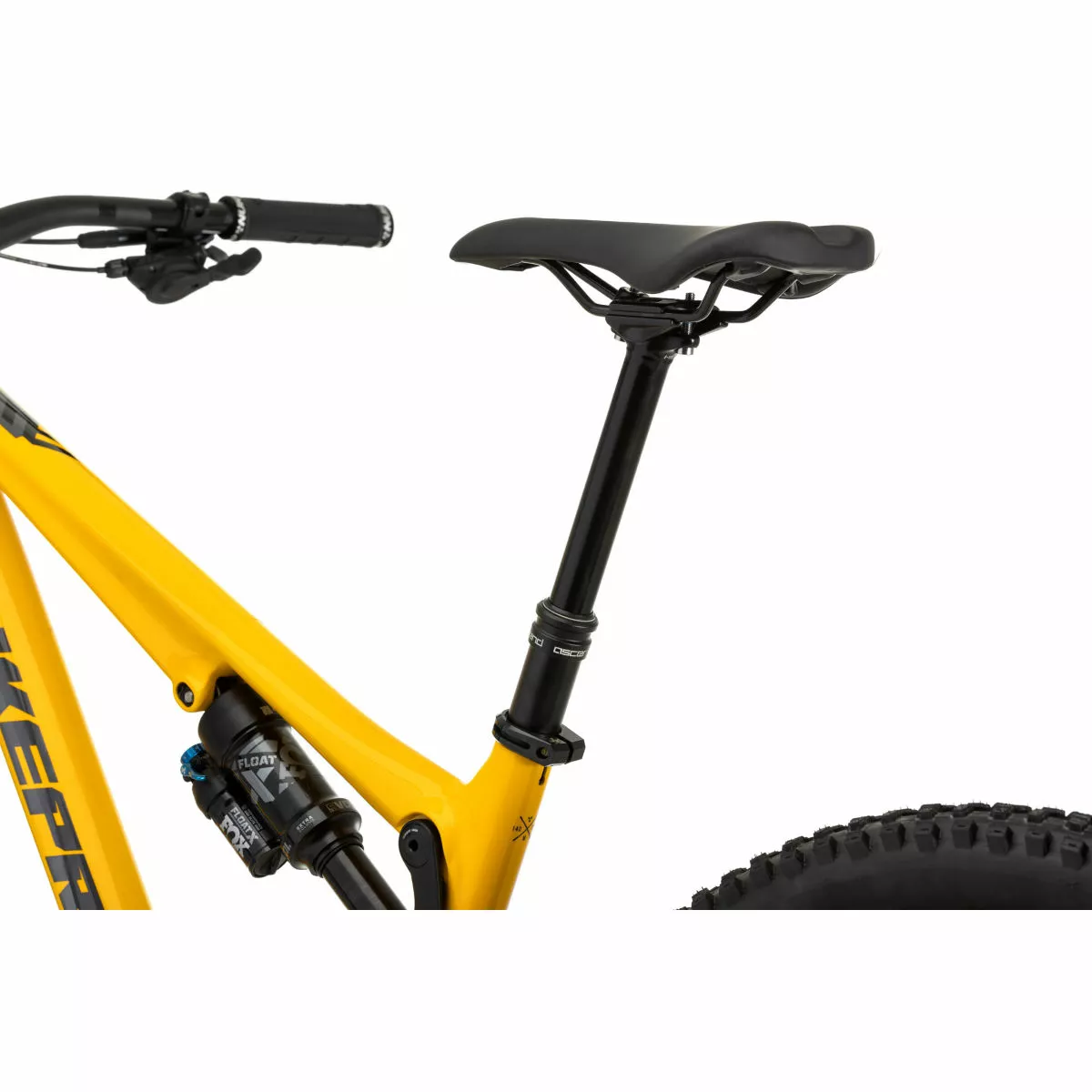

• Seatpost: Brand-X Ascend internal with Brand-X Remote lever, M:150mm drop; L:170mm drop; XL:200mm drop
• Headset: Nukeproof, 44-56 IITS
• Grips: Nukeproof Sam Hill Signature
• Weight: 14.66kg (Medium, Tubeless)

Please Note: Due to severe delays in the bicycle supply chain, Nukeproof has been forced to make some alterations to the specification of the component parts supplied with this bicycle. As a result, the specification may differ from those shown in the images. Please refer to the specification table above for accurate information.

Key Specifications:

Material: Ultra Strong T700/800 Monocoque Carbon Fibre
Fork Travel: 150mm
Axle to Crown: 557mm
Fork Offset: 44mm
Rear Travel: 130mm
Wheels Size: 29″
Max Tyre Size: 2.6″
Recommended Shock Sag (Measured seated): 30%
Shock Size: 210x50mm
Shock Hardware F: 25x8mm
Shock Hardware R: 30x8mm
Sizing: M/L/XL

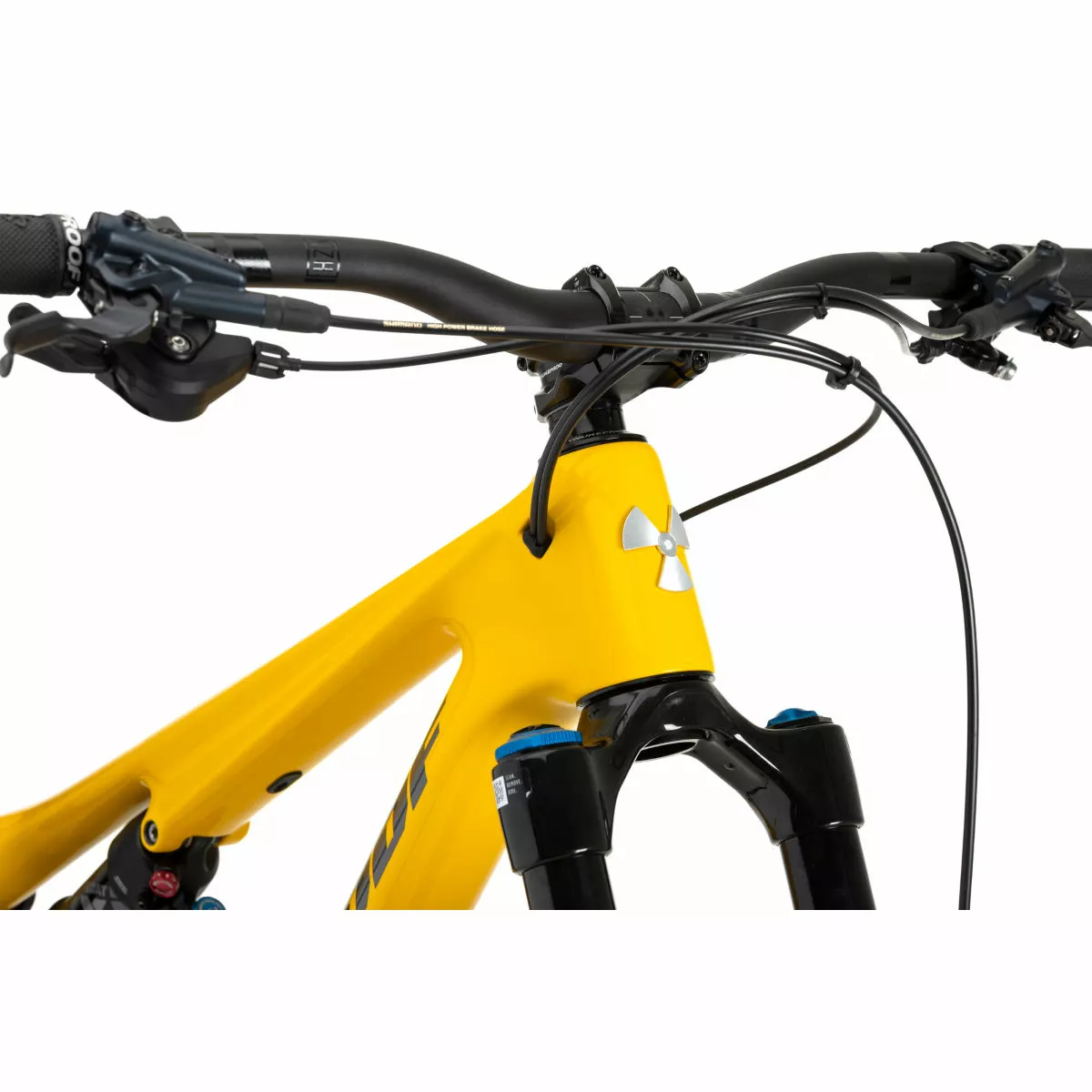

Headtube: 44-56mm Tapered Semi-Integrated
Headset: ZS44-28.6 – T2 / ZS56/40 – B8
Bearings Required: 2x (6902 2RS), 4x (6800 2RS), 4x (6901 2RS)
Seatpost: 31.6mm (Internal Routing for Dropper Seatpost)
Seat Clamp: 36.4mm
BB: Threaded 73mm BSA
Rear Hub: Boost 148x12mm
Rear Axle: Sram Maxle Stealth M12x1.75 180mm (Thread Length 20mm)
Chain Guide: ISCG05
Brake Mount: 180mm Direct Post

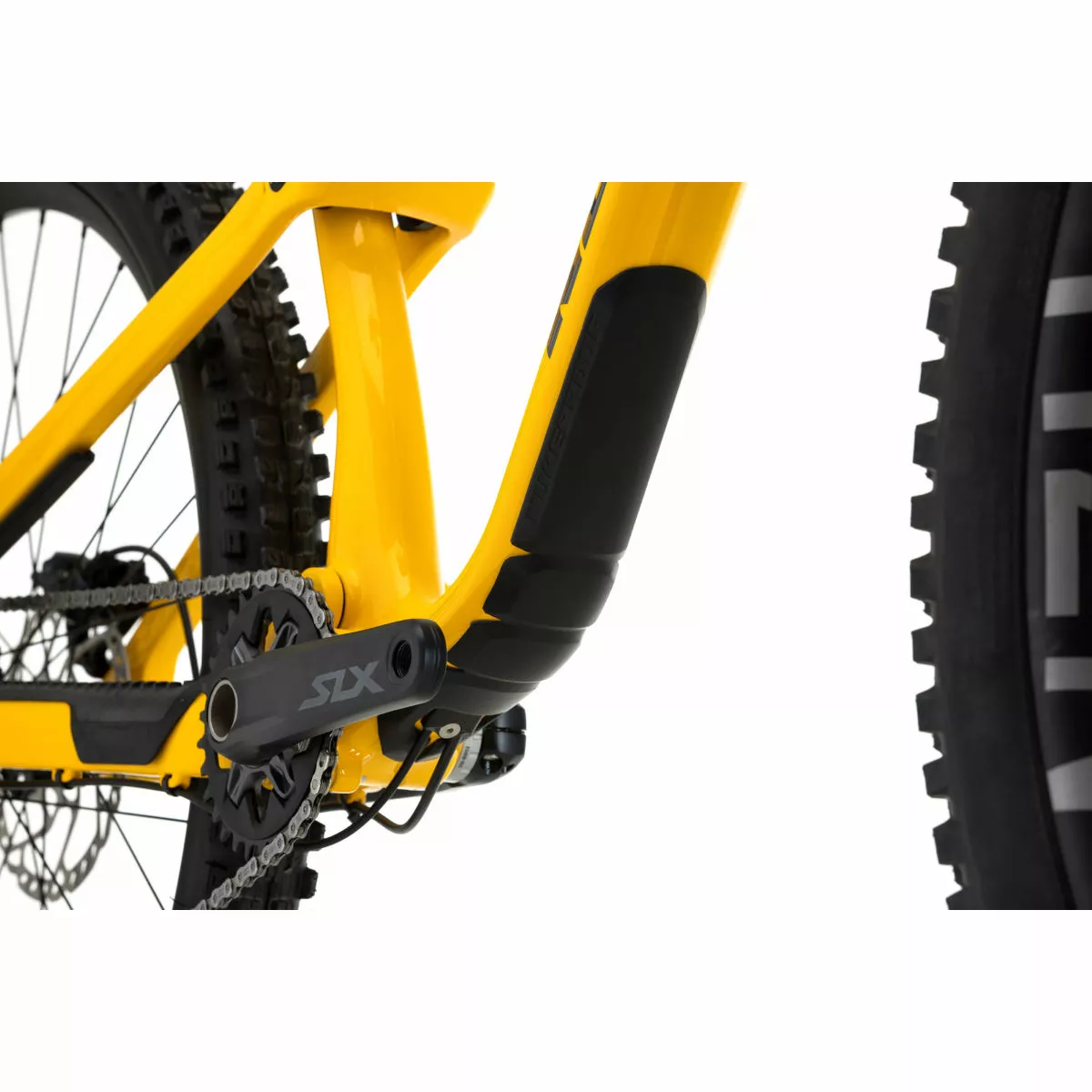

Protection: 3D Contoured Rubber Frame Protection for DT/SS/CS

Built, Tuned and Ready to Ride

Rest assured that each bike is fully built and tuned by Wiggle’s team of qualified bike mechanics to ensure your bike arrives in perfect condition. We supply all bikes with a set of plastic pedals, a pedal wrench and a multi-tool kit. Find out which size fits you by clicking the size chart tab.

Note: Manufacturer may reserve the right to change the specification of that listed or shown on this page.
