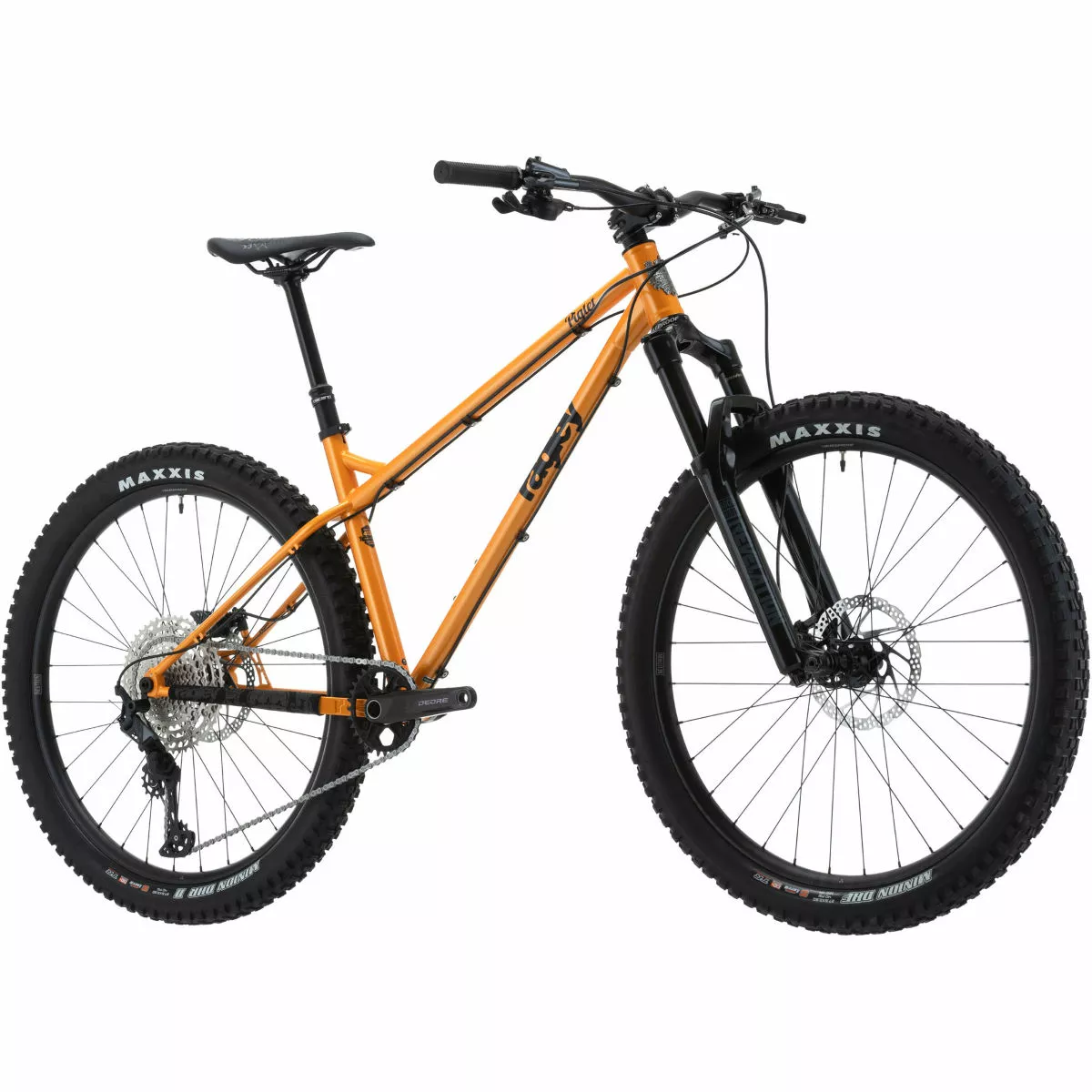

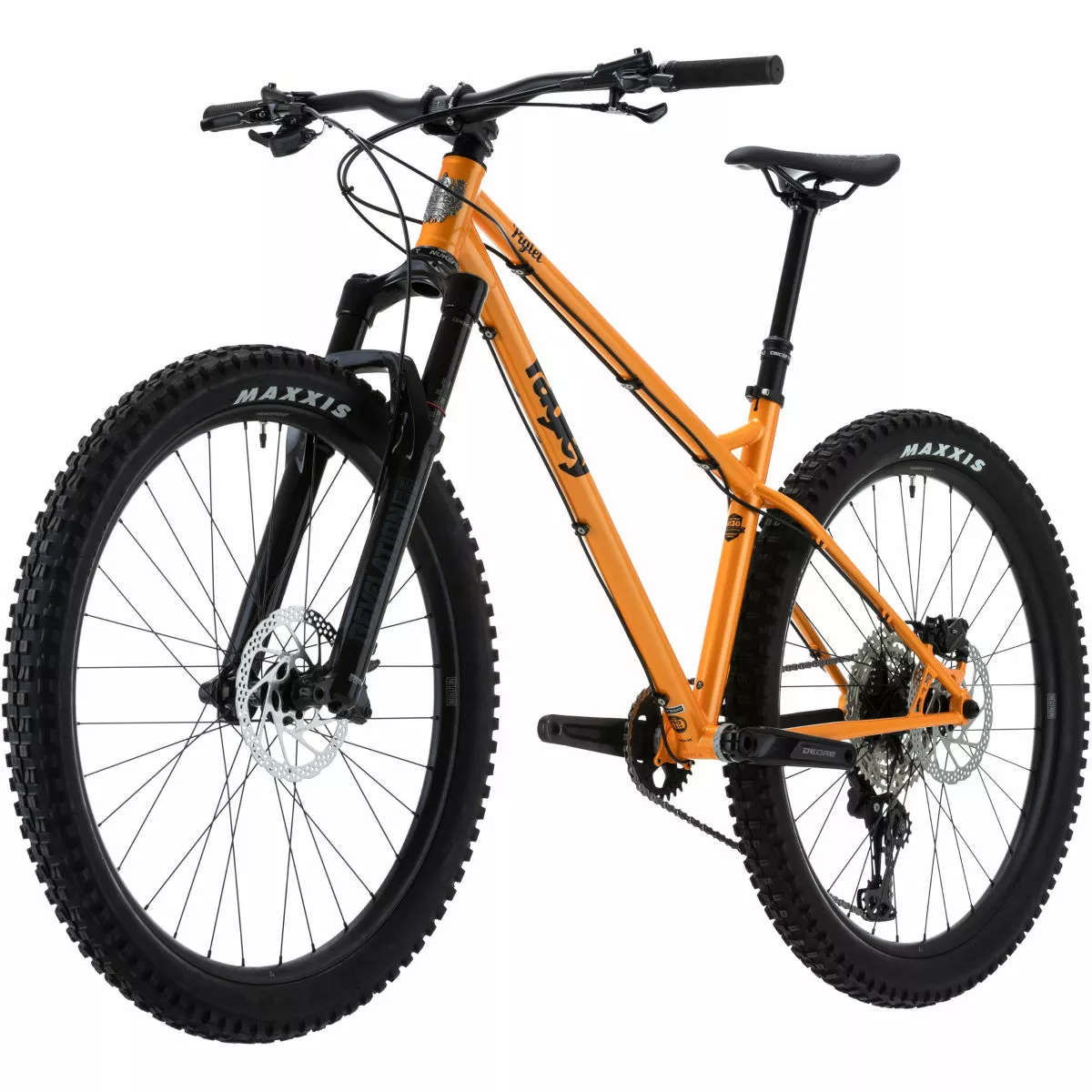

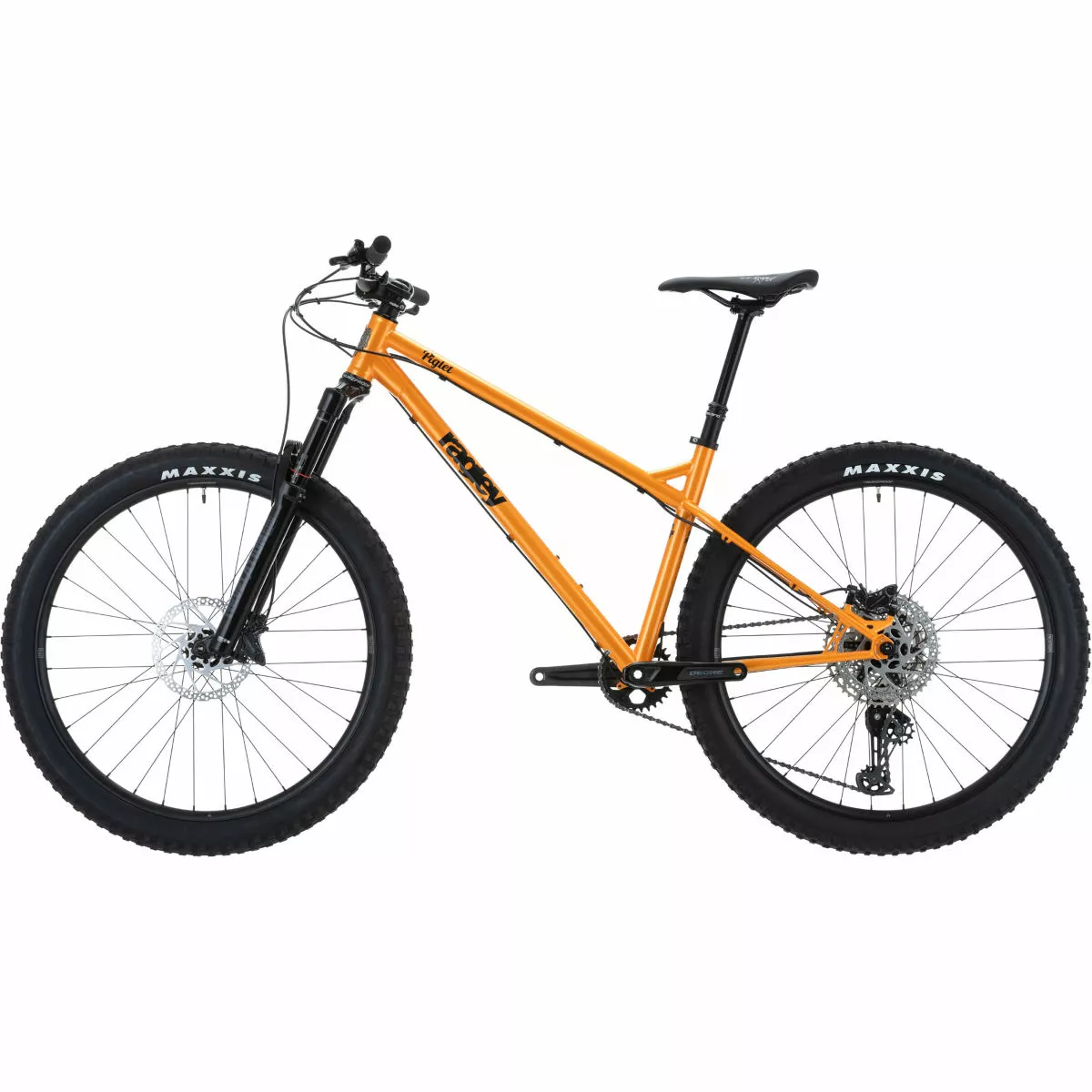

Ragley Piglet Hardtail Bike – Orange

The Piglet features a robust but lightweight Chromoly (CrMo) frame equipped with 130mm-travel RockShox Revelation RC forks, this bike offers exceptionally responsive performance and compliance as you boost, flow and carve your style into the mountainside.

Ragley has also fitted with a Shimano SLX 1×12-Speed groupset with a wide-ranging 10-51T cassette and hydraulic disc brakes that give you superb pedalling efficiency and outstanding braking performance anywhere in the hills.

The Piglet sounds like an underdog. It’s shorter travel than the Blue Pig and shares its geometry with the more trail-friendly Marley. But make no mistake, this Piglet is a special breed.

The triple-butted 4130 CrMo frame tubes supply the compliance for all-day comfort but enough spring to make it a trail sniper’s dream on tight and twisty singletrack.

Engaging, lively and accurate, the Piglet is a joy for all-day epics, smashing laps around the local woods or carving up the trail centres. The frame features all the modern standards, including ISCG 05 chain guide tabs and Boost 148×12 axle spacing.

Equipped with a mix of Shimano’s 12-speed Deore/SLX parts including the 4-piston brakes. Nukeproof then provide the wheels with the Tubeless Ready rims shrouded by Maxxis 3C EXO+ rubber. No upgrades are needed.

The Ragley Piglet Hardtail Bike exists so you can have more fun on the trails…

Features:

Frame: Ragley Piglet 27.5″ 4130 Chromoly (CrMo)

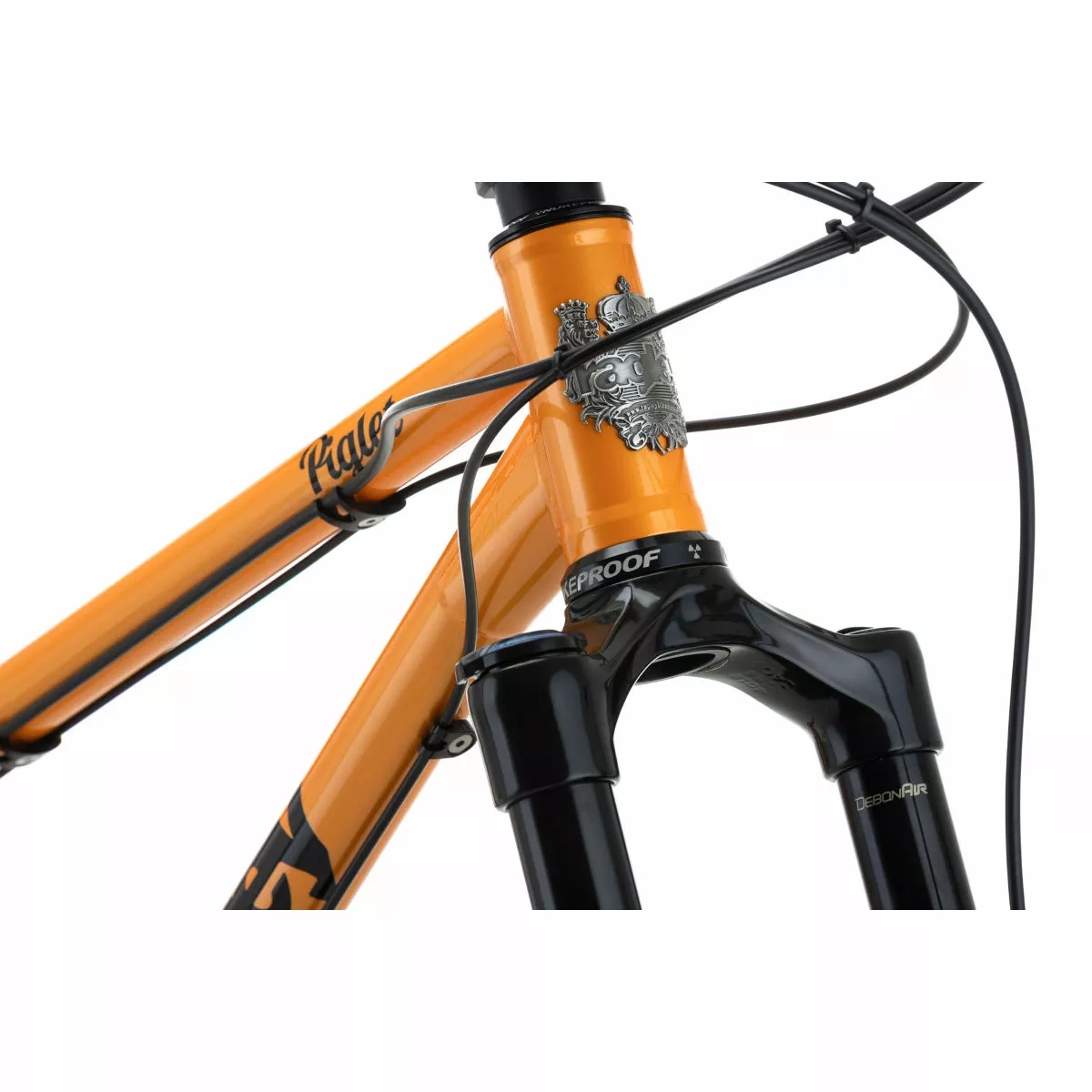

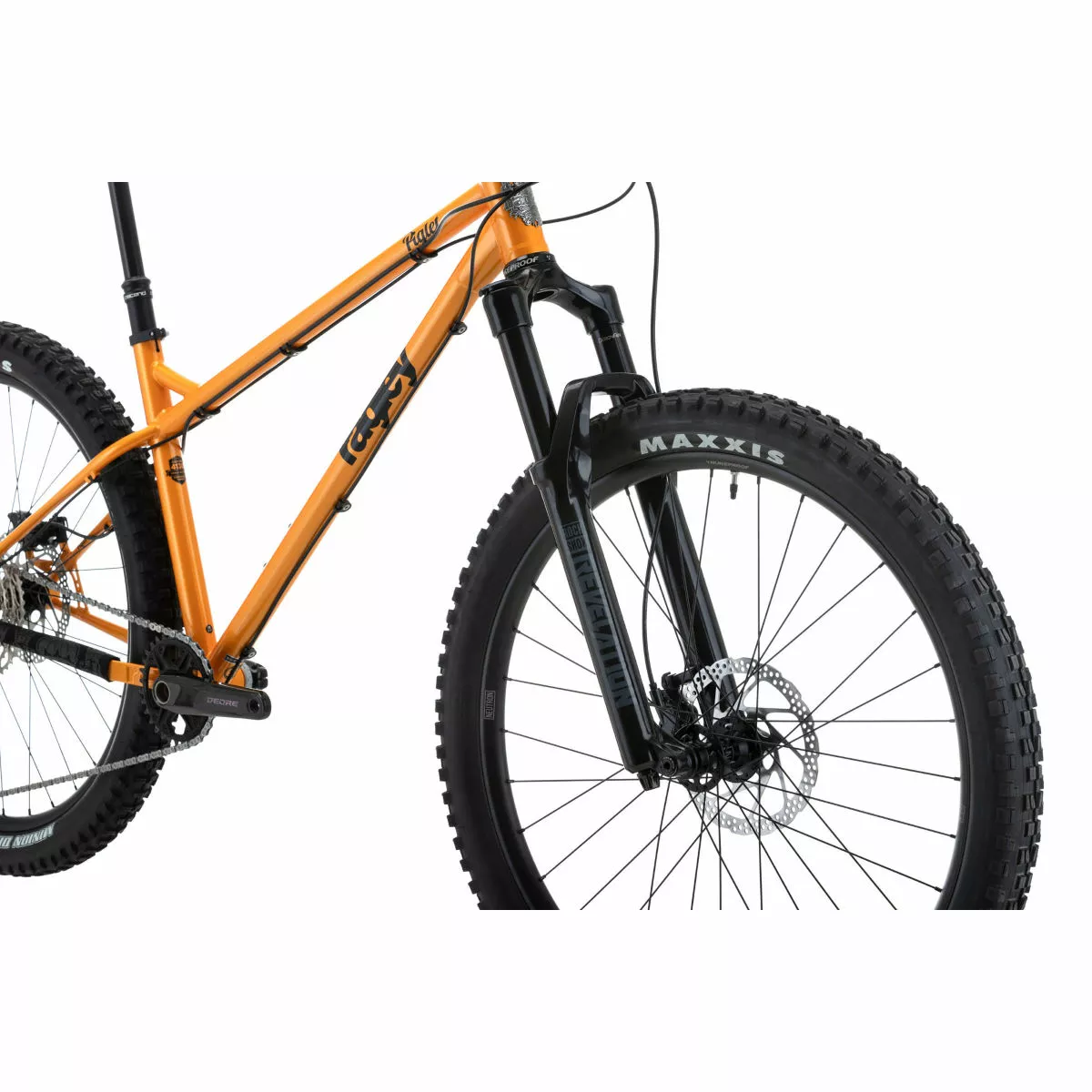

Fork: RockShox Revelation RC 130mm, 27.5″, 15×110 Boost, Stealth Maxle, 46mm Offset, 1.5″ Tapered Steerer
Headset: Nukeproof ZS44/28.6
EX44/40 with Ragley top cap

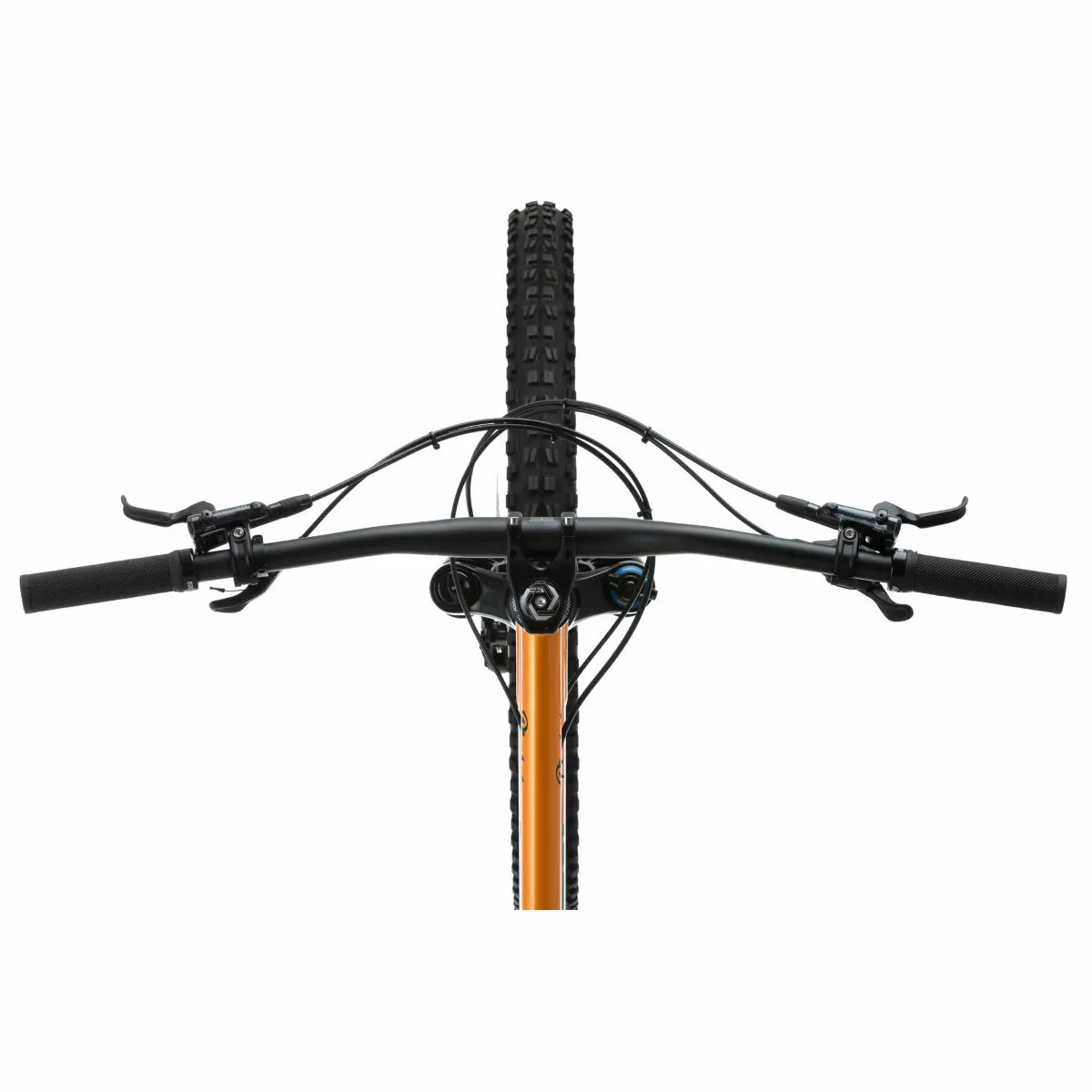

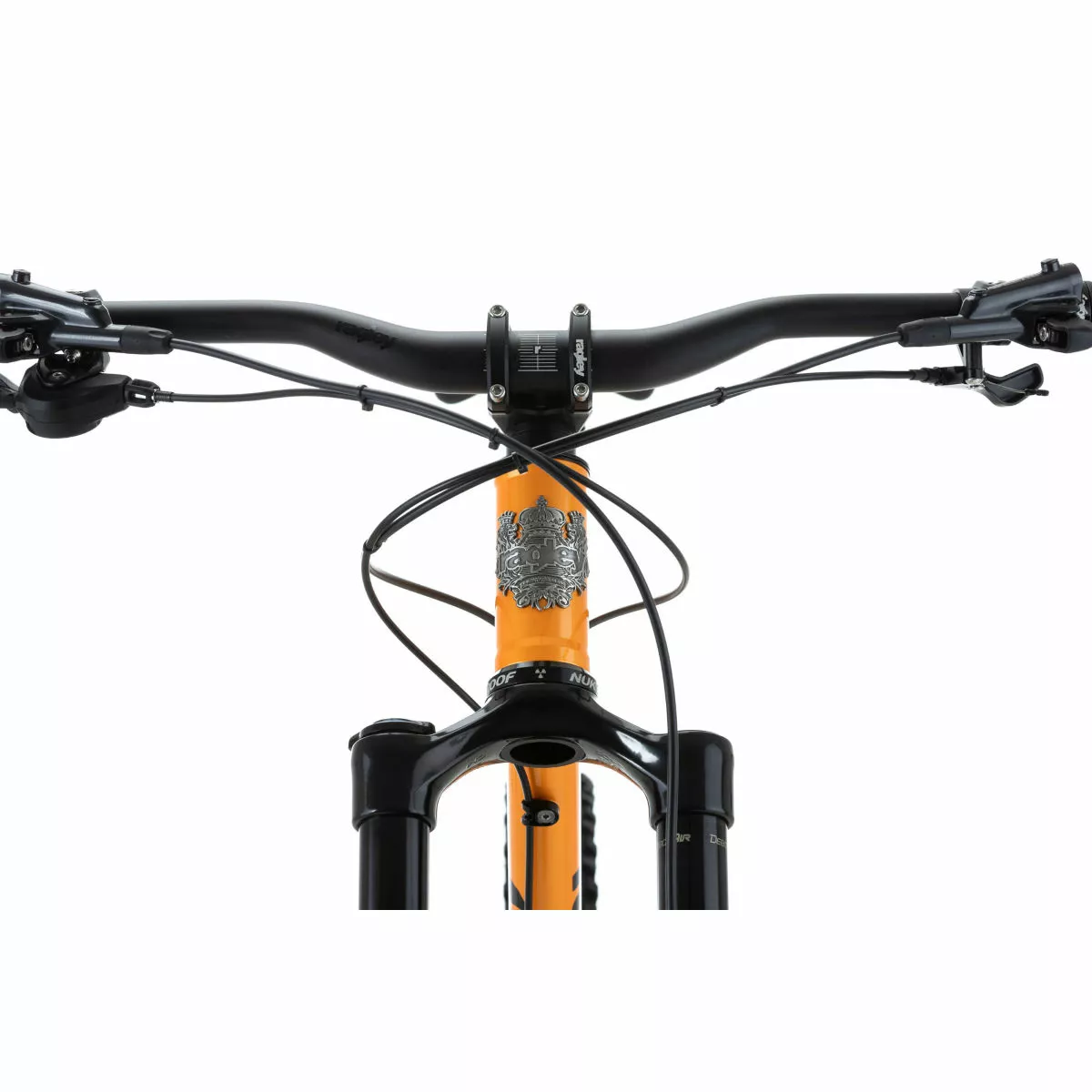

Handlebar: Ragley Alloy Handlebar, Black, 25mm Rise, 31.8mm Clamp (Width – S780mm, M780mm, L800mm, XL800mm)
Stem: Ragley Stubbing V2 50mm BLACK, 31.8mm clamp, Black
Grips: Ragley A20 Compound
Front Wheel: Nukeproof Neutron V2 27.5″ 32h 15mm x 110mm Boost
Rear Wheel: Nukeproof Neutron V2 27.5″ 32h 148mm x 12mm Boost Microspline, 36 points of engagement
Thru Axle: Length: 175mm, Pitch: M12*1.5, Thread length: 18mm
Front Tyre: Maxxis 27.5 x 2.6″ Minion DHF 3C MaxxTerra/EXO+/TR 120tpi
Rear Tyre: Maxxis 27.5 x 2.6″ Minion DHR 3C MaxxTerra/EXO+/TR 120tpi
Rim Tape and Valves: Nukeproof 33mm Tubeless Tape and Nukeproof Horizon Tubeless Valve Supplied
Chain: Shimano Deore CN-M6100 – 12-Speed

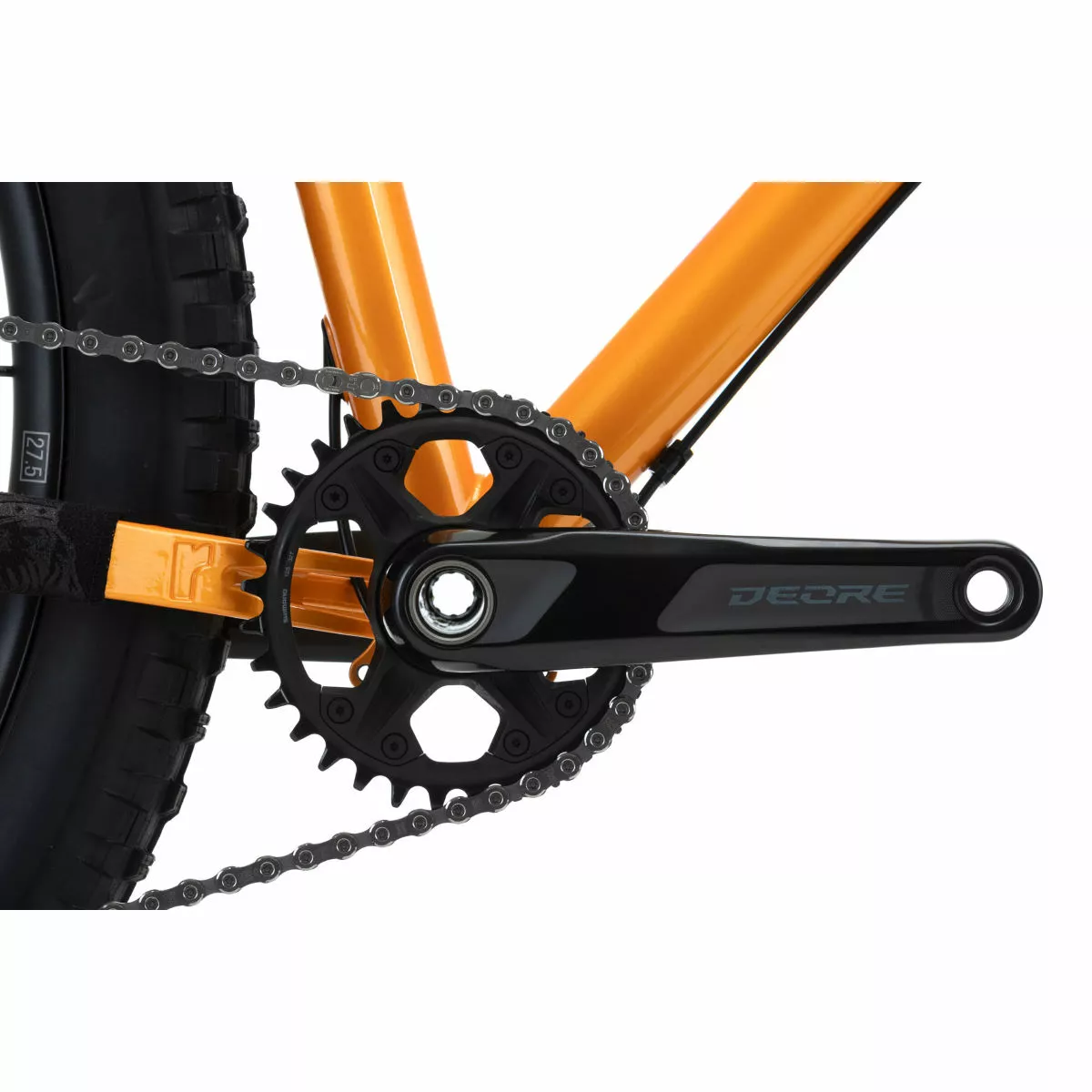

Crankset: Shimano Deore FC-M6100 12-Speed, 170MM, 32T
Bottom Bracket: Token 73mm BSA

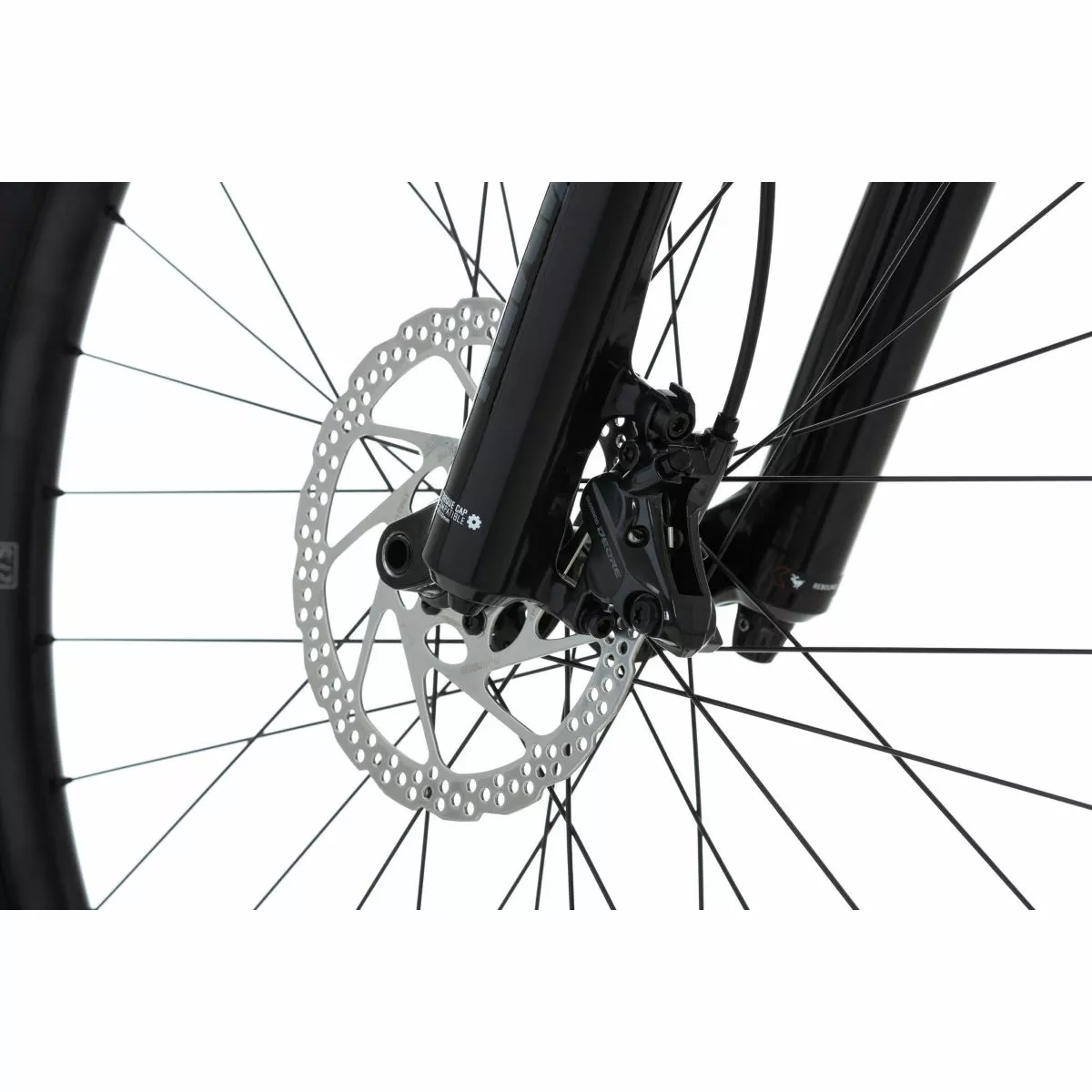

Front Brake: Shimano Deore – M6100 lever with M6120 Calliper, Resin pads, Brakco 180mm Rotor or SRAM DB8 hydraulic disc

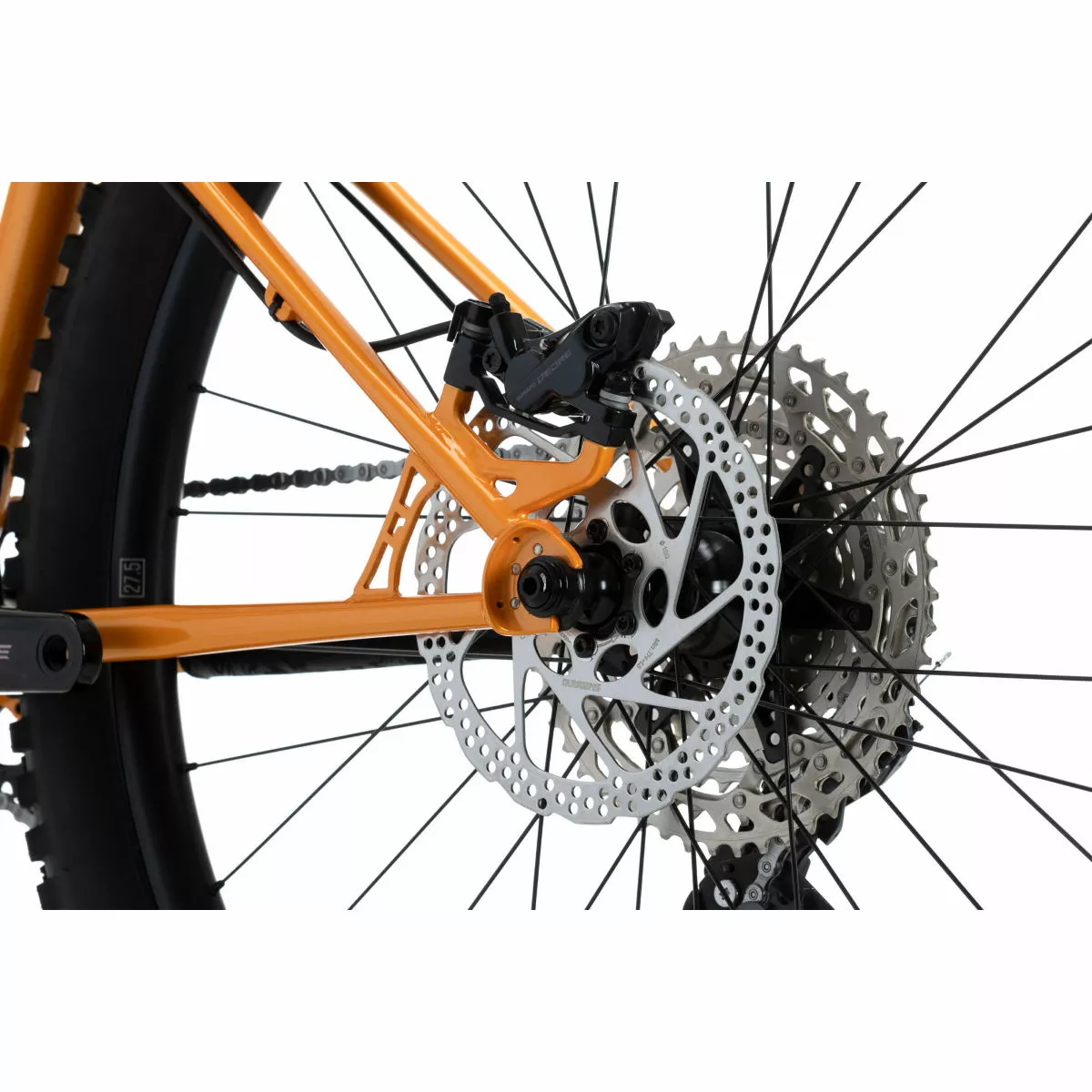

Rear Brake: Shimano Deore – M6100 lever with M6120 Calliper, Resin pads, Brakco 180mm Rotor or SRAM DB8 hydraulic disc

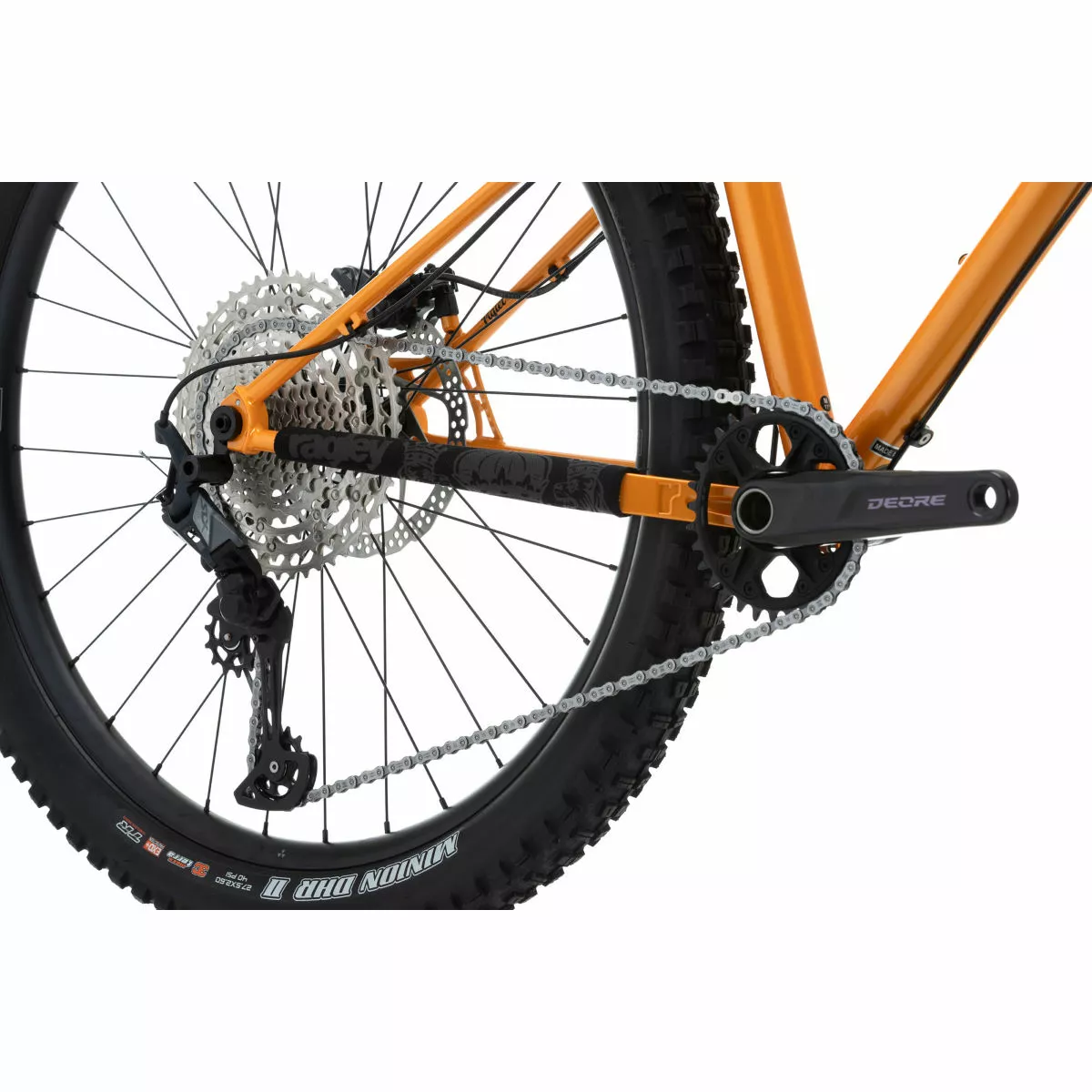

Rear Derailleur: Shimano M7100 SLX SGS 12-Speed, Shadow Plus
Rear Shifter: Shimano M7100, SLX 12-speed, Direct attachment to brake lever using I-Spec EV
Drivetrain Cables: Shimano
Cassette: Shimano Deore M6100-12, 10-12-14-16-18-21-24-28-33-39-45-51T
Saddle: Ragley Tracker Saddle

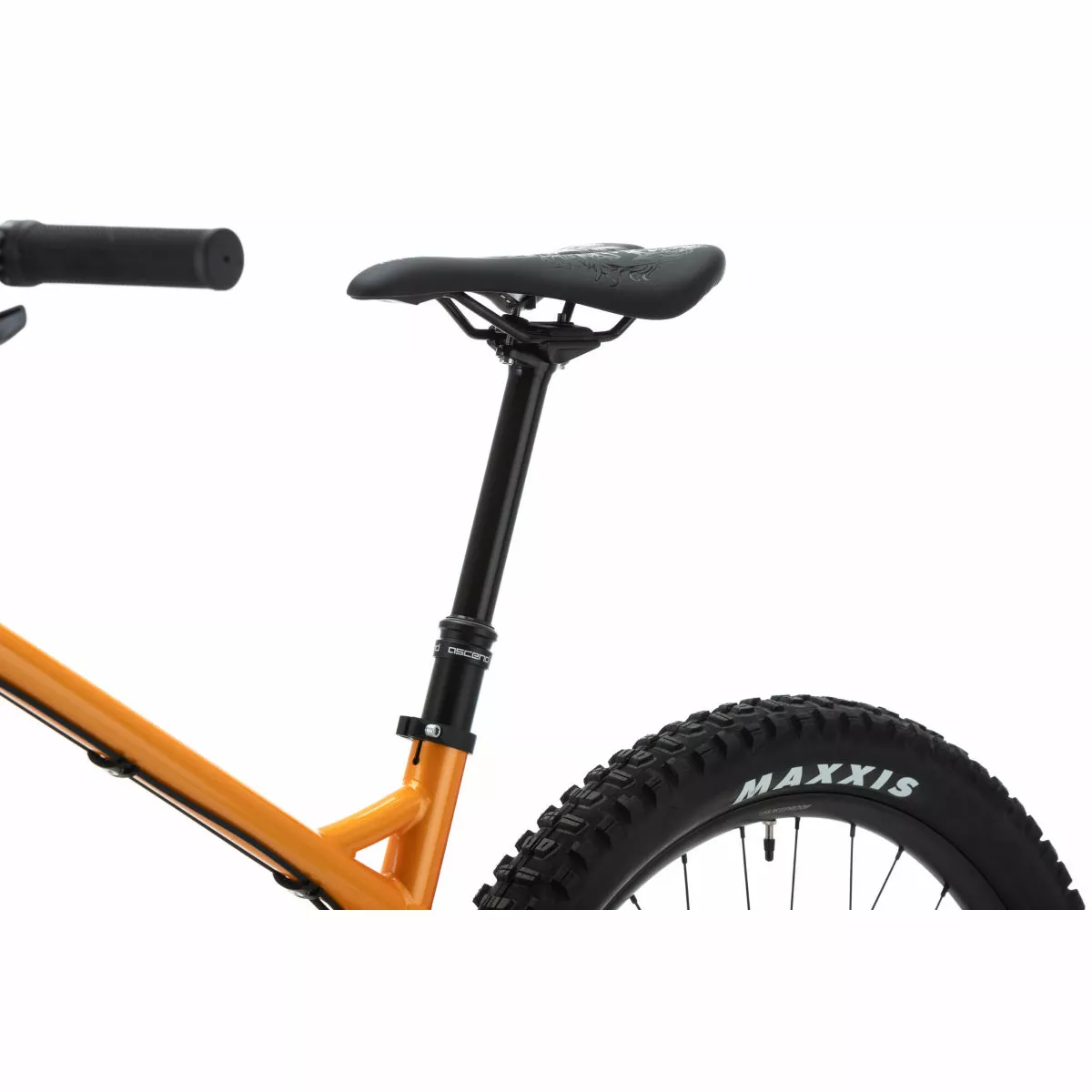

Seat Post: Brand-X Ascend Internal Route Post – 31.6mm, SM – 125mm Drop, MD – 150mm Drop, LG/XL – 170mm Drop
Seat Clamp: 34.9mm Alloy

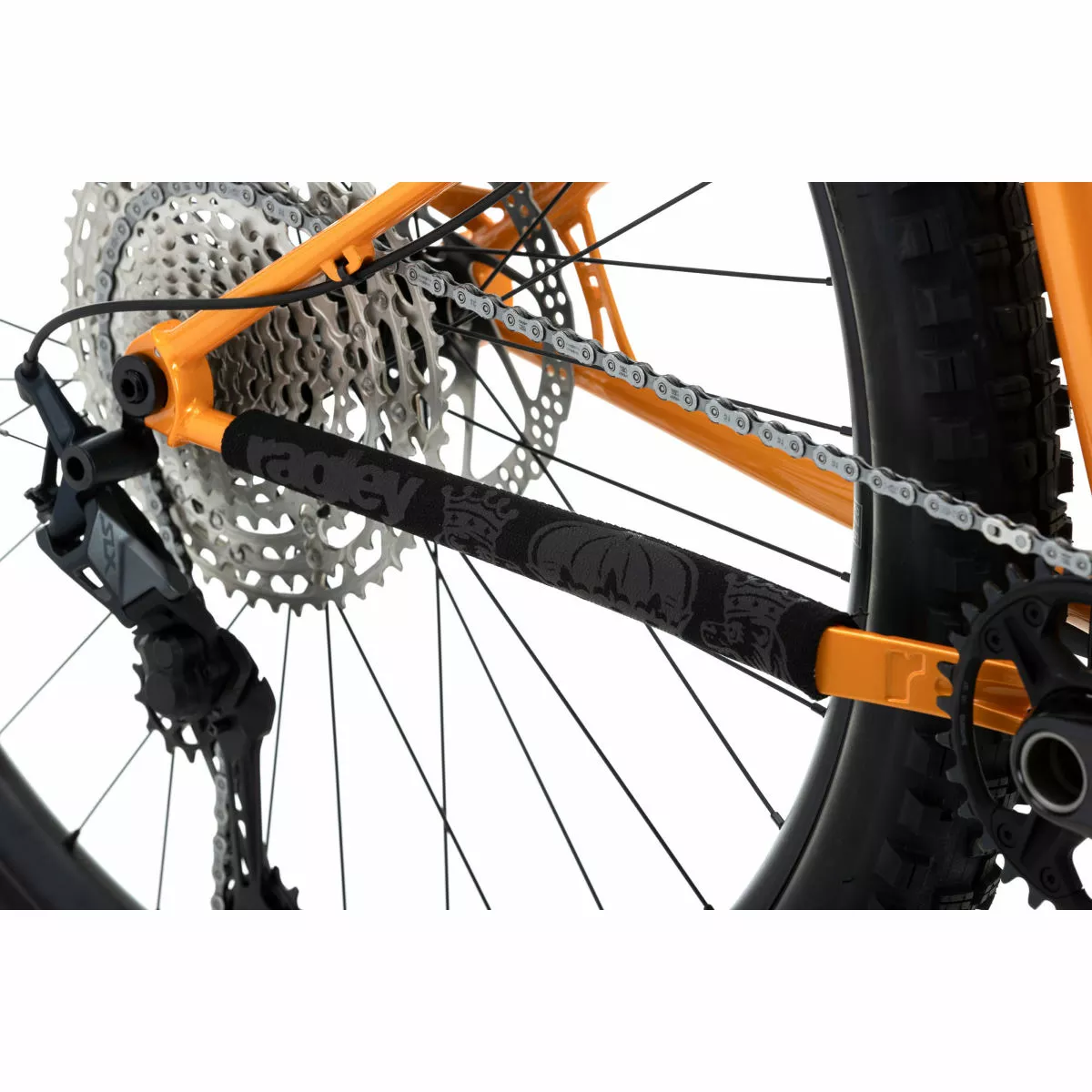

Also included: Ragley Chainstay protector, touch up paint
5 Year Warranty and lifetime crash replacement
ISO 4210 Certified

Built, Tuned and Ready to Ride

Rest assured that each bike is fully built and tuned by Wiggle’s team of qualified bike mechanics to ensure your bike arrives in perfect condition. We supply all bikes with a set of plastic pedals, a pedal wrench and a multi-tool kit. Find out which size fits you by clicking the size chart tab.

Please Note: Due to ongoing issues in the global bike supply chain, manufacturers may substitute certain component items due to availability. In this situation, they will be replaced with the same quality or better performing parts.

Note: Manufacturer may reserve the right to change the specification of that listed or shown on this page.
