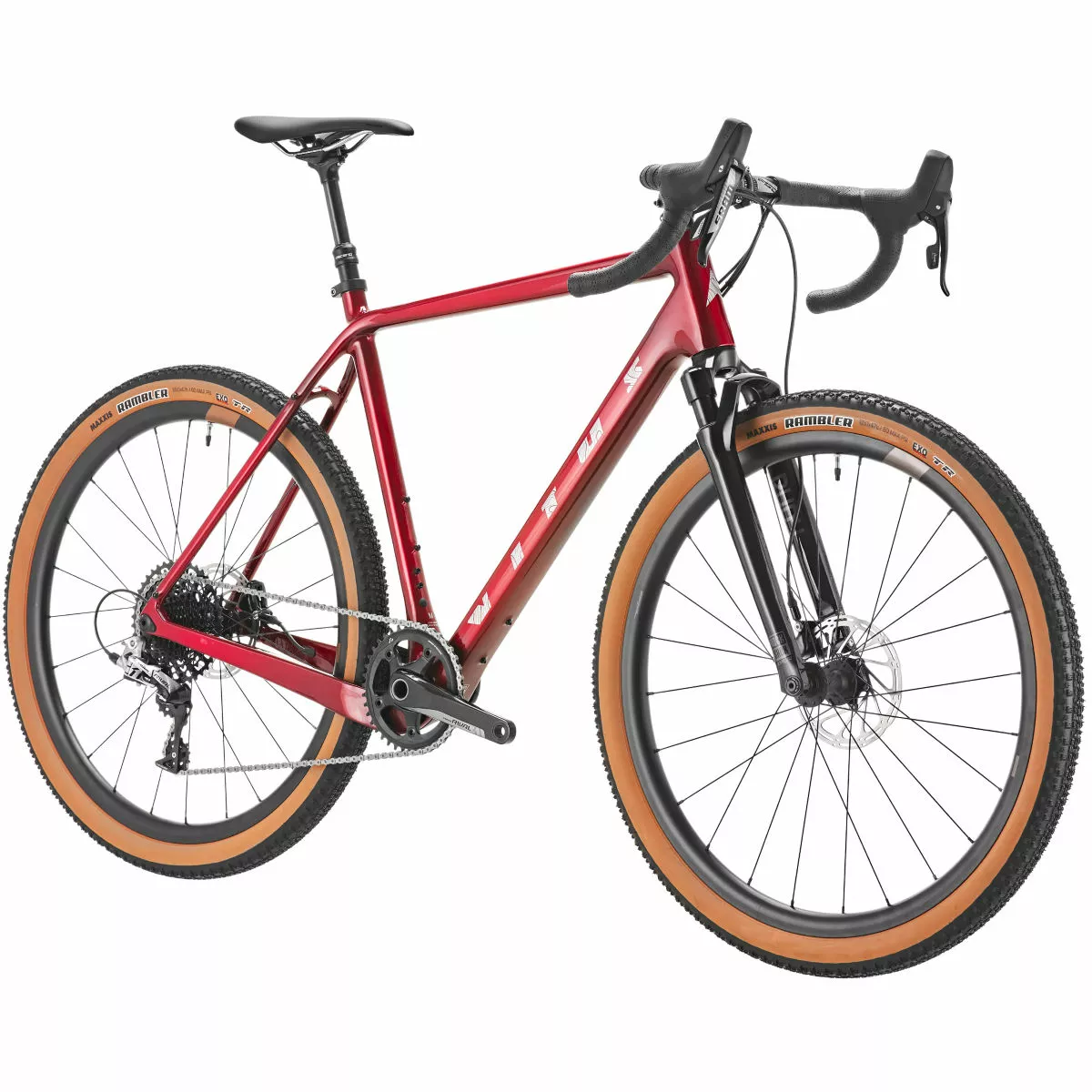

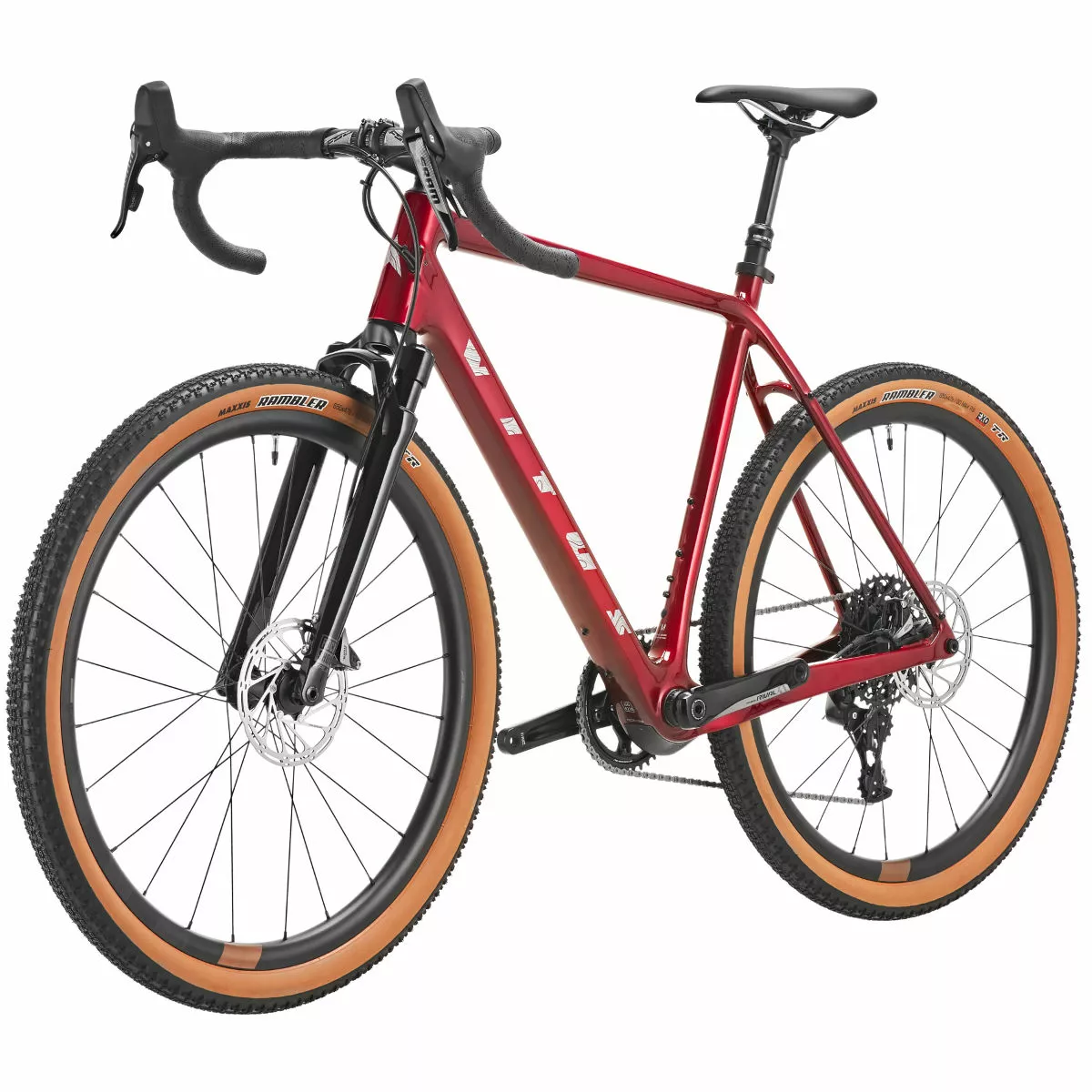

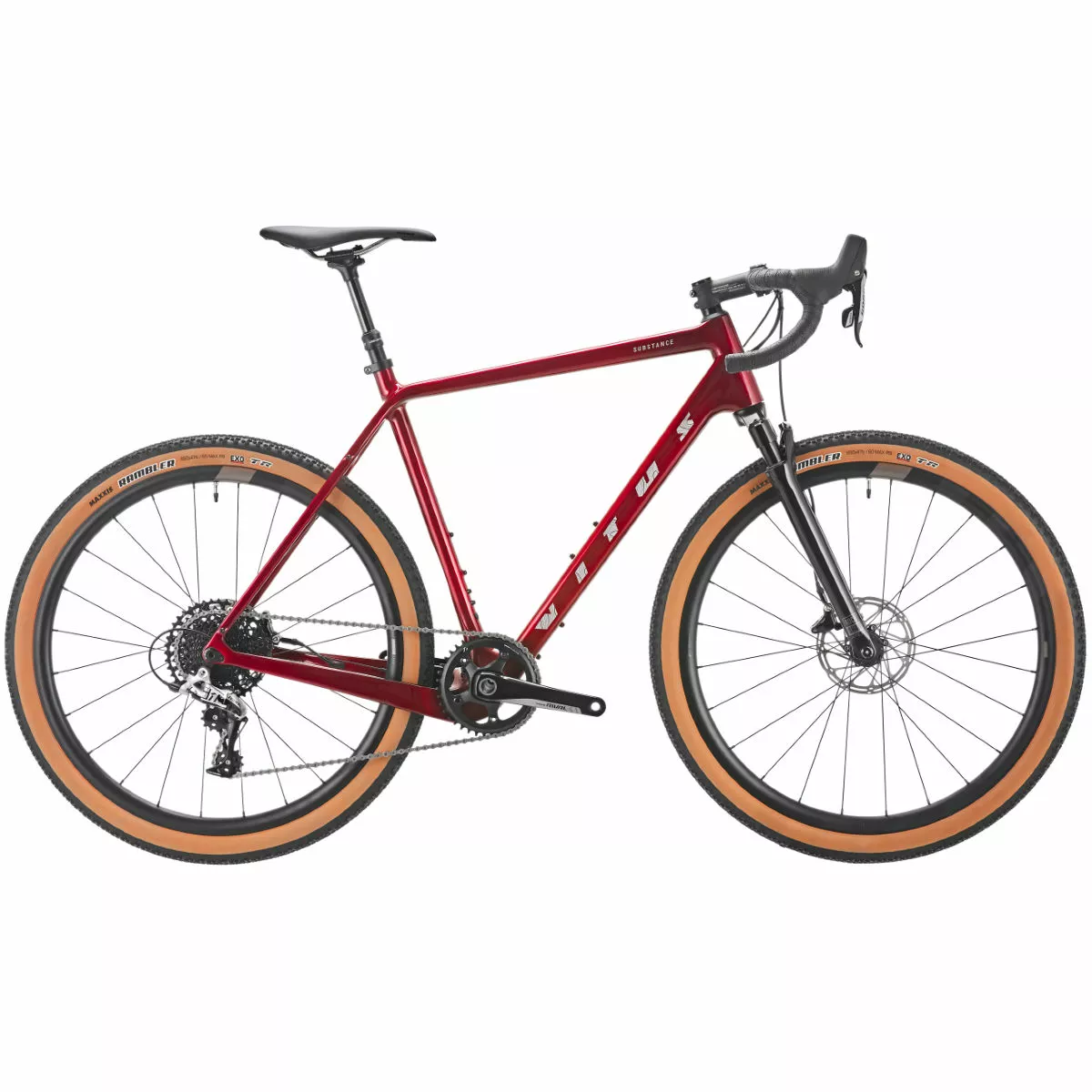

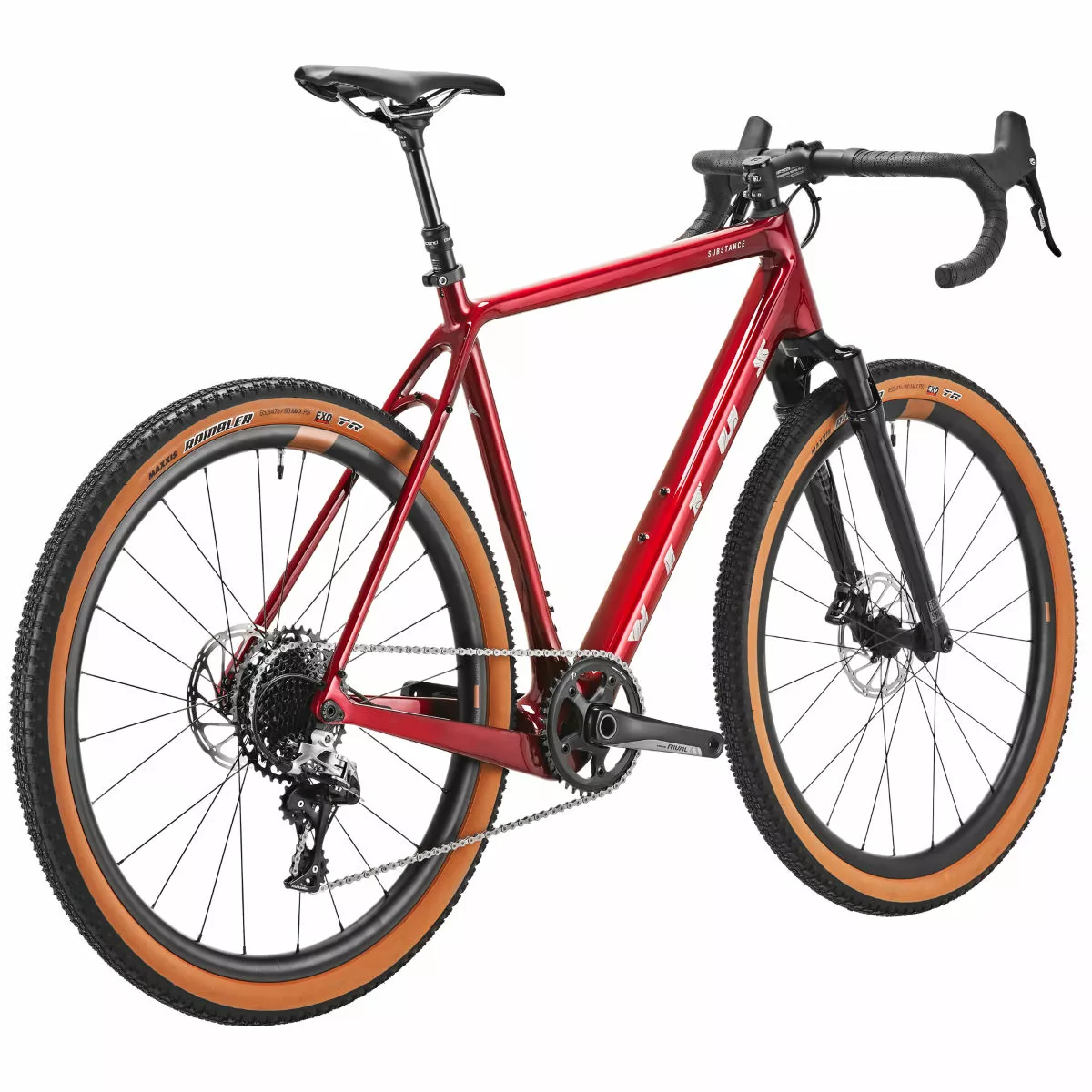

Vitus Substance Carbon HT RIVAL 1X Gravel Bike

Unshackled from the same old routes, each ride reveals new ways ahead, like a fresh map – that bridleway to who-knows-where, the gravel track through the woods or the rougher shortcut that you know is quicker but that other bikes couldn’t handle. See, in a world obsessed with pace, sometimes we need to focus on the place, the journey and the fun that comes from a bike with the capability to seek out adventures where others wouldn’t.

Whether embarking on a far-flung bikepacking adventure or simply staying light for a mixed-terrain local loop, the Substance Carbon HT is capable of adapting to suit your ride, moreso than ever before. At its core, a lightweight carbon frame and Rockshox suspension fork are tuned for comfort on long days and across varied surfaces. Aided by big volume tyres that soften the bumps and add traction over rutted or loose tracks, the build also includes a dropper post for maximum freedom of movement on the steepest terrain. With compatibility for 1X or 2X drivetrains and either 700c or 650b wheels, you can really fine-tune the setup to best fit where you are riding. And if ultra-racing or multi-day expeditions are your thing, the frame has ample mounts for luggage, waterbottles and mudguards. For those remote rides where water, food and spares might be hard to come by, you can always load up with whatever you need to reach the next supply point.

This isn’t simply about the same cliches of getting off the beaten track or going in search of the road less travelled, because the Substance is more than a gravel or adventure bike. It broadens your horizons, delivering richer experiences and powerful lasting memories. It’s a bike that enables you to do more. It’s a bike that gives you options. The Substance empowers a new mindset, one that entices you to break away from routine and to ride where you want to ride, unrestricted.

Key Features:

Dedicated carbon adventure/gravel frameset

SRAM Rival 1X groupset
RockShox Rudy XPLR suspension fork and Brand-X dropper seatpost
Prime Orra V2 650b aluminium disc wheelset with Maxxis tyres
Full mudguard mounts
Rear rack and extra water bottle mounts

Full Features:

Frame: Substance Carbon, UD Carbon, Internal Cable Routing, 1X Dropper Post Compatible, Mudguard Mounts, Rack Mounts, 12mm x 142mm Axle, Flat Mount
Fork: Substance Carbon, UD Carbon, Tapered Steerer, 100 x 12mm, Mudguard Mounts, Flat Mount
Headset: ACROS Aix-Low R3, Sealed Bearings, OD48, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 40

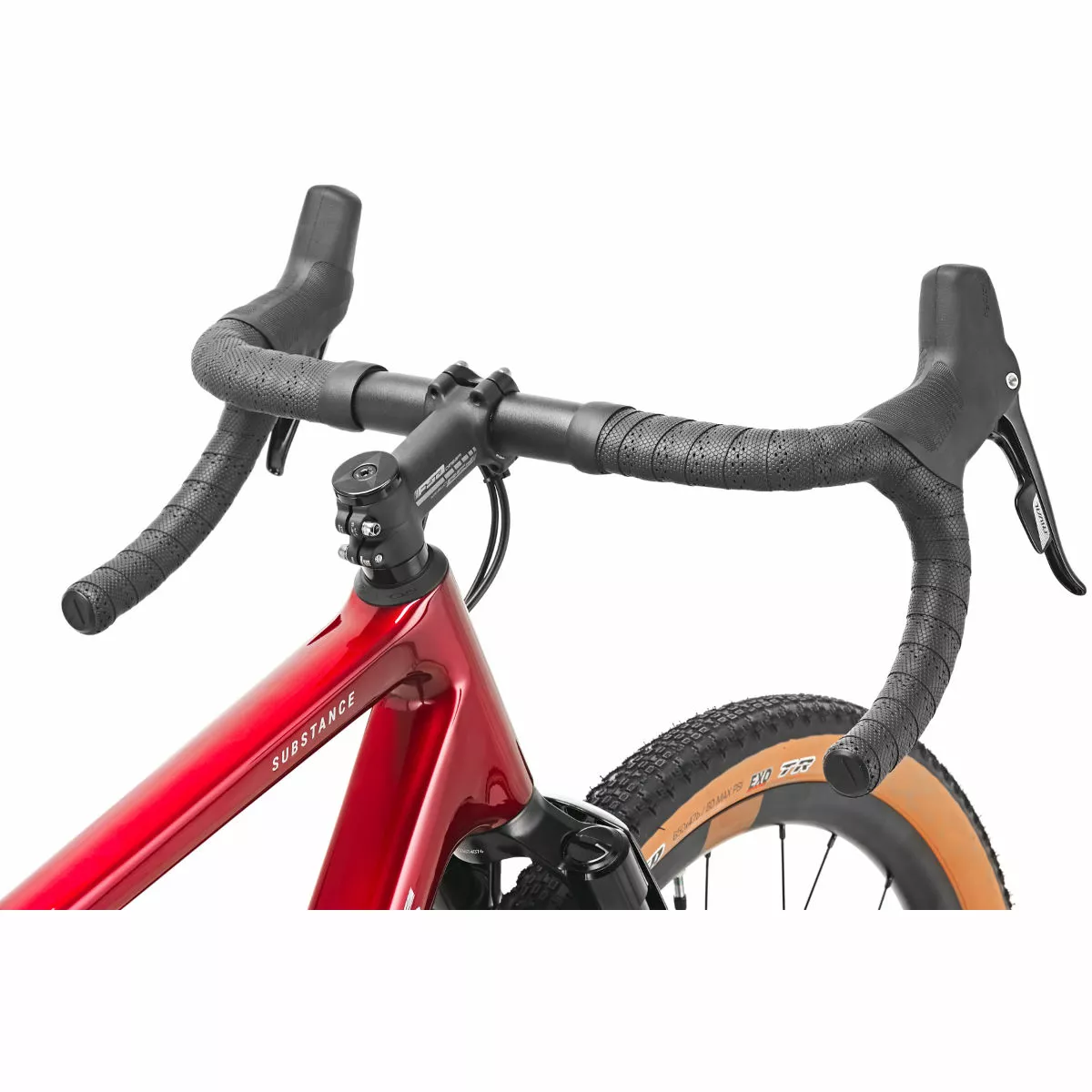

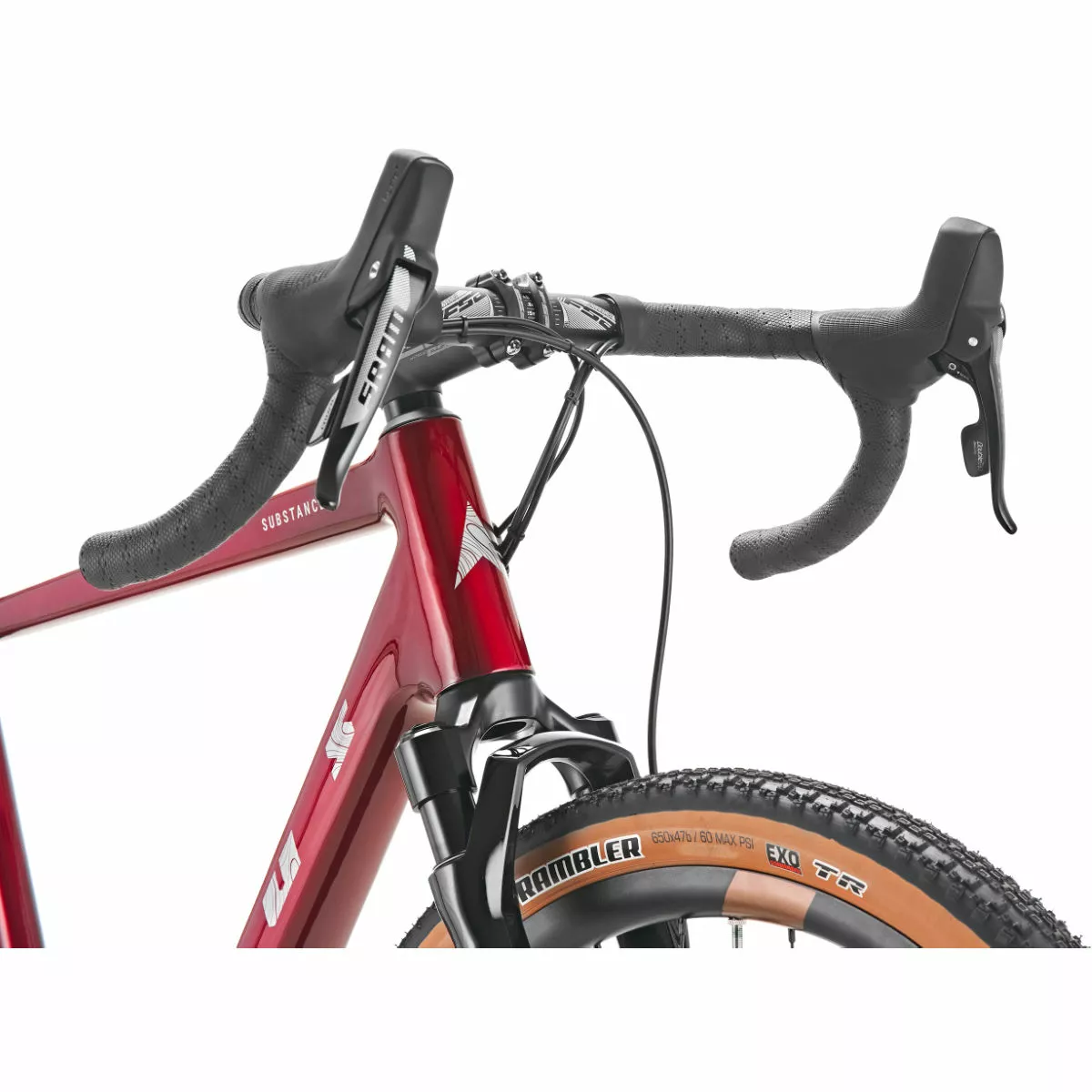

Handlebar: FSA Adventure Compact Handlebars, 6061 Aluminium, 80mm Reach, 125mm Drop, 12 Degree Flare, XS:400mm S:420mm M:420mm L:440mm XL:440mm
Stem: FSA Omega 6061 Aluminium, 3D Forged, Bar Bore: 31.8mm, +/- 6 degrees, XS:80mm S:90mm M:90mm L:100mm XL:110mm
Grip(Tape): Vitus Super Grip, Anti Slip, Shockproof
Wheelset: Prime Orra V2 Alloy, 650b, Tubeless Ready, 100 x 12mm Front, 142 x 12mm Rear, Centre Lock, HG Freehub
Front Rim: Prime Orra V2 Alloy, 650b, Tubeless Ready
Rear Rim: Prime Orra V2 Alloy, 650b, Tubeless Ready
Front Hub: Prime SR2D, 12x100mm, Centre Lock
Rear Hub: Prime SR2D,142x12mm, Centre Lock, HG Freehub, 36T Ratchet System
Front Tyre: Maxxis Rambler, 650b x 47, Tubeless Ready, EXO Casing, Tan Wall
Rear Tyre: Maxxis Rambler, 650b x 47, Tubeless Ready, EXO Casing, Tan Wall
Spoke: Double Butted, Black
Chain: KMC X11, 11 Speed

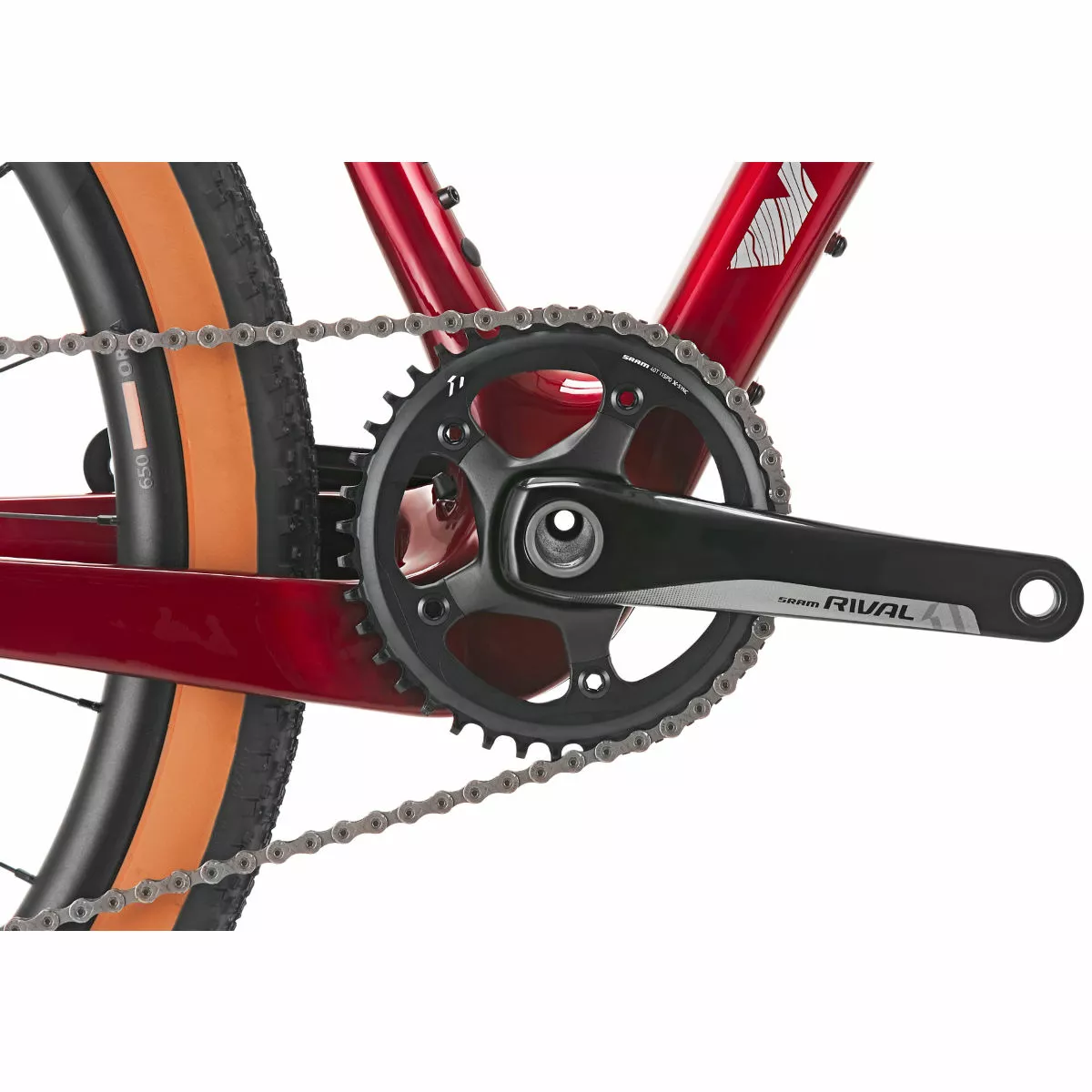

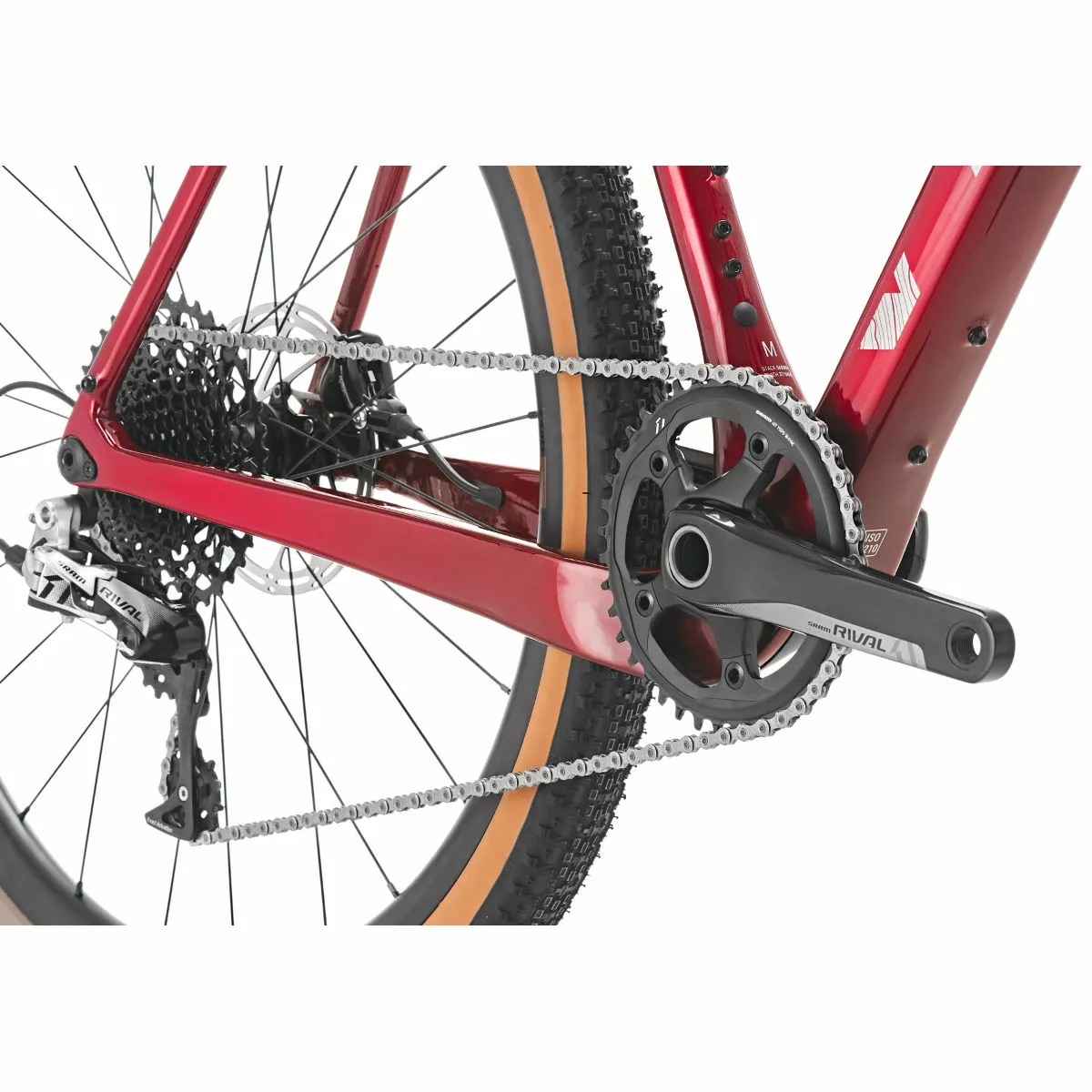

Crankset: SRAM Rival X-Sync, 40T, 11 Speed, XS:170mm S:170mm M:172.5mm L:172.5mm XL:175mm
Bottom Bracket: SRAM GXP, BSA Threaded, 68mm, English

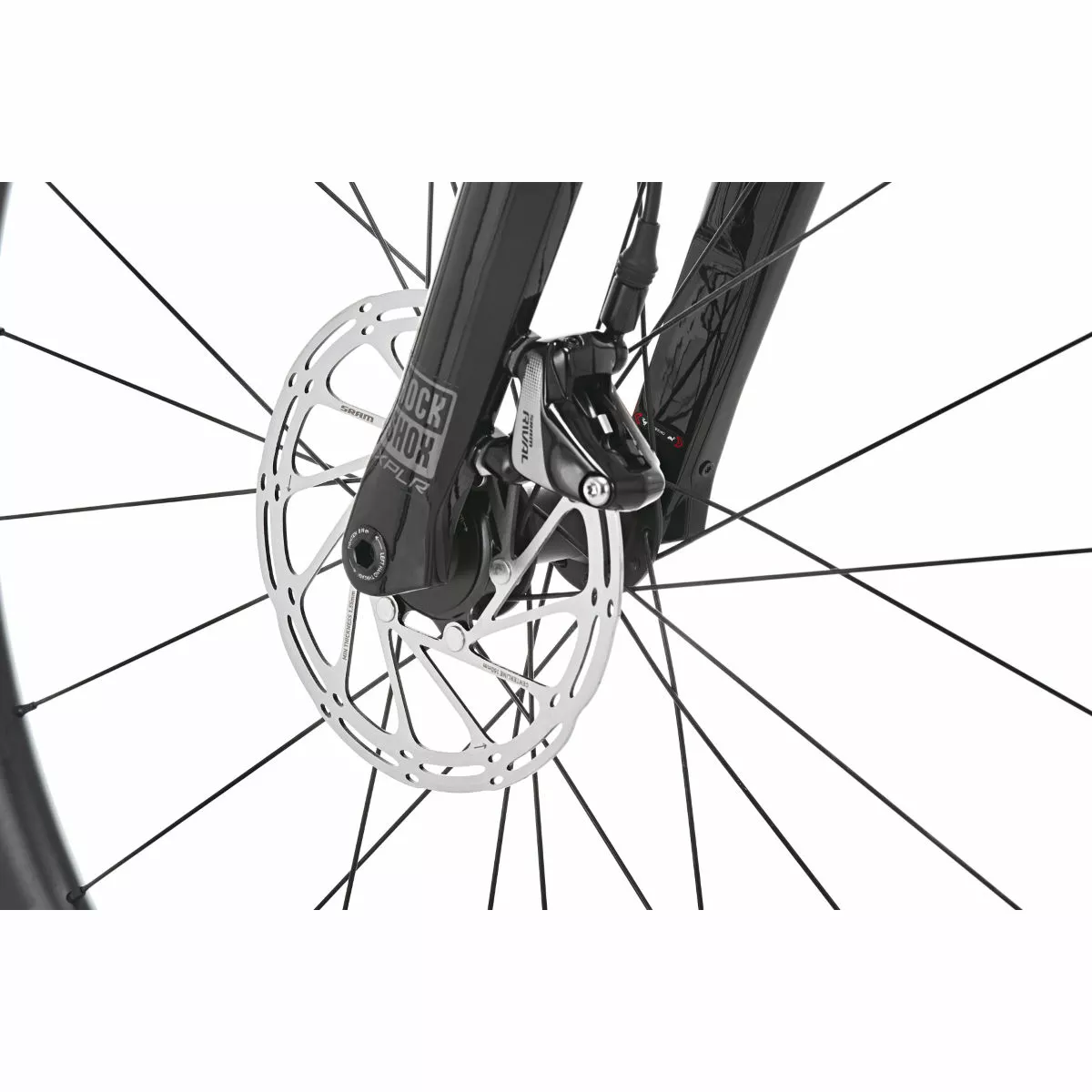

F/brake Set: SRAM Rival, Hydraulic Disc, Flat Mount
R/brake Set: SRAM Rival, Hydraulic Disc, Flat Mount
Rotors: SRAM Centreline, Front: 160mm, Rear: 160mm
Front Derailleur: N/A

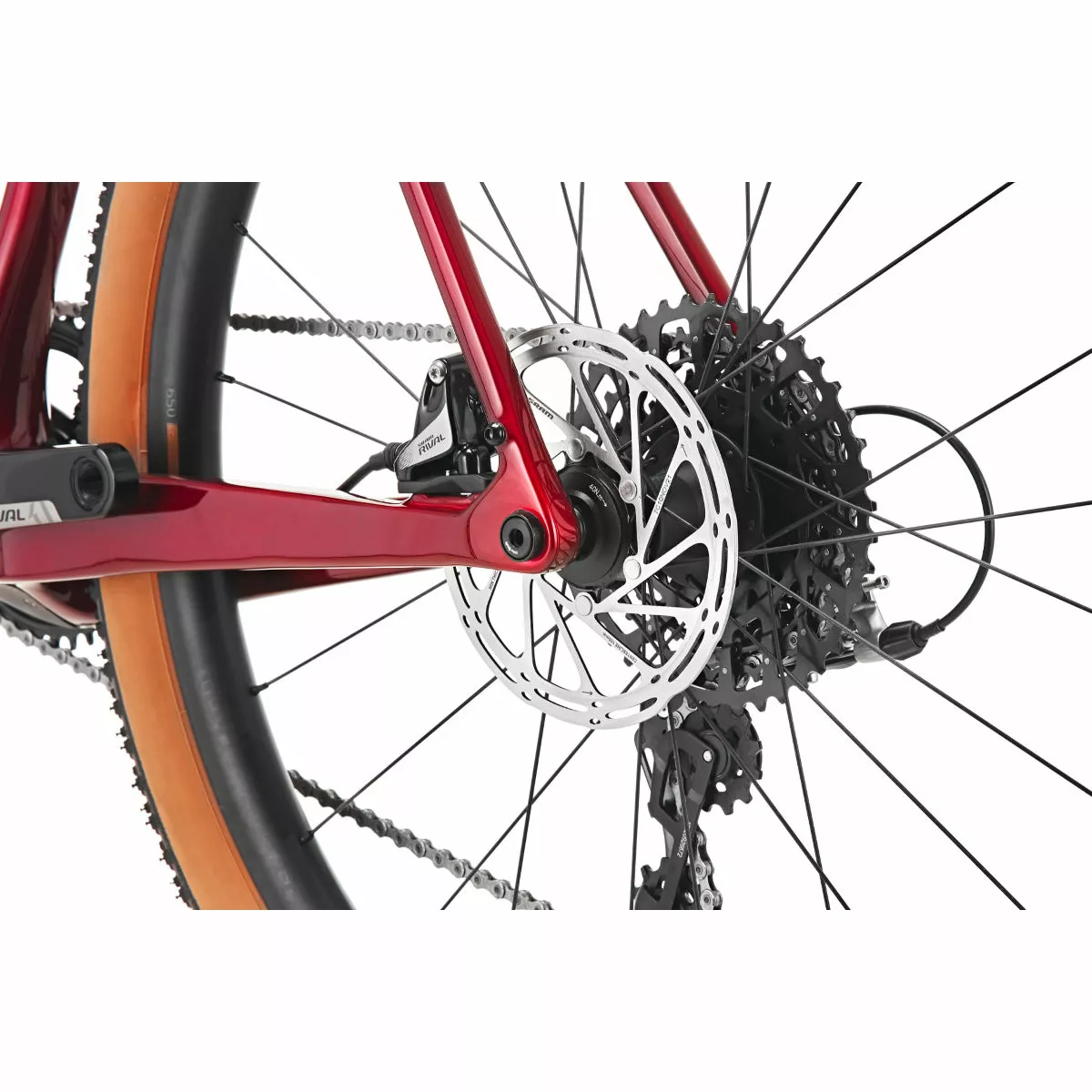

Rear Derailleur: SRAM Rival, 11 Speed, Long Cage
Left Shifter: SRAM Rival, Hydraulic Brake Lever
Right Shifter: SRAM Rival, 11 Speed
Freewheel: SRAM PG 1130, 11 Speed, 11-42T
Saddle: Vitus, Ti Rail

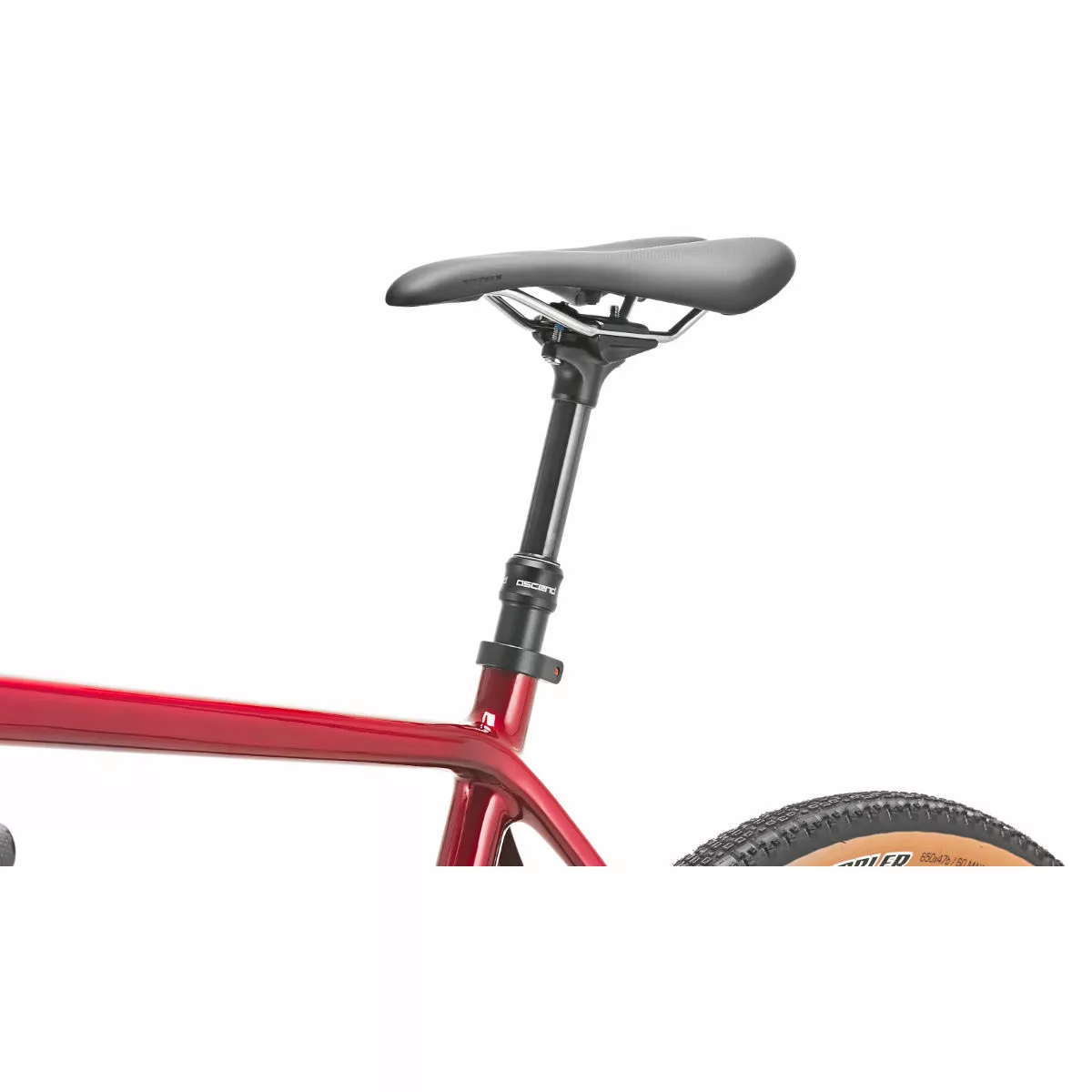

Seat Post: Brand-X Ascend CX dropper post, 85mm Drop, 350mm Length, 27.2mm Diameter
Seat Screw: Aluminium 31.8mm, Stainless Steel Bolt
Weight: Medium: 10.1kg

Please Note: Due to ongoing issues in the global bike supply chain, manufacturers may substitute certain component items due to availability. In this situation, they will be replaced with the same quality or better performing parts.

Built, Tuned and Ready to Ride

Rest assured that each bike is fully built and tuned by Wiggle’s team of qualified bike mechanics to ensure your bike arrives in perfect condition. We supply all bikes with a set of plastic pedals, a pedal wrench and a multi-tool kit. Find out which size fits you by clicking the size chart tab.

Note: Manufacturer may reserve the right to change the specification of that listed or shown on this page.
