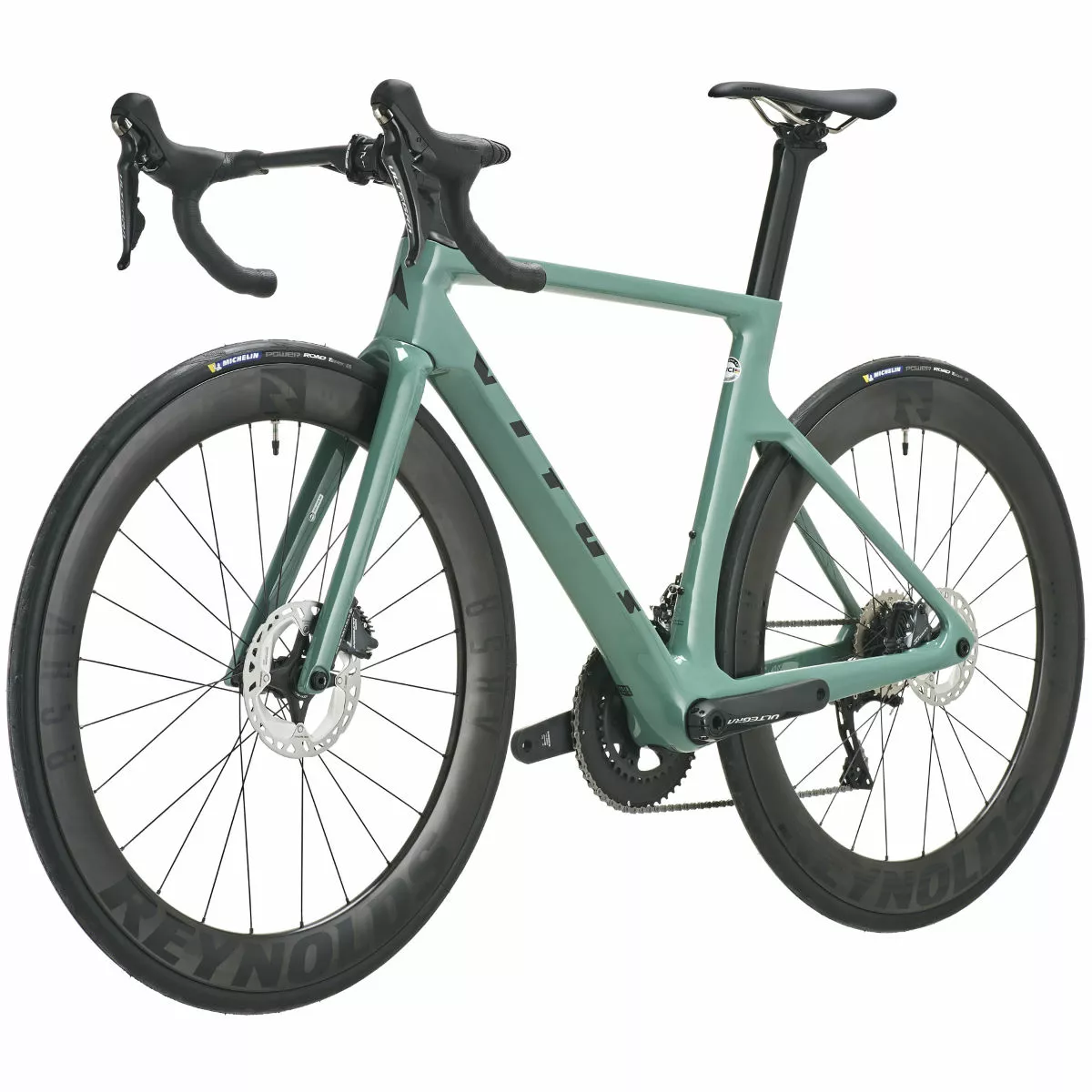

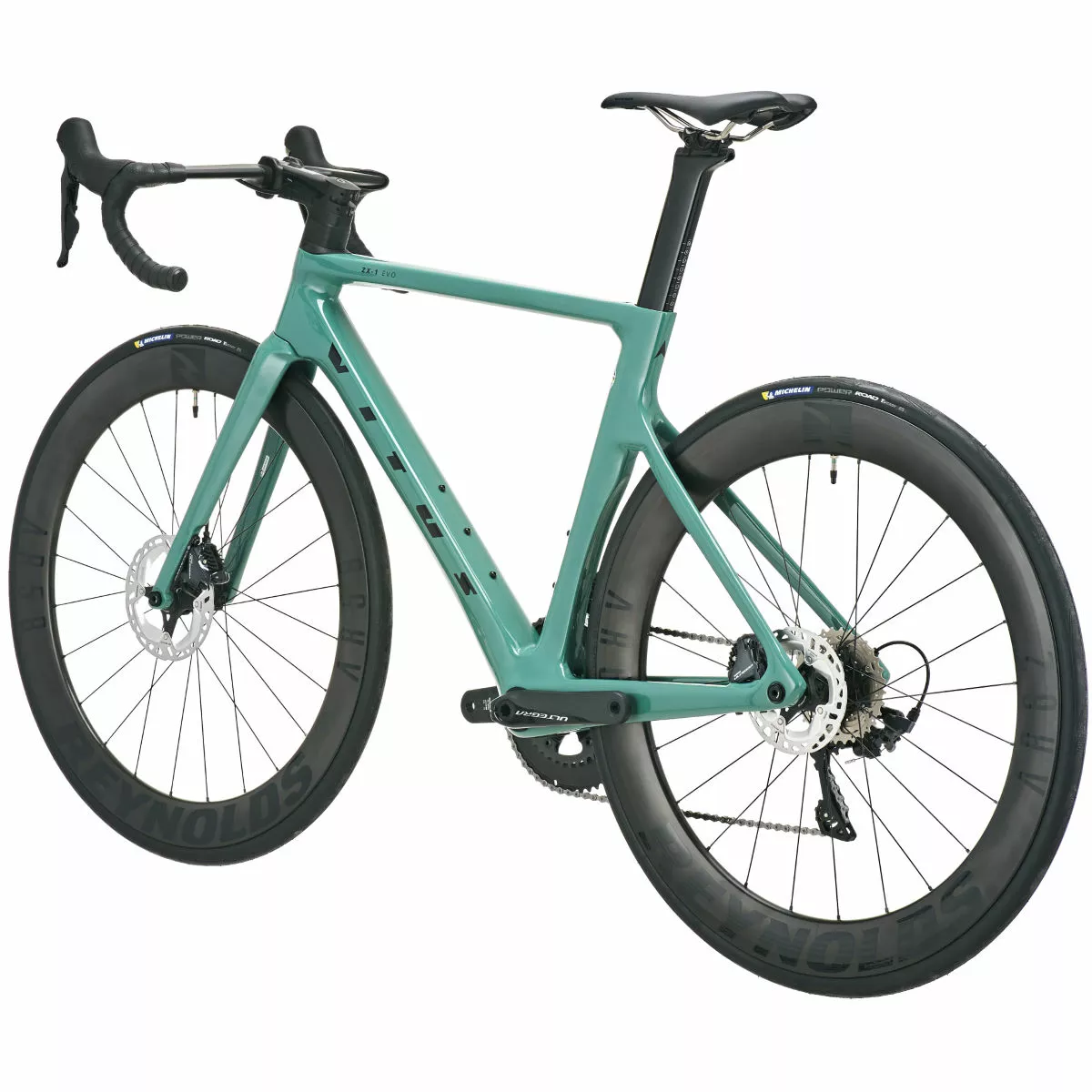

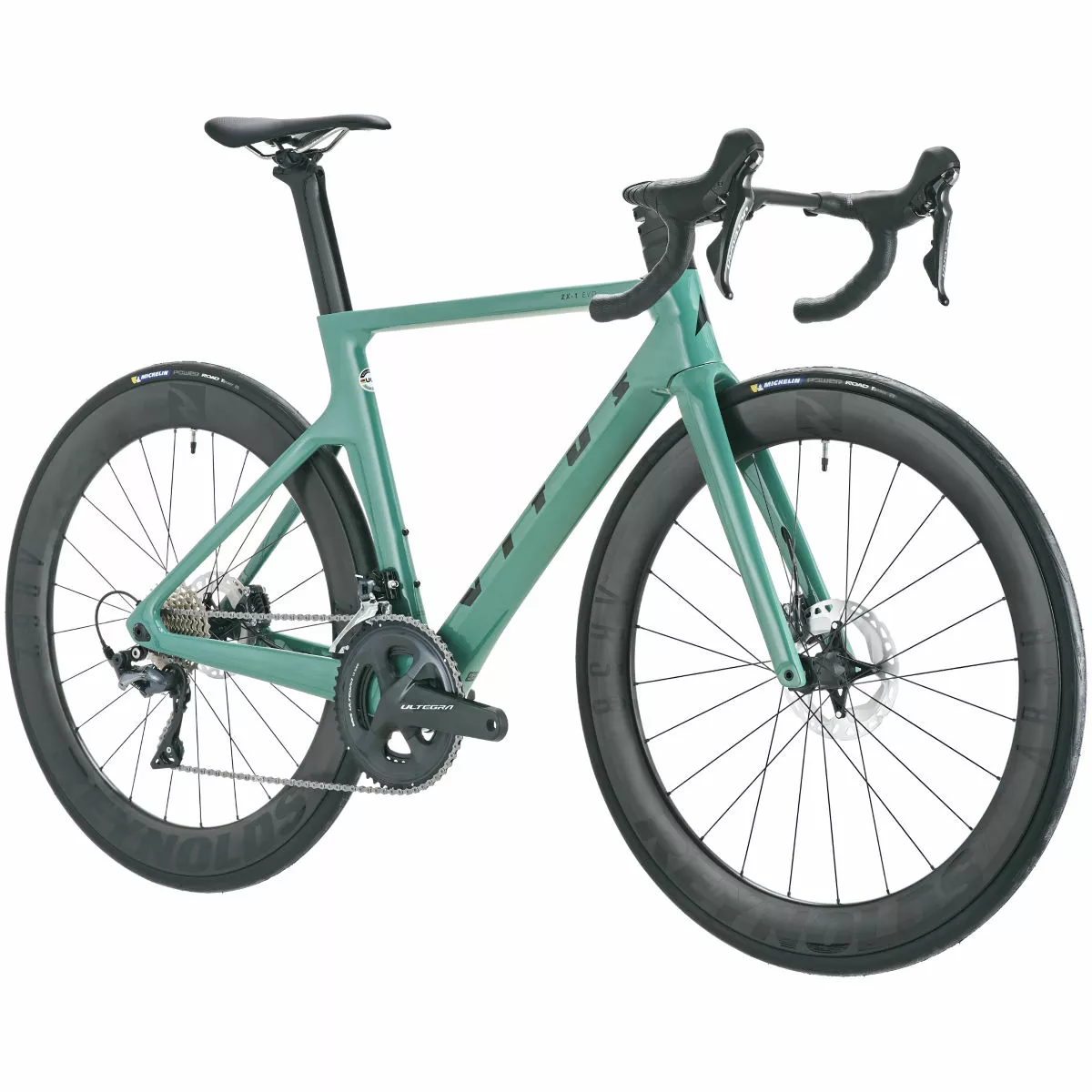

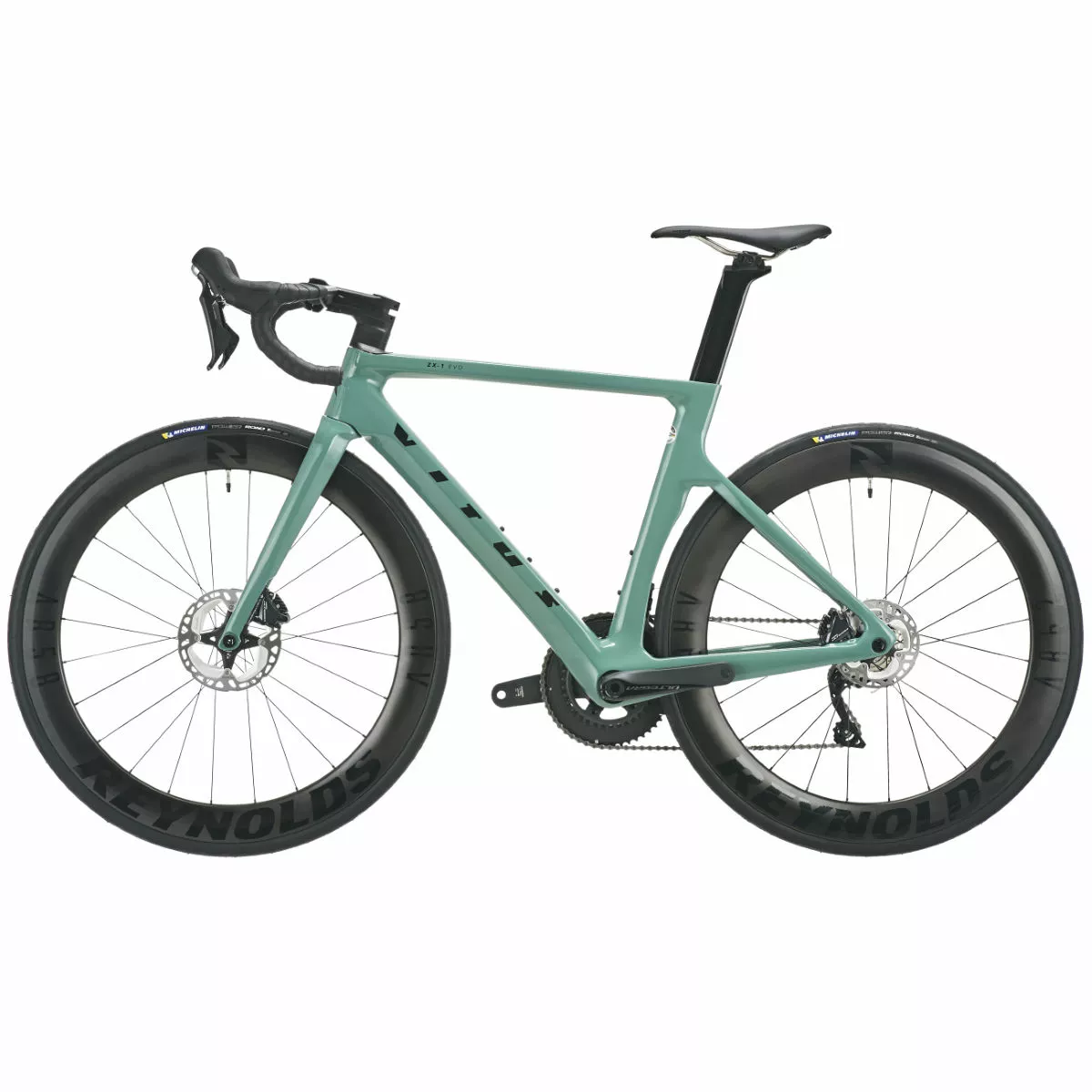

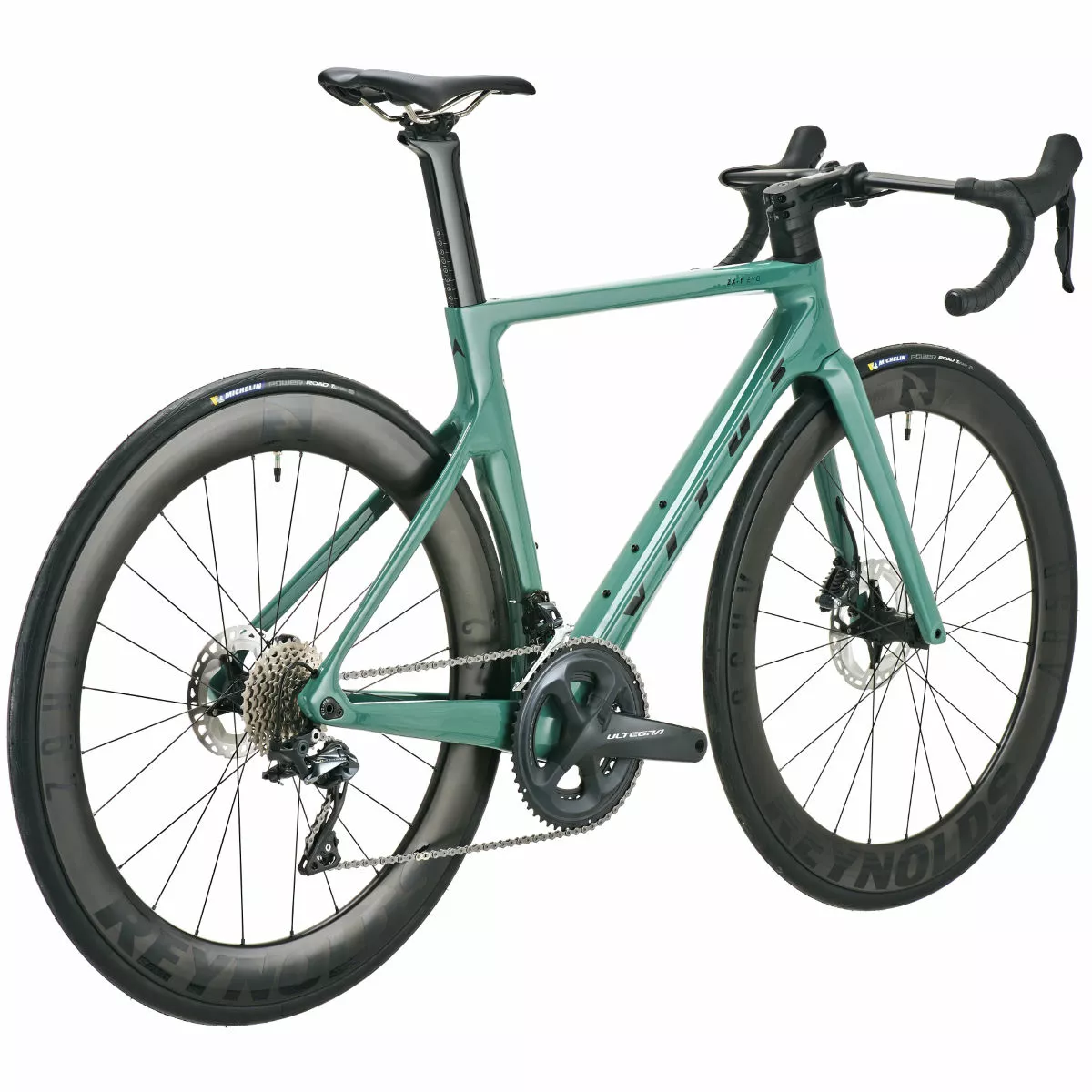

Vitus ZX-1 EVO CRS Road Bike (Ultegra)

The ZX-1 EVO CRS Road Bike (Ultegra features a high-quality carbon frameset and is equipped with a Shimano Ultegra R8000 11-Speed mechanical groupset and hydraulic disc brakes. Ideal for fast road races, steep climbing events and long-distance Grand Tour-style outings, the ZX-1 EVO CRS is optimised to perform at the highest level in all race conditions.

Lightweight, Strong and Stiff Road Race Bike

The latest Vitus ZX-1 has been remastered, reimagined and reengineered. Enter, the EVO. Lighter, stiffer and faster. Stripped right back to the drawing board for a ground-up overhaul.

Agile, Aerodynamic and Efficient Carbon Aero Frameset

Vitus has done the testing and knows that the ZX-1 EVO exhibits up to 45% less drag than the previous model. But that means nothing until you unleash it outside and feel it for yourself. In the world of aero bikes, amongst all the jargon and data, it’s easy to lose sight of what really matters. That to feel fast is to be fast, and you can’t feel fast in a wind tunnel. The pleasure of speed only exists in the real world. Out there on the road. The sensation of putting power through your pedals and feeling the bike surge underneath you. And the faster you go, the easier it becomes. That’s where the ZX-1 EVO excels. That’s the bike working with you as the road snakes and the wind changes. That’s aero.

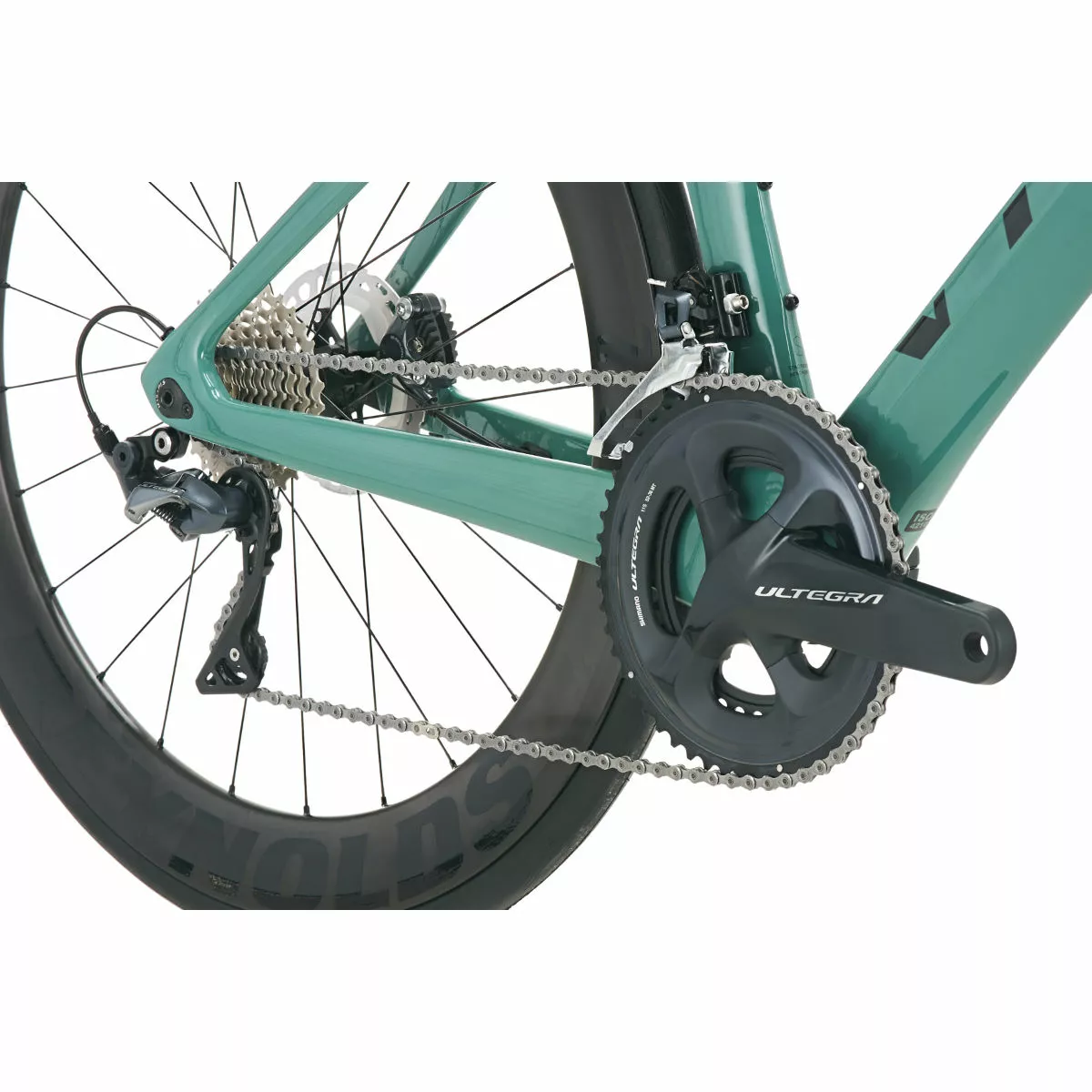

Shimano Ultegra R8000 11-Speed Mechanical Groupset

The ZX-1 EVO doesn’t neglect everything for the sake of speed, since an uncomfortable rider cannot be fast and efficient. At least, not for long. Thanks to the one-piece carbon monocoque frame there are no points of weakness, no joints, so it is specifically engineered to be stiff where required and deliver comfort elsewhere, reducing harshness from the road for a more soothing ride feel. Reassuringly, there are no compromises on performance with the build. You’re getting trusted performance from Shimano’s Ultegra groupset, deep-section aero Reynolds carbon wheels and an integrated carbon stem and handlebar to keep the front end sleek. The result? A bike with a stunningly clean aesthetic that carves through the air with outstanding efficiency.

The performance geometry slots the rider into a naturally aerodynamic position, so whether racing flat-out, sprinting for road signs or charging on the front of the peloton, the EVO gathers momentum quickly and holds speed with ease. Vitus has made this bike fast. They know it rides fast. The rest is up to you.

Features:

Frame: ZX-1 EVO Carbon, SL UD Carbon, UCI Approved, Internal Cable Routing, 12mm x 142mm axle, Flat Mount
Fork: ZX-1 EVO Carbon, SL UD Carbon, UCI Approved, Tapered Steerer, 100 x 12mm, Flat Mount, Size Specific Offset
Headset: FSA/Vitus ACR, Sealed Bearings, 1.5″” 36×45 degrees (FSA No.55ACR), Vitus/FSA Headset Cover

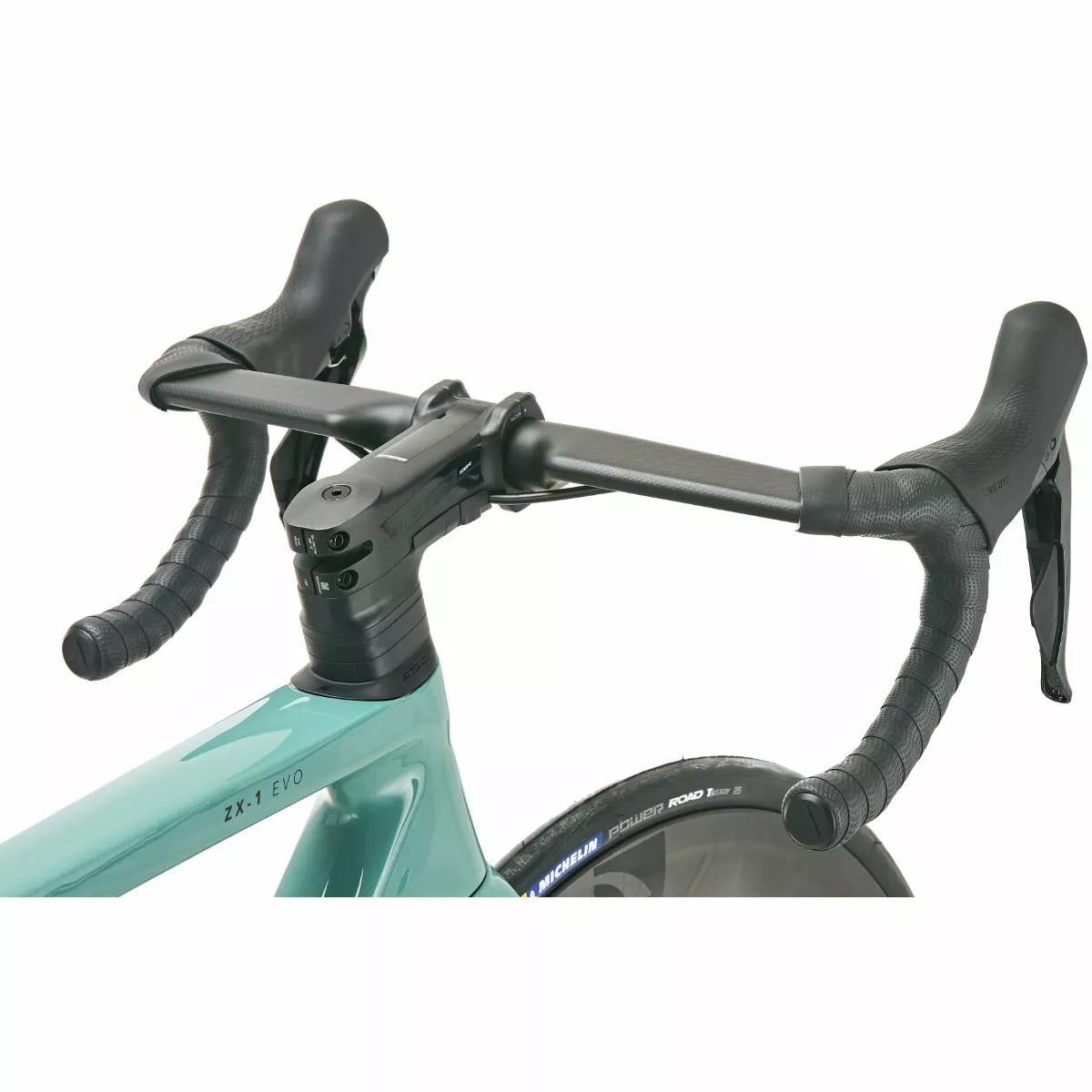

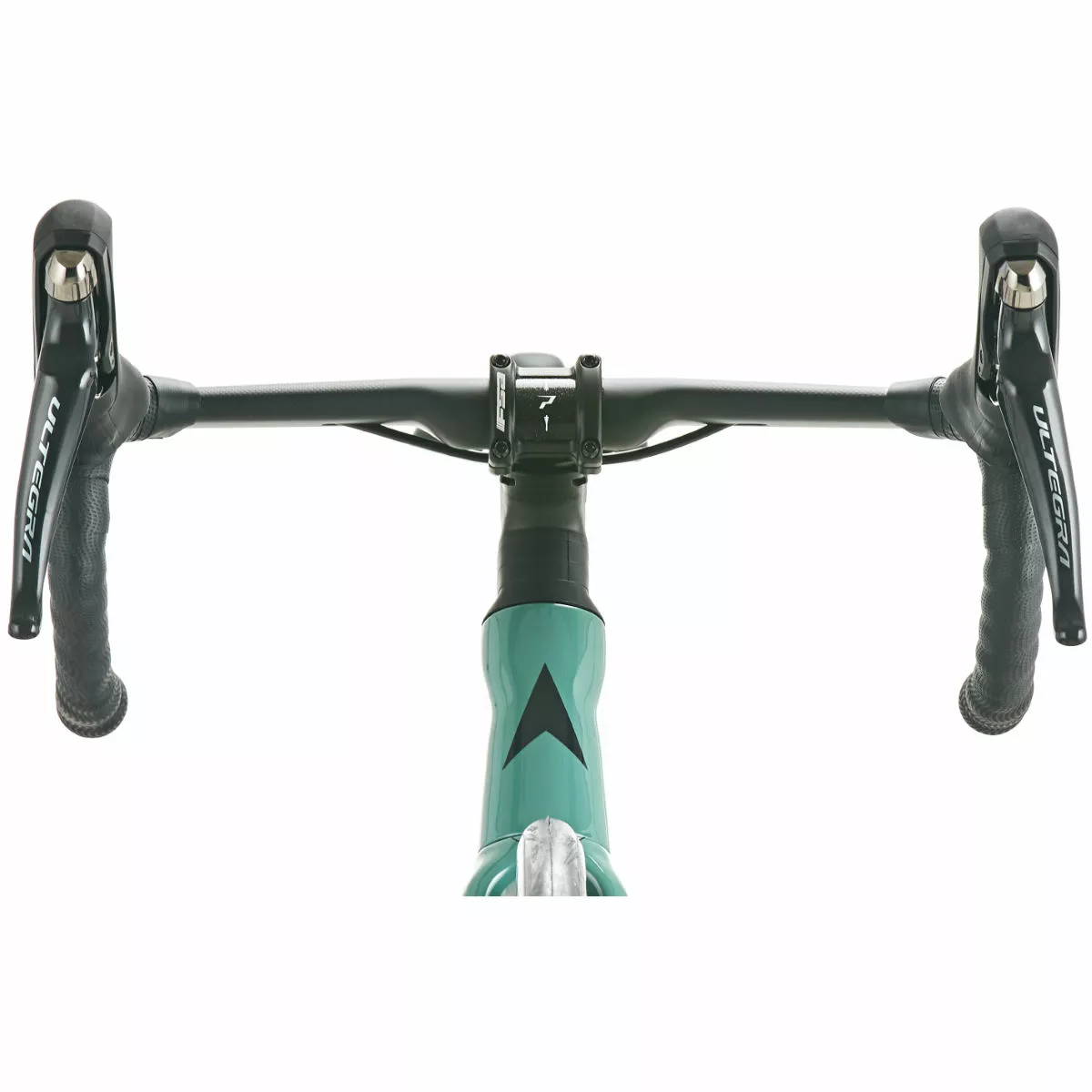

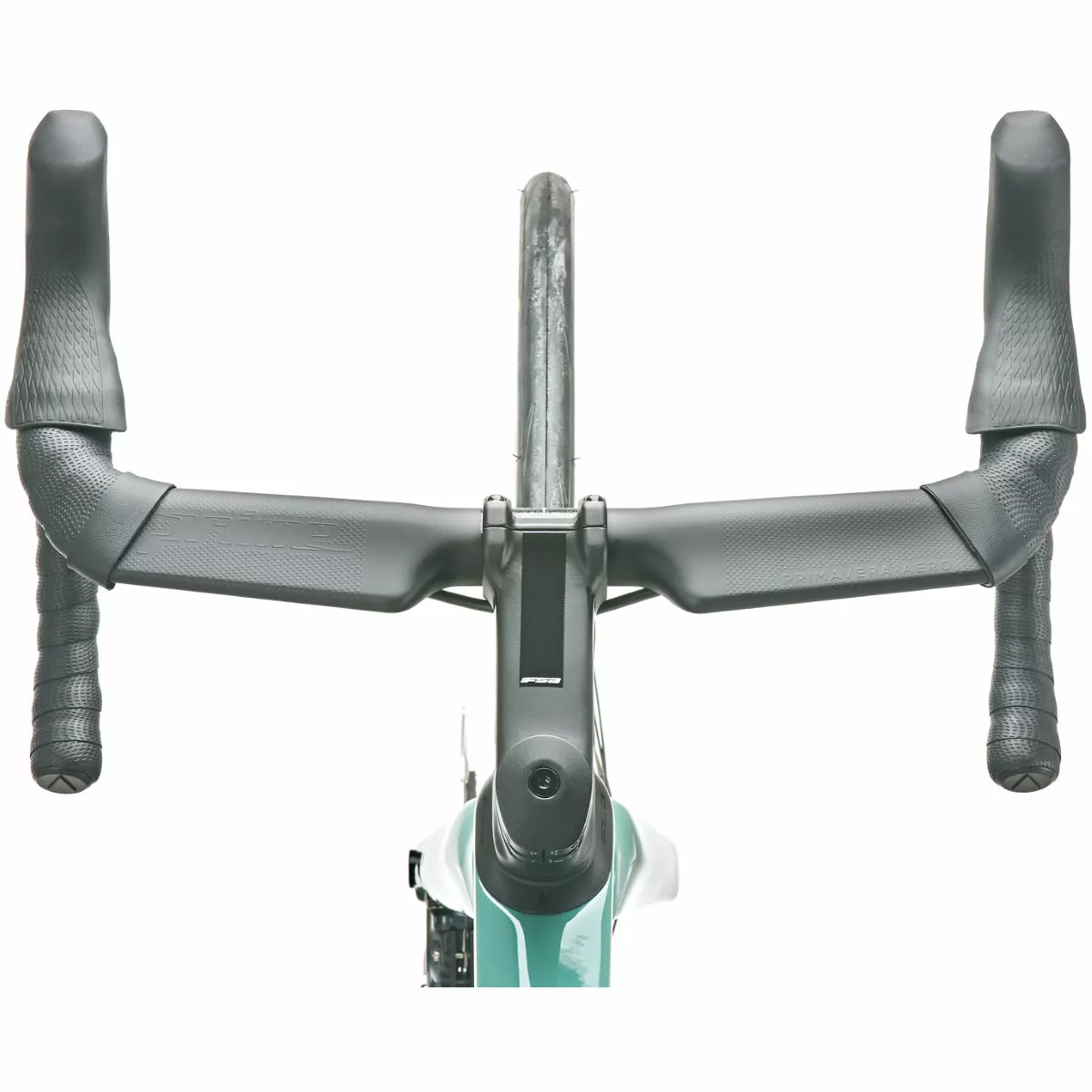

Handlebar: Prime Primavera Carbon Aero, UD Carbon, Rise: 78mm, XS:400mm S:400mm M:420mm L:420mm XL:420mm XXL:420mm
Stem: FSA ST-OS-185 Integrated, Bar Bore 31.8mm, – 6 degrees, XS:100mm, S:100mm, M:110mm, L:110mm, XL:120mm, XXL:120mm
Grip(Tape): Vitus Super Grip, Anti Slip

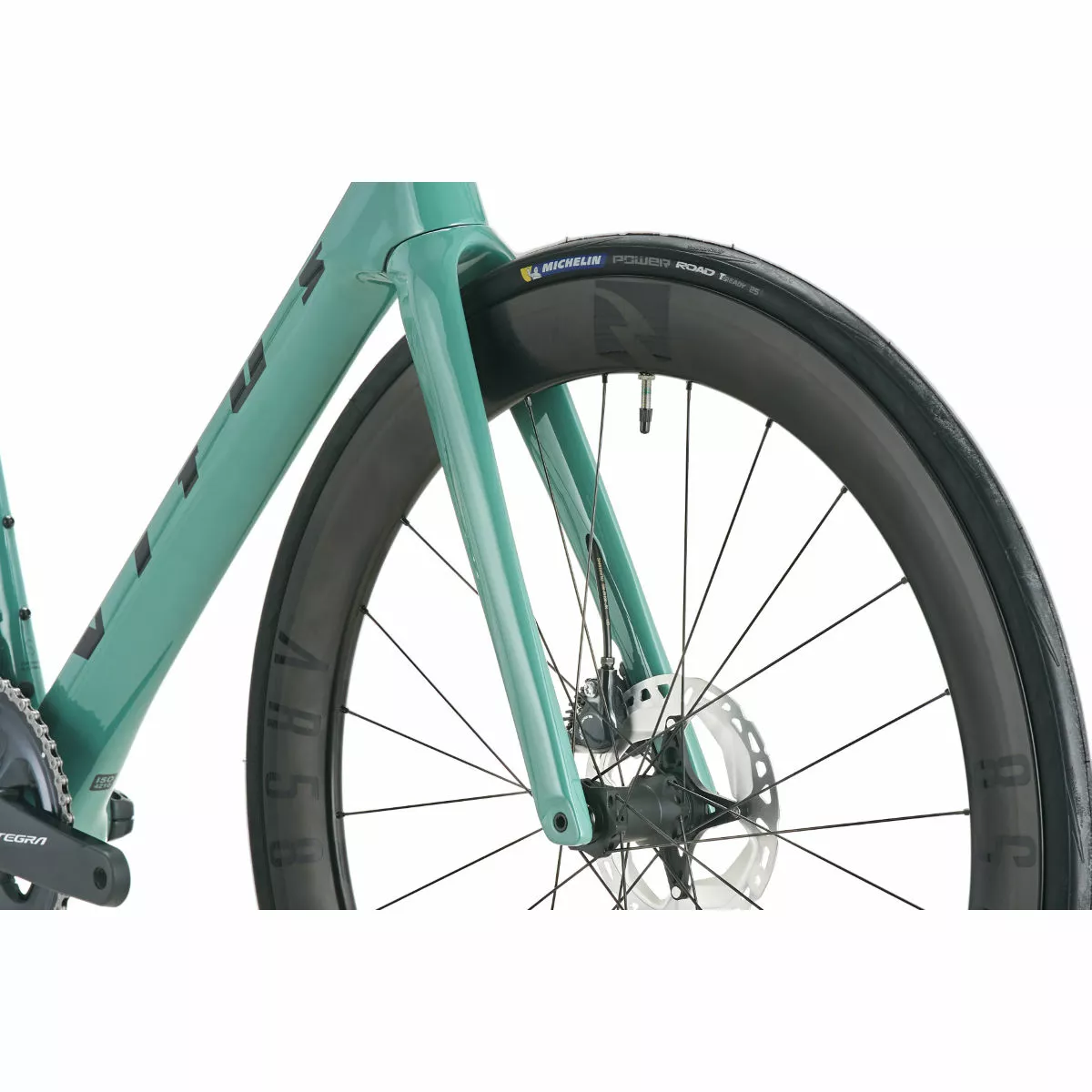

Wheelset: Reynolds AR58/AR62 DB Carbon Clincher Wheelset, 700c, Tubeless Ready, 24 Hole, 100 x 12mm Front, 142 x 12mm Rear, Centre Lock, HG Freehub
Front Rim: Reynolds AR58, Carbon, Tubeless Ready, Disc Brake, Rim Depth: 58mm, Inner Rim Width: 19mm, Outer Rim Width: 28mm
Rear Rim: Reynolds AR62 , Carbon, Tubeless Ready, Disc Brake, Rim Depth: 62mm, Inner Rim Width: 21mm, Outer Rim Width: 30mm
Front Hub: Reynolds GW TR3, 100 x 12mm, Centre Lock
Rear Hub: Reynolds GW TR3, 142 x 12mm, Centre Lock, HG Freehub
Front Tyre: Michelin Power Road TLR, 700c x 25c, Tubeless Ready
Rear Tyre: Michelin Power Road TLR, 700c x 25c, Tubeless Ready
Spoke: Reynolds Sprint 2x Lacing, External Brass Nipples
Chain: KMC X11, 11 Speed

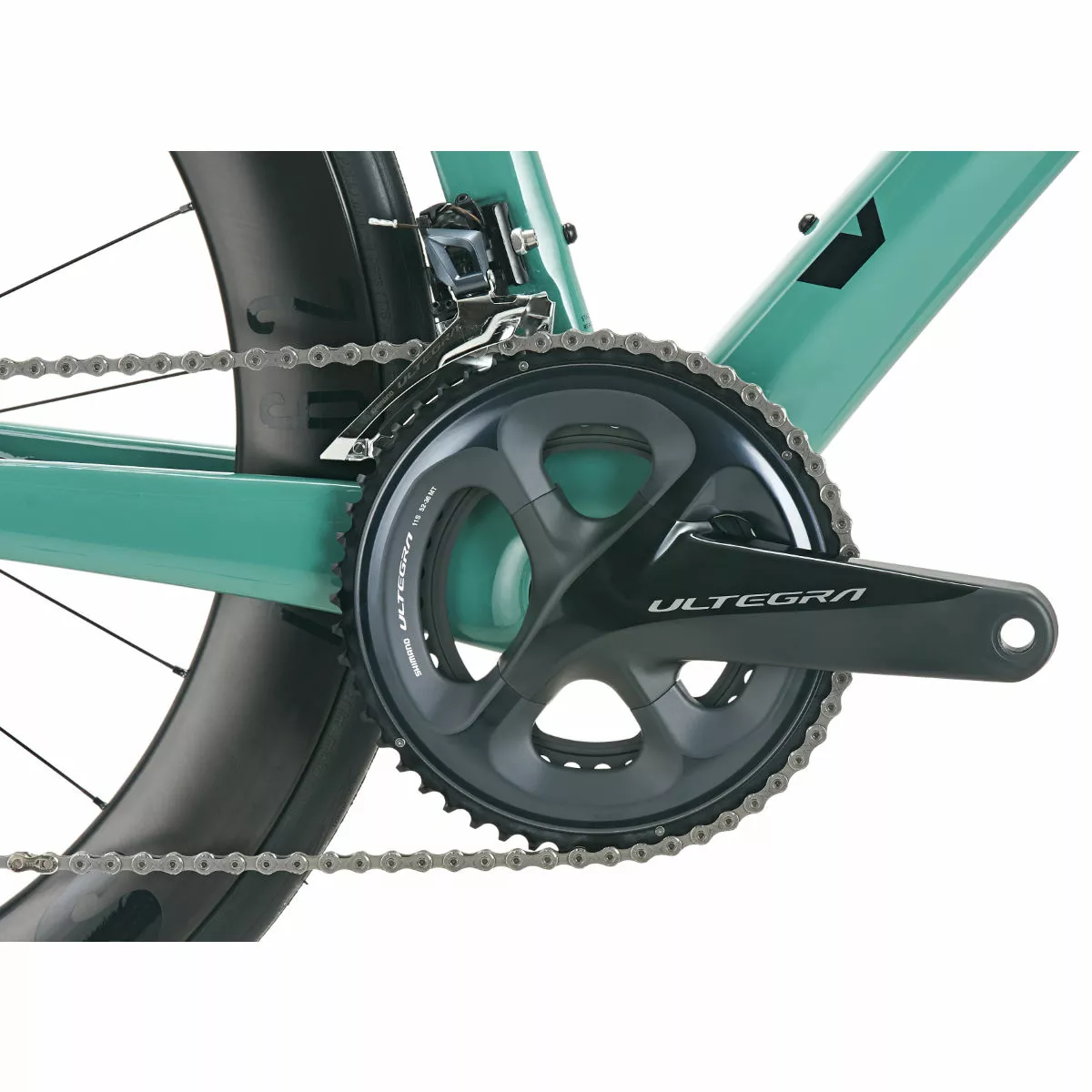

Crankset: Shimano Ultegra R8000, FC-R8000, 52/36T, XS:165mm S:170mm M:172.5mm L:172.5mm XL:175mm XXL: 175mm
Bottom Bracket: TRiPEAK 386-24, BB 386EVO for 24mm axle

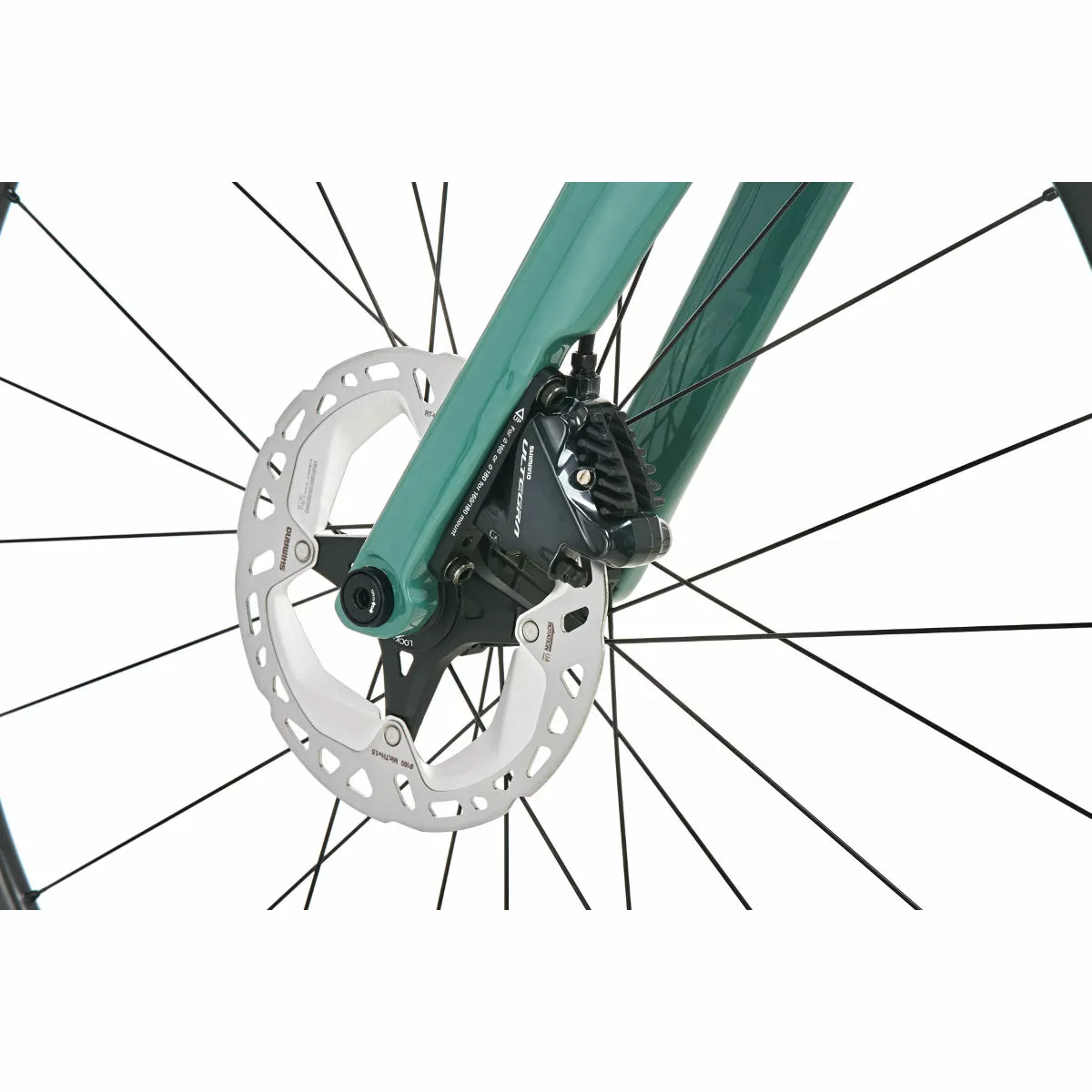

Front Brake: Shimano Ultegra R8000 Disc, BR-R8070, Hydraulic Disc, Flat Mount

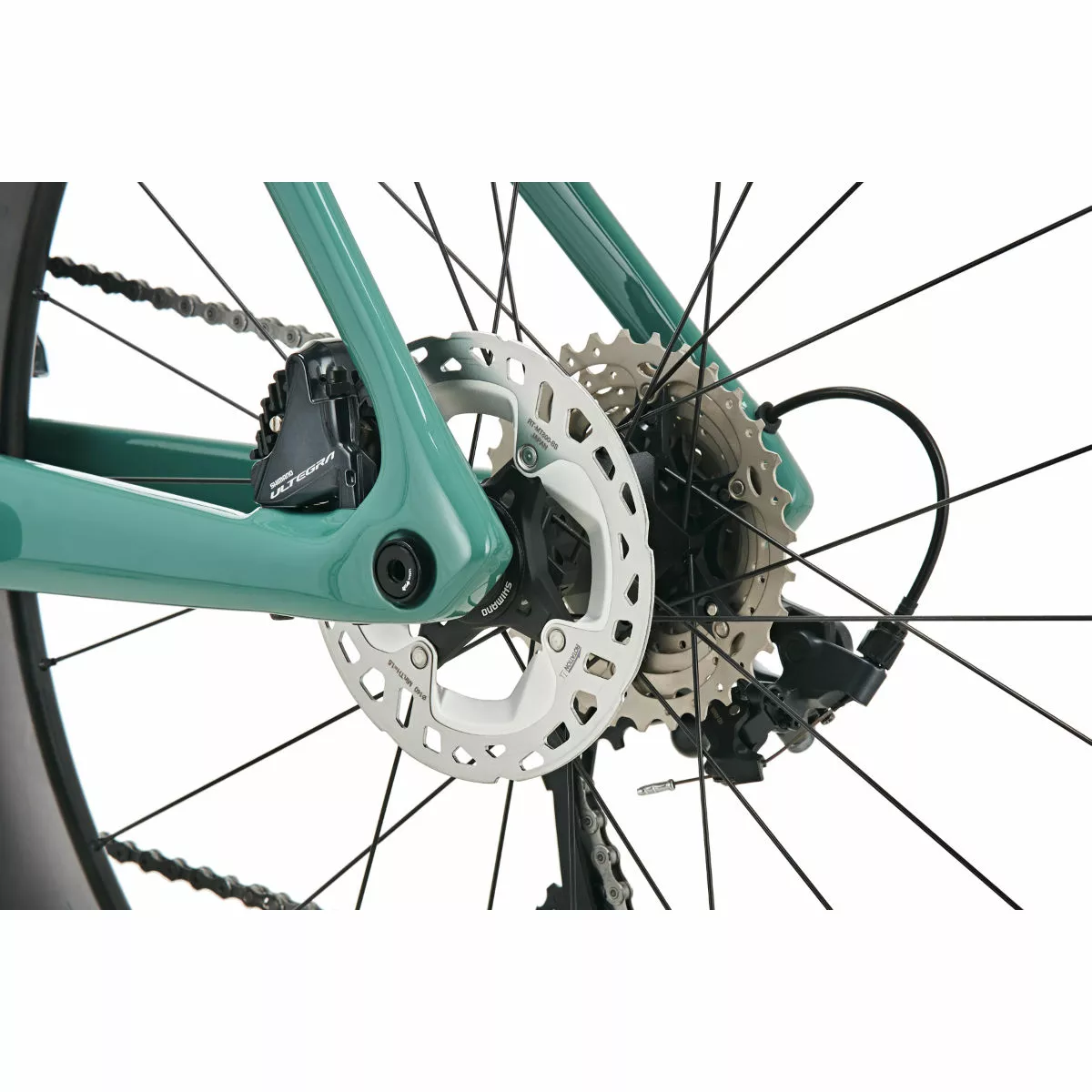

Rear Brake: Shimano Ultegra R8000 Disc, BR-R8070, Hydraulic Disc, Flat Mount
Rotors: Shimano MT800, Front:160mm, Rear:140mm
Front Derailleur: Shimano Ultegra R8000, FD-R8000-F
Rear Derailleur: Shimano Ultegra R8000, RD-R8000-GS, 11-Speed, Long Cage, Shadow
Left Shifter: Shimano Ultegra R8000, ST-R8020
Right Shifter: Shimano Ultegra R8000, ST-R8020, 11-Speed
Freewheel: Shimano Ultegra R8000, 11-32T

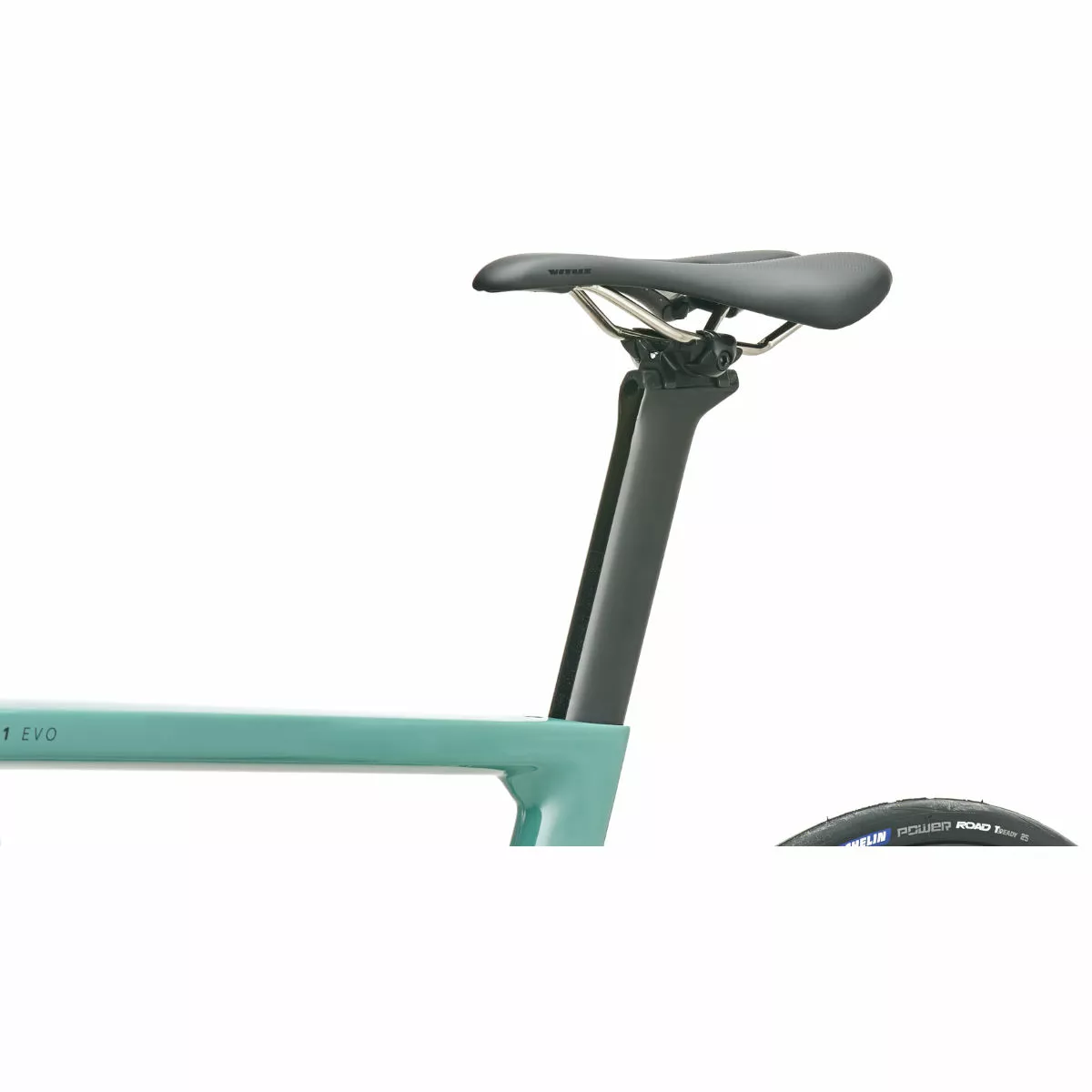

Saddle: Vitus Race Performance, CRN-Ti Rail, Pressure Relief Channel
Seat Post: ZX-1 EVO Aero, +20mm/-2mm Offset, XS/S: 300mm M/L: 350mm XL/XXL: 400mm
Seat Screw: ZX-1 EVO Integrated, Internal Wedge System

Built, Tuned and Ready to Ride

Rest assured that each bike is fully built and tuned by Wiggle’s team of qualified bike mechanics to ensure your bike arrives in perfect condition. We supply all bikes with a set of plastic pedals, a pedal wrench and a multi-tool kit. Find out which size fits you by clicking the size chart tab.

Please Note: Due to ongoing issues in the global bike supply chain, manufacturers may substitute certain component items due to availability. In this situation, they will be replaced with the same quality or better performing parts.

Note: Manufacturer may reserve the right to change the specification of that listed or shown on this page.
