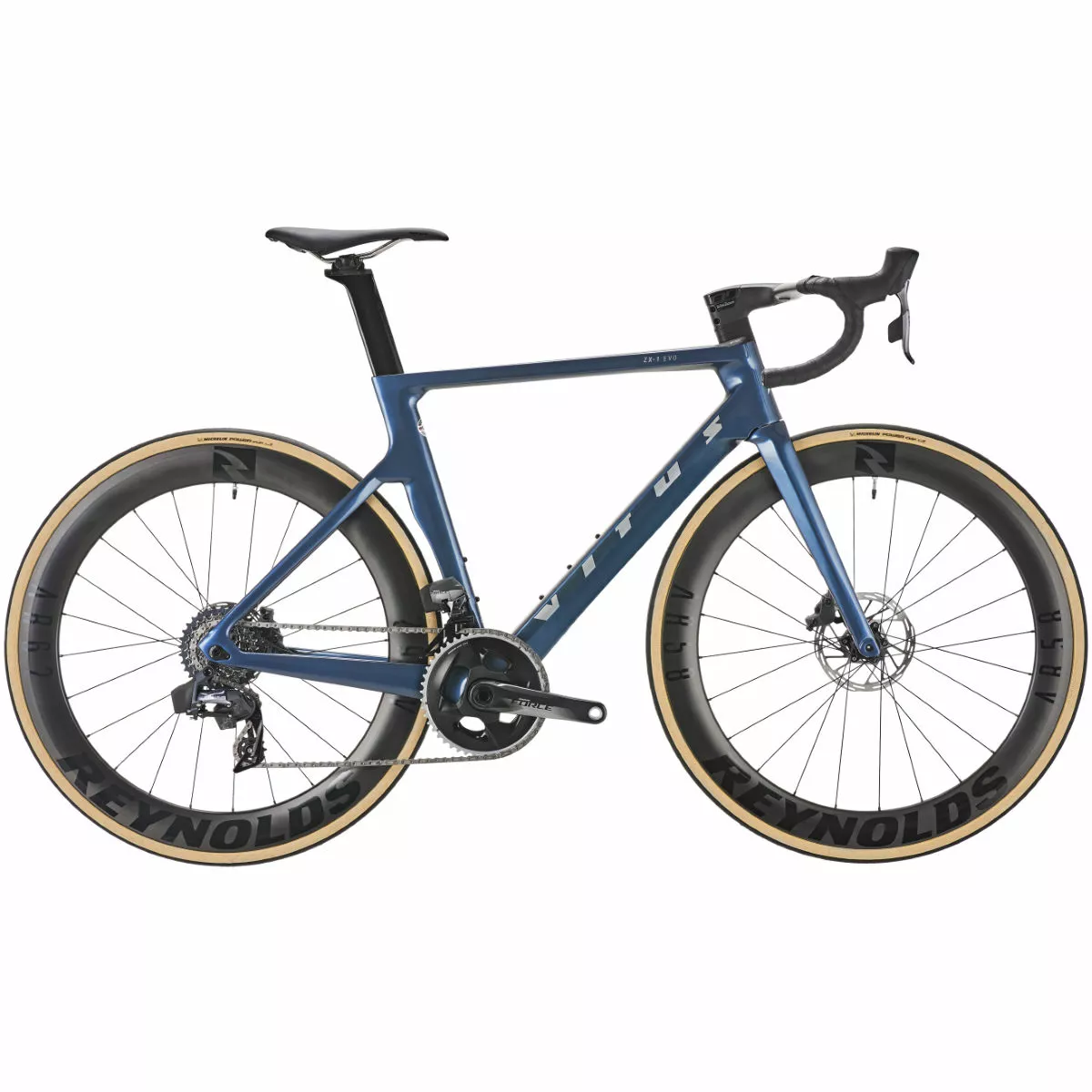

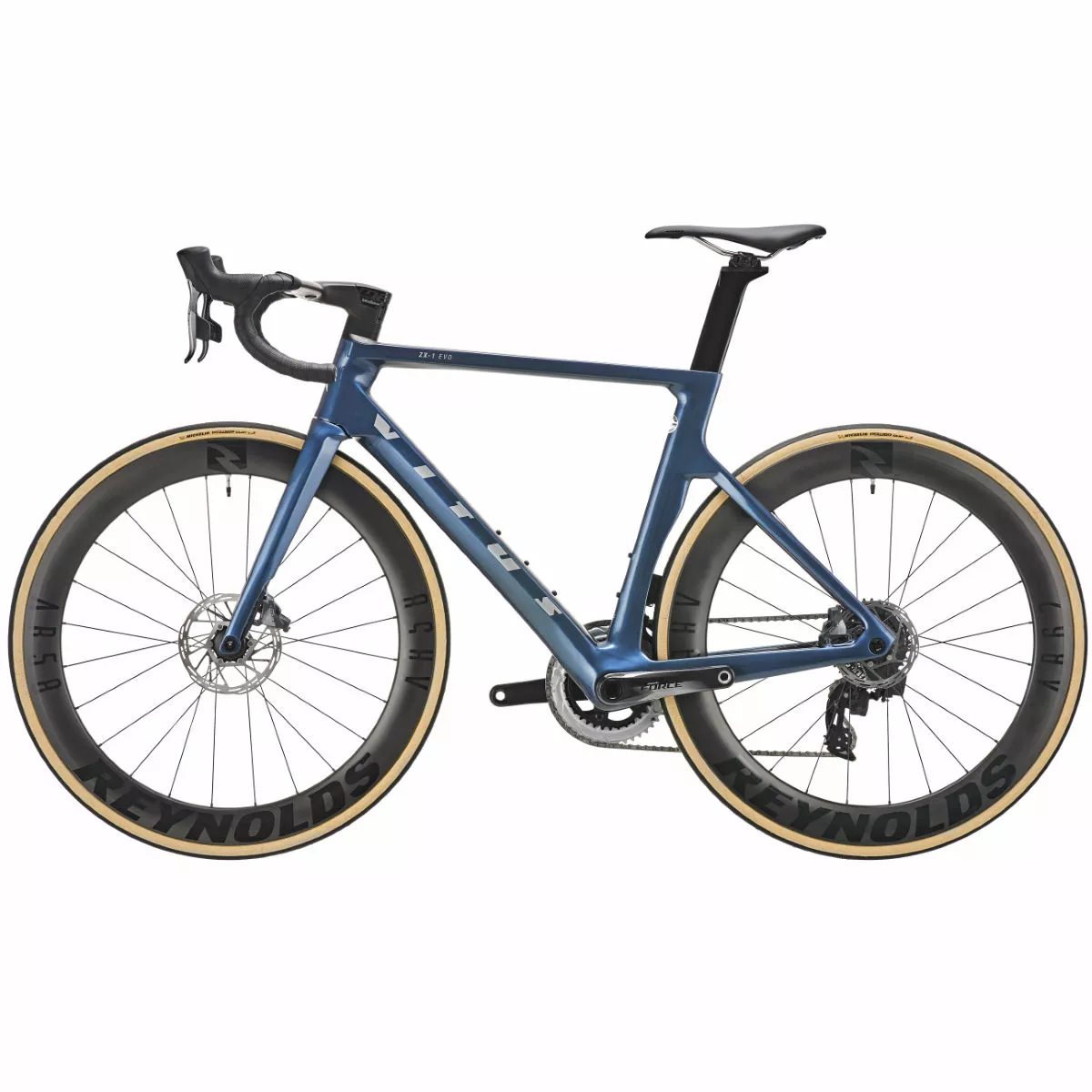

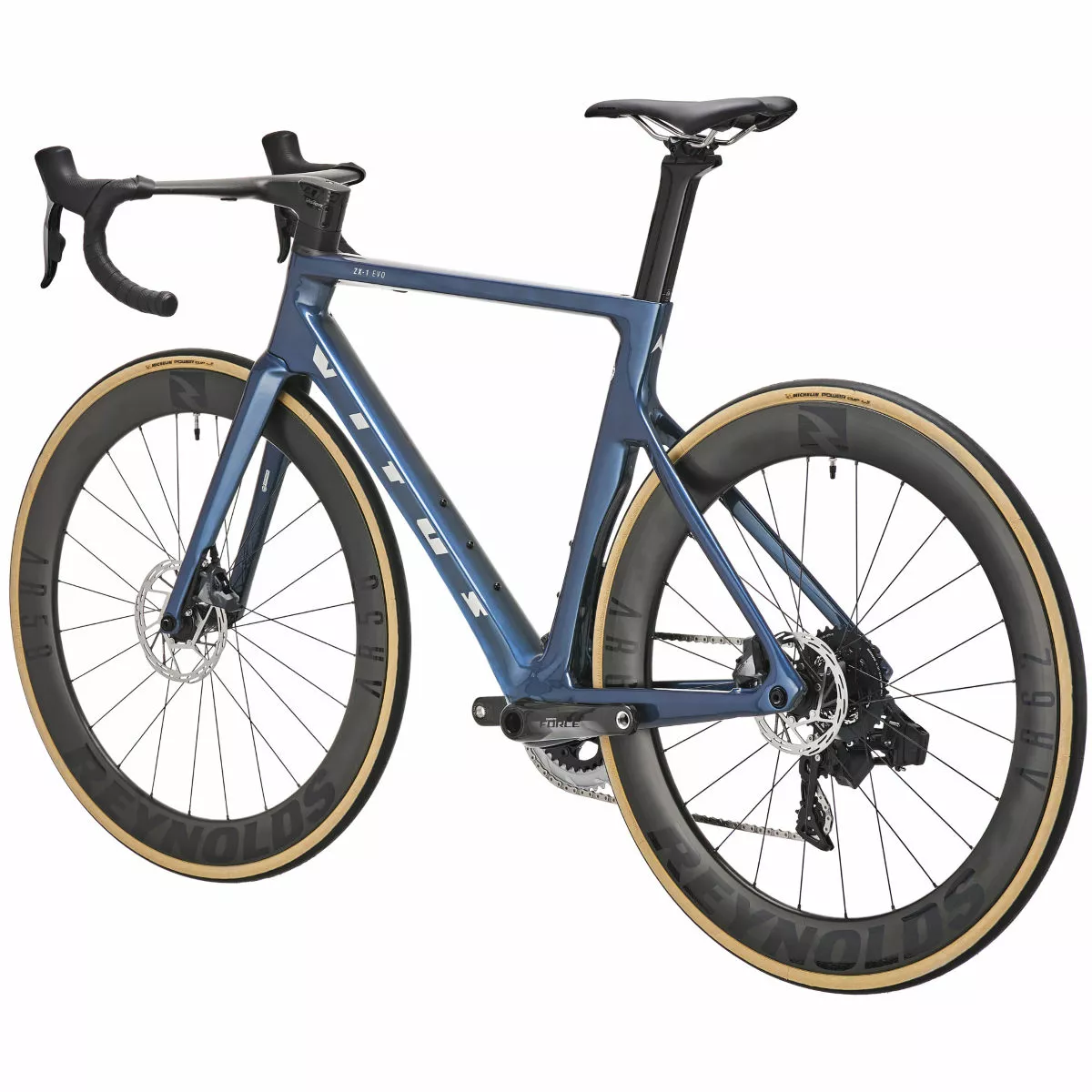

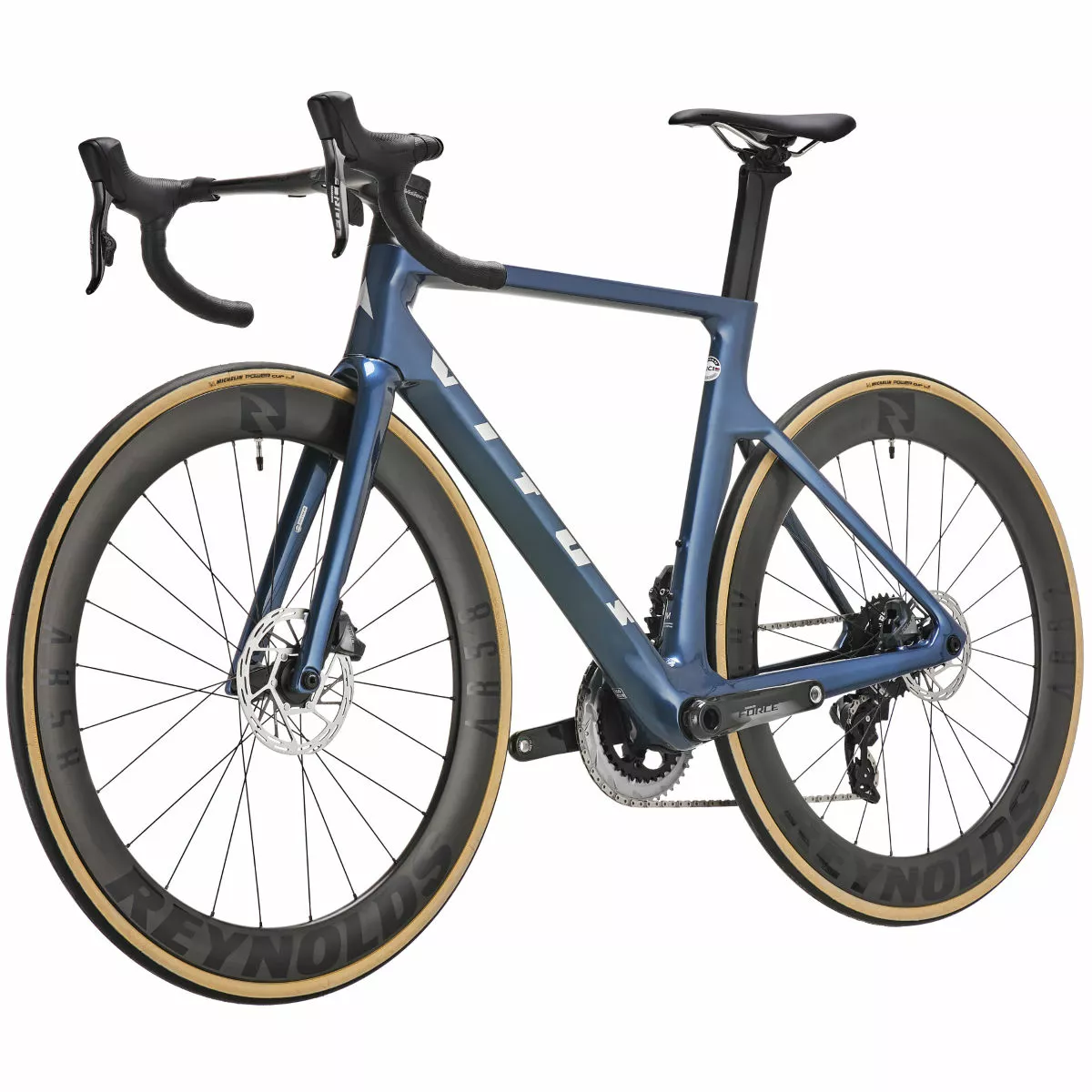

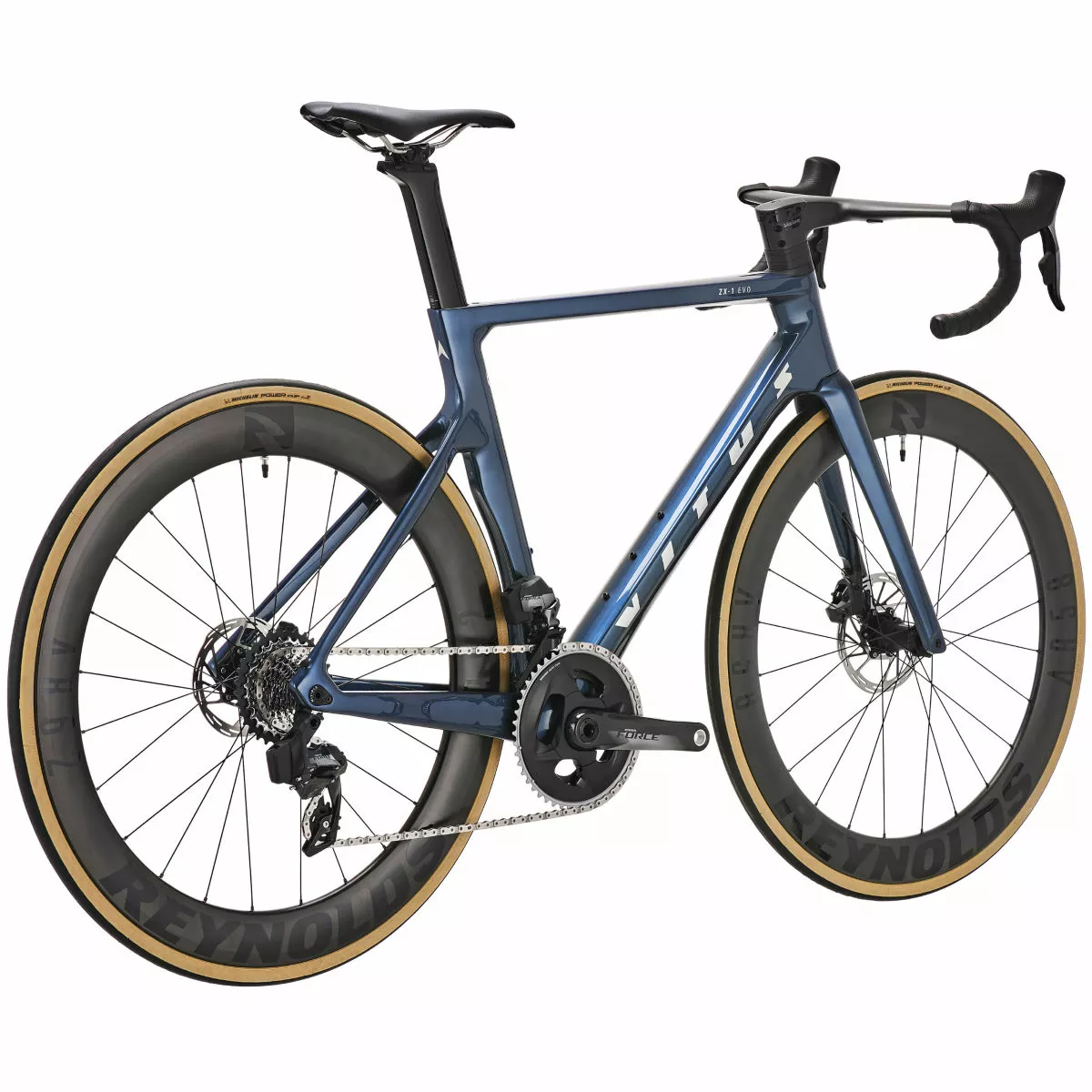

Vitus ZX-1 EVO FORCE ETap Road Bike

Advanced Aero Road Bike Frame

Vitus has done the testing and know that the EVO exhibits up to 45% less drag than the previous model. But that means nothing until you unleash it outside and feel it for yourself. In the world of aero bikes, amongst all the jargon and data, it’s easy to lose sight of what really matters. That to feel fast is to be fast, and you can’t feel fast in a wind tunnel.

Fast Accelerating Carbon Fibre Frameset

The pleasure of speed only exists in the real world. Out there on the road. The sensation of putting power through your pedals and feeling the bike surge underneath you. And the faster you go, the easier it becomes. That’s where the ZX-1 EVO excels. That’s the bike working with you as the road snakes and the wind changes. That’s aero.

Aero Riding Position

The performance geometry slots the rider into a naturally aerodynamic position, so whether racing flat-out, sprinting for road signs or charging on the front of the chaingang, the EVO gathers momentum quickly and holds speed with ease. Vitus has made this bike fast. They know it rides fast. The rest is up to you.

Key Features:

Race-Fit geometry SL UD Carbon aero frame and fork with integrated seat clamp
Full internal cable routing
SRAM Force eTap AXS HRD groupset
Reynolds AR58/62 DB Carbon wheelset

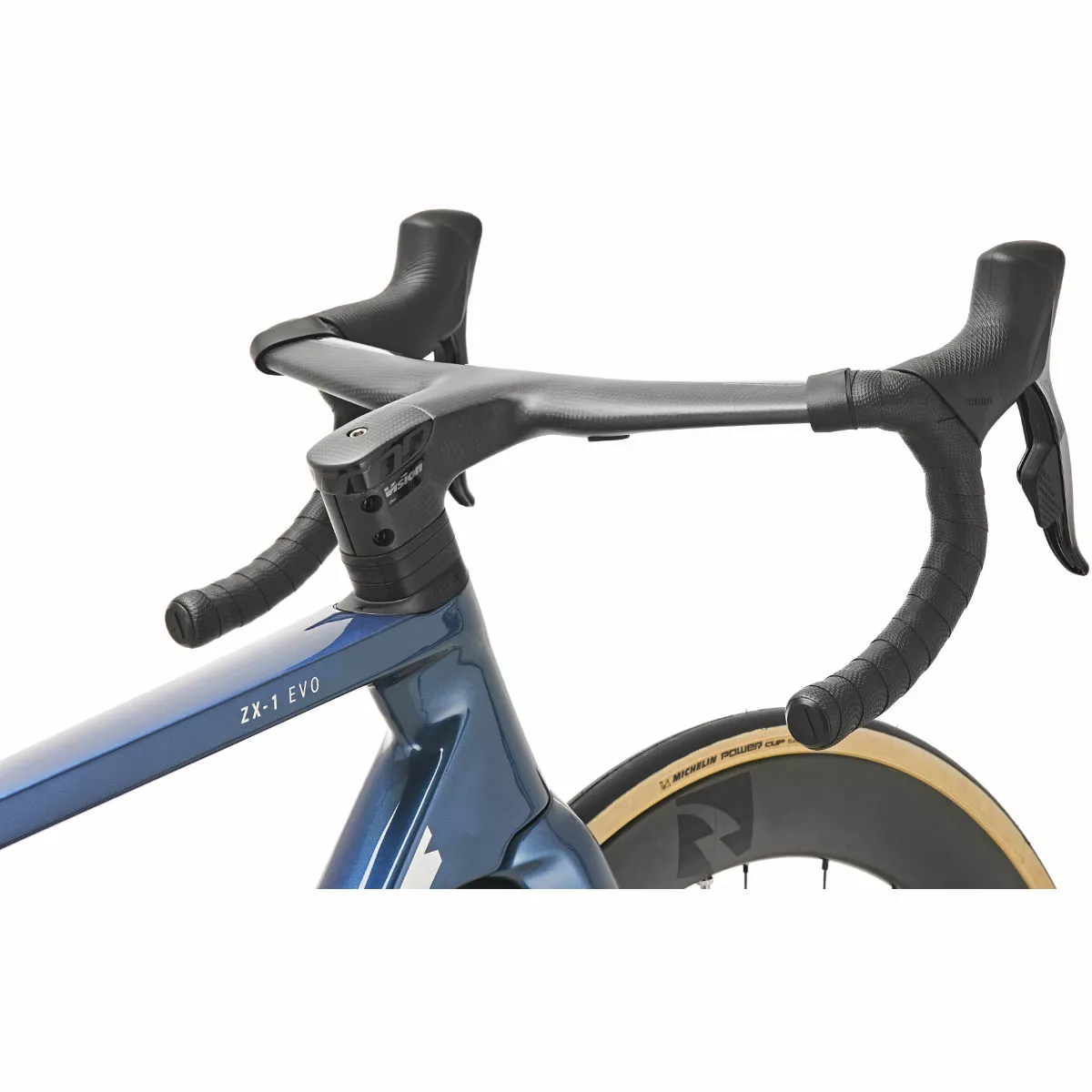

Vision Metron 5D ACR Carbon cockpit

Features:

Frame: ZX-1 EVO Carbon, SL UD Carbon, UCI Approved, Internal Cable Routing, 12mm x 142mm axle, Flat Mount

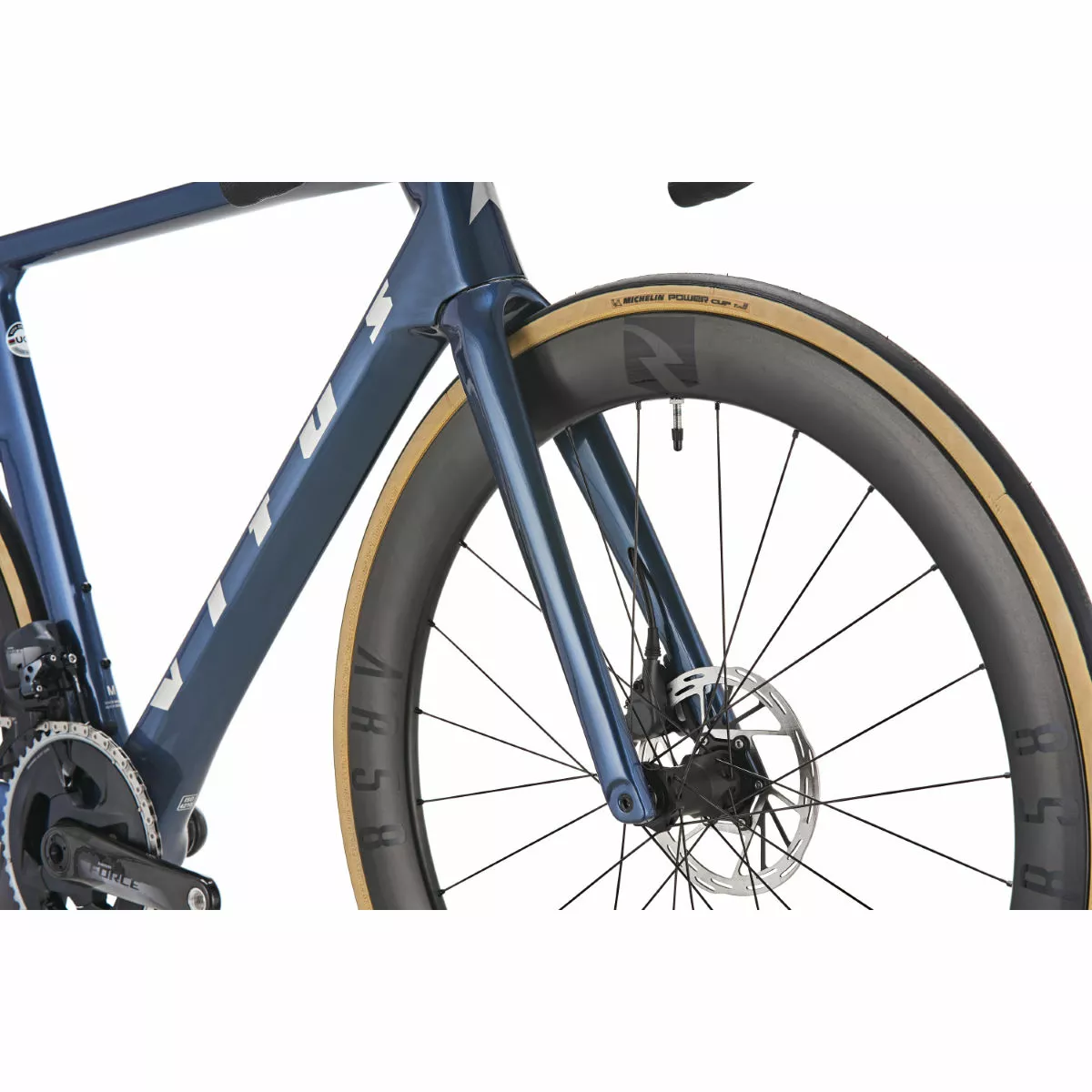

Fork: ZX-1 EVO Carbon, SL UD Carbon, UCI Approved, Tapered Steerer, 100 x 12mm, Flat Mount, Size Specific Offset
Headset: FSA/Vitus ACR, Sealed Bearings, 1.5″ 36×45 degrees (FSA No.55ACR), Vitus/FSA Headset Cover

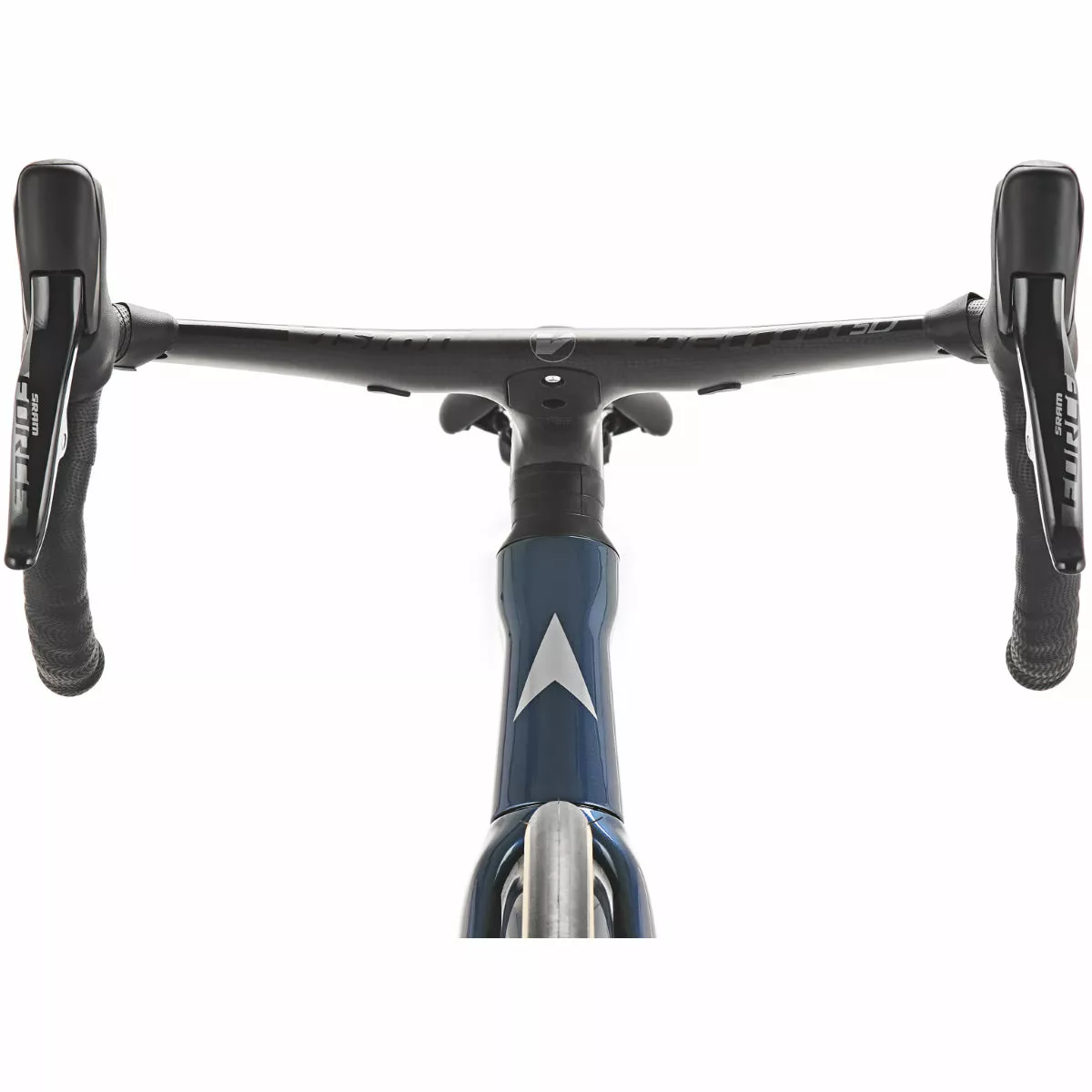

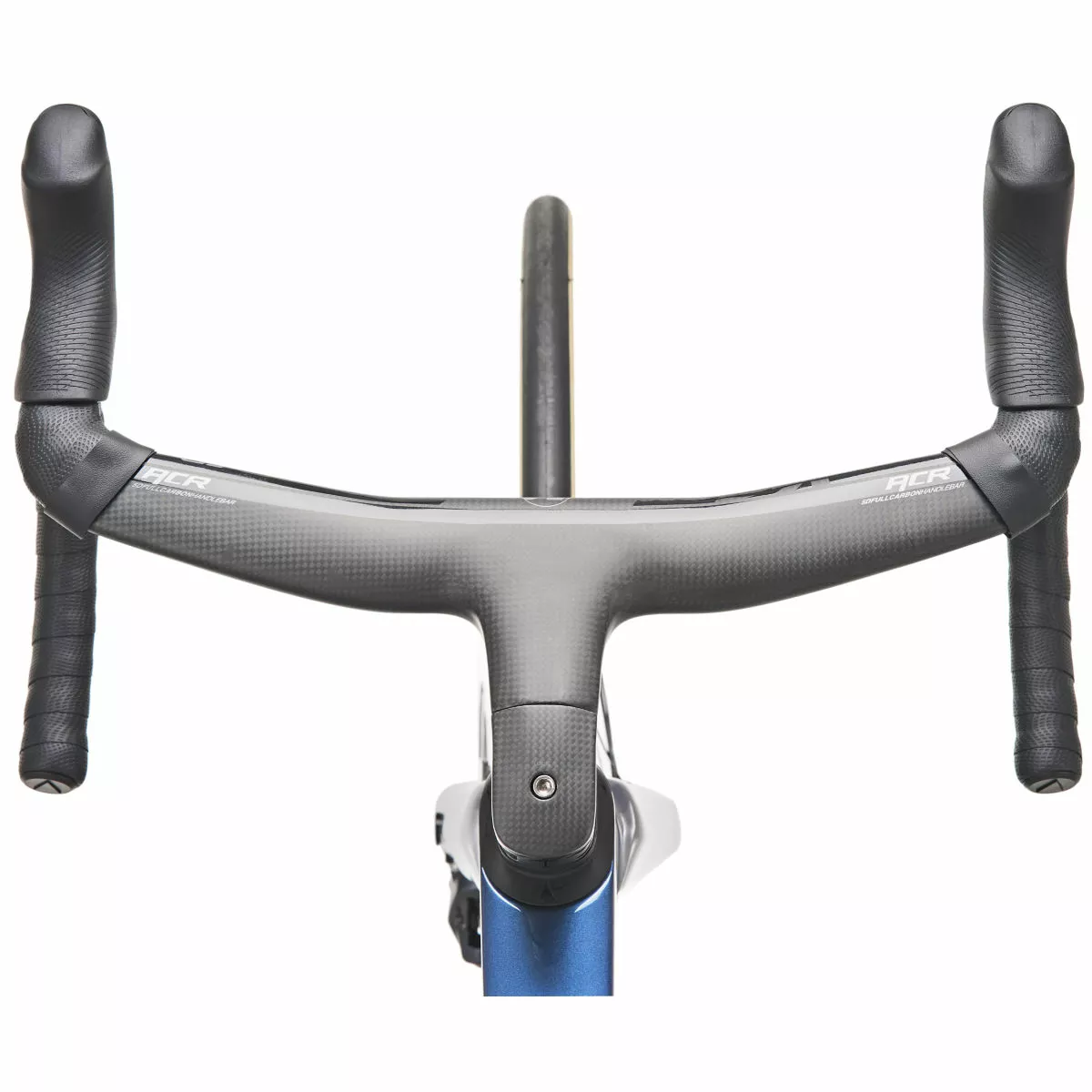

Handlebar: Vision Metron 5D ACR Integrated Bar/Stem Combo, UD Carbon, XS:400mm S:400mm M:420mm L:420mm XL:420mm XXL:420mm
Stem: Vision Metron 5D Acr Integrated Bar/Stem Combo, 125mm drop, – 6 degrees, XS:100mm, S:100mm, M:110mm, L:110mm, XL:120mm, XXL:120mm
Grip(Tape): Vitus Super Grip, Anti Slip
Wheelset: Reynolds AR58/AR62 DB Carbon Carbon Clincher
Front Rim: Reynolds AR58, Carbon, TubelessReady, Disc Brake, Rim Depth: 58mm, Inner Rim Width: 19mm, Outer Rim Width: 28mm, 24 spoke holes
Rear Rim: Reynolds AR62, Carbon, TubelessReady, Disc Brake, Rim Depth: 62mm, Inner Rim Width: 21mm, Outer Rim Width: 30mm, 24 spoke holes
Front Hub: Reynolds GW TR3, 100 x 12mm, Centre Lock
Rear Hub: Reynolds GW TR3, 142 x 12mm, Centre Lock, XD-R Freehub
Front Tyre: Michelin Power Cup Classic TS TLR, 700c x 25c, Tubeless Ready
Rear Tyre: Michelin Power Cup Classic TS TLR, 700c x 25c, Tubeless Ready
Spoke: Reynolds Sprint 2x Lacing, External Brass Nipples
Chain: SRAM Force D1, 12 Speed

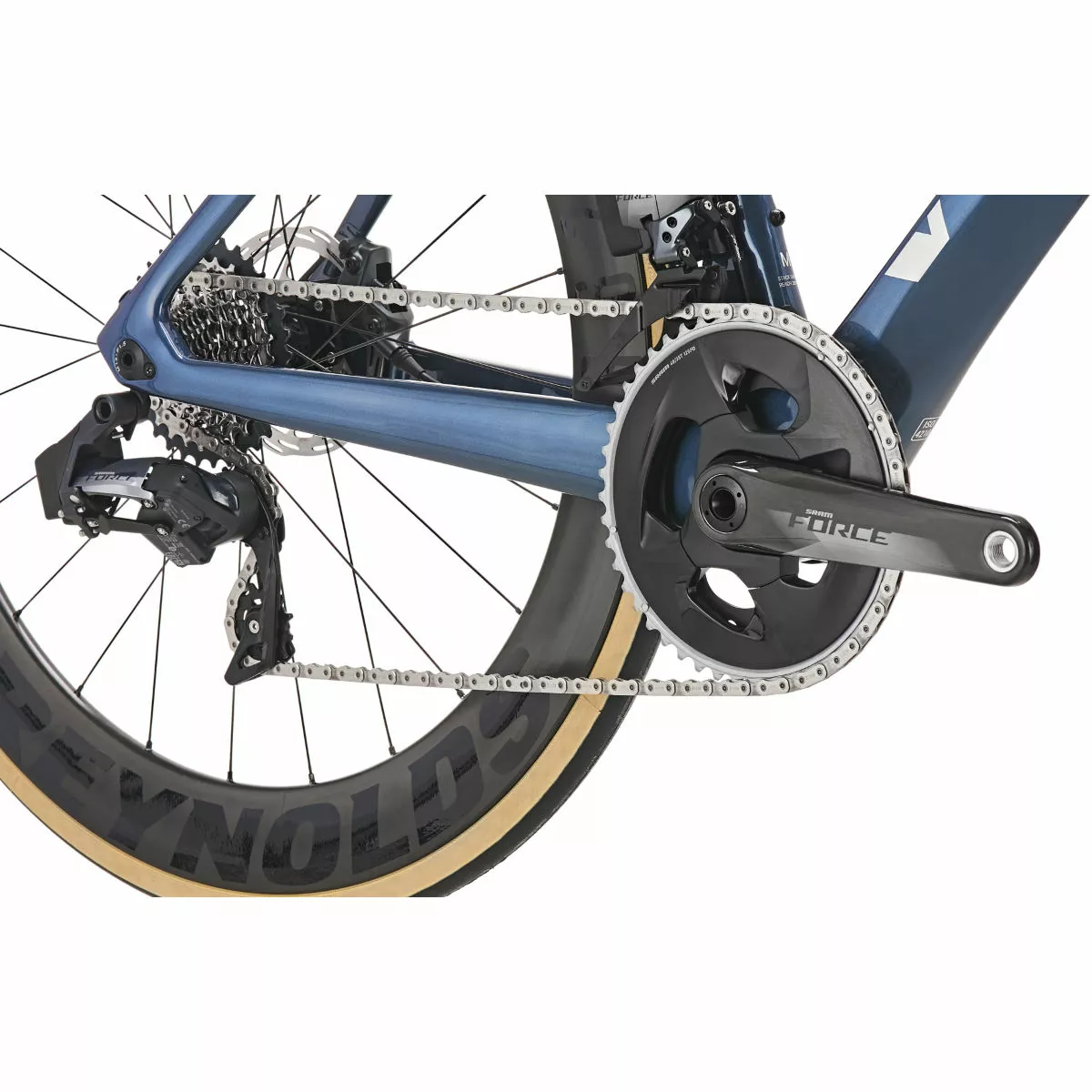

Crankset: SRAM Force D1 DUB, 48/35T, XS:165mm S:170mm M:172.5mm L:172.5mm XL:175mm XXL: 175mm
Bottom Bracket: SRAM DUB BB386, DUB for BB386EVO

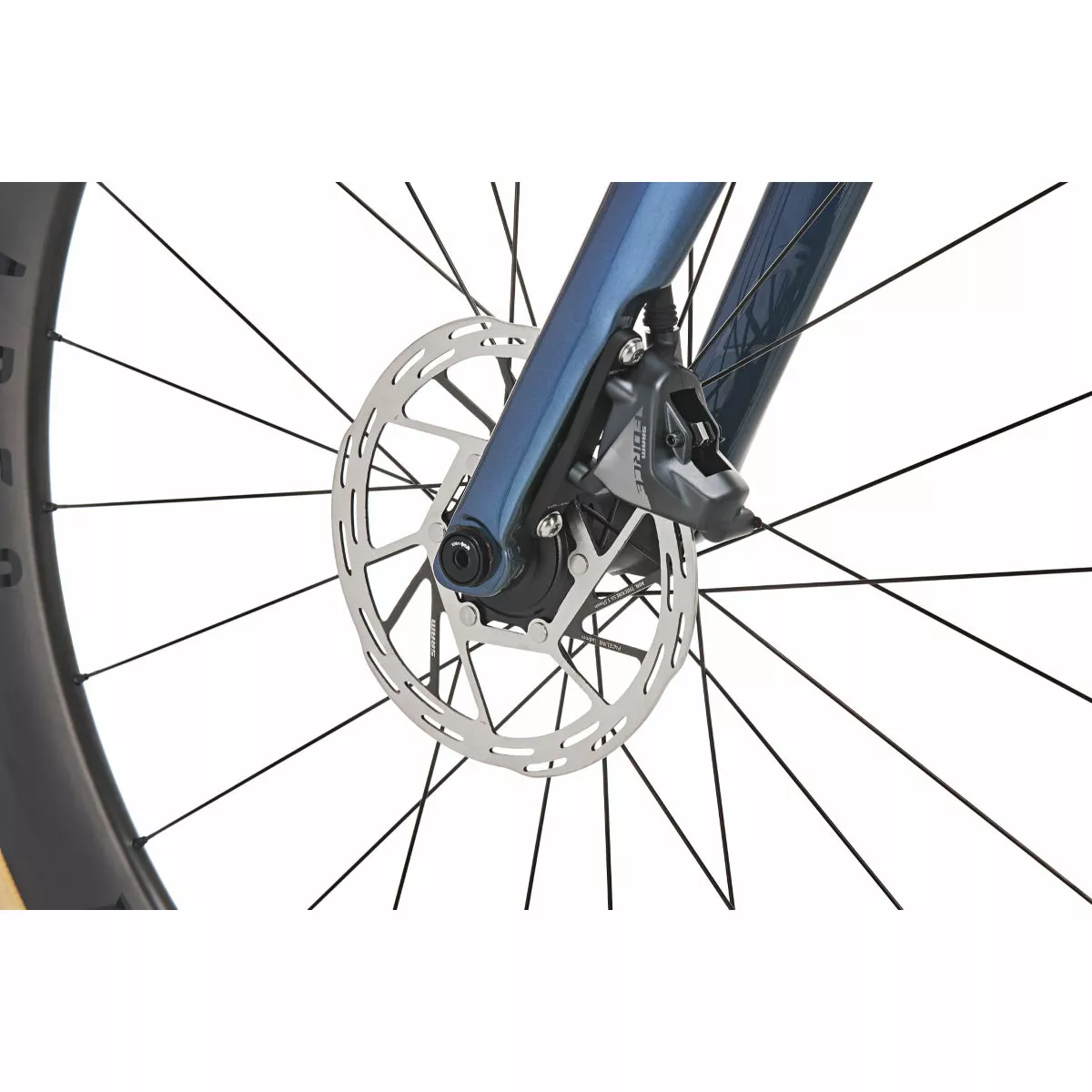

Front Brake: SRAM Force eTap AXS D1 Disc, Hydraulic Disc, Flat Mount
Rear Brake: SRAM Force eTap AXS D1 Disc, Hydraulic Disc, Flat Mount
Rotors: SRAM Paceline, Front:160mm, Rear:140mm
Front Derailleur: SRAM Force eTap AXS, 2×12 Speed, Braze-On
Rear Derailleur: SRAM Force eTap AXS, 12 Speed, Short Cage
Left Shifter: SRAM Force eTap AXS, 2×12 Speed
Right Shifter: SRAM Force eTap AXS, 12 Speed
Freewheel: SRAM XG 1270 D1, 10-33T

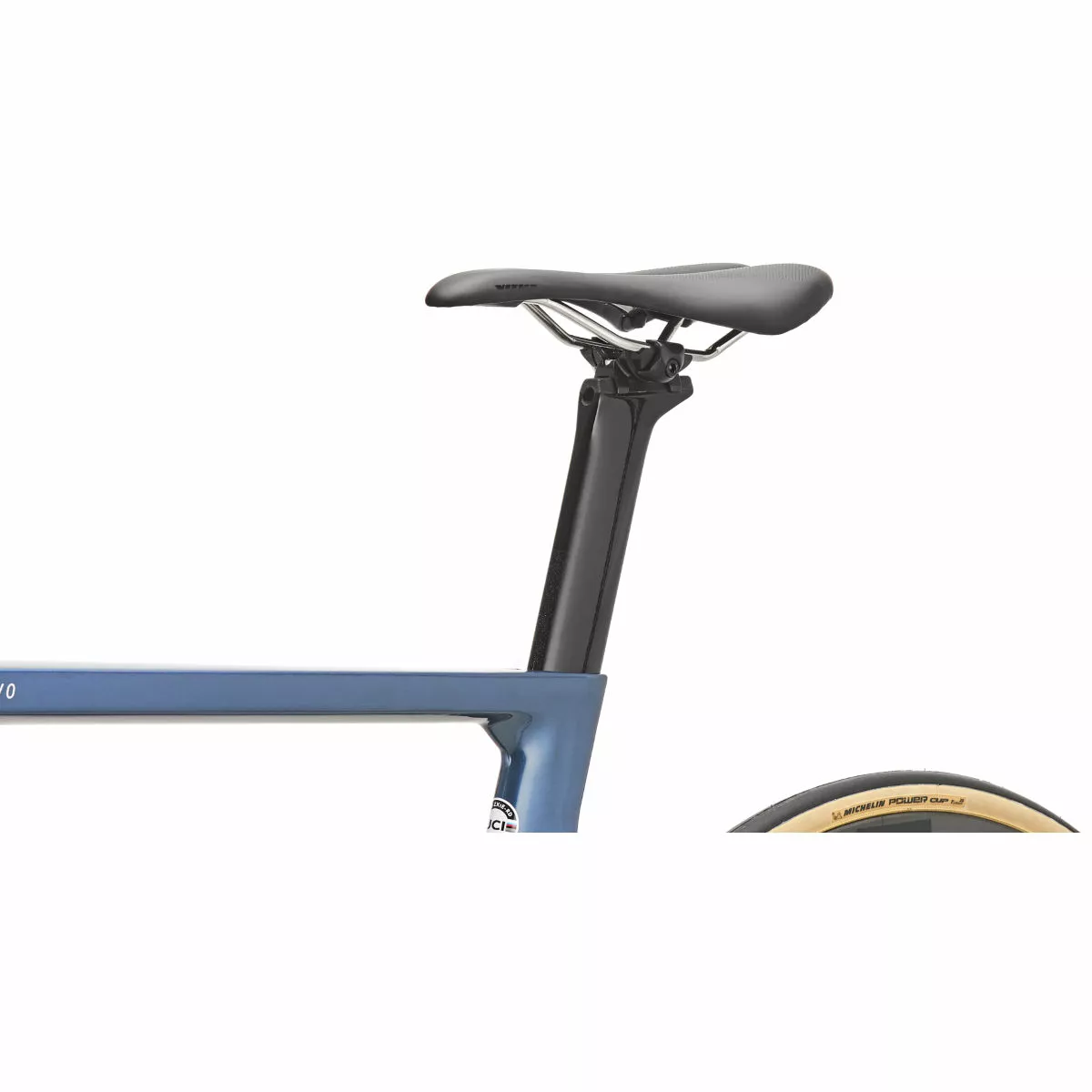

Saddle: Vitus Race Performance, CRN-Ti Rail, Pressure Relief Channel
Seat Post: ZX-1 EVO Aero, +20mm/-2mm Offset, XS/S: 300mm M/L: 350mm XL/XXL: 400mm
Seat Screw: ZX-1 EVO Integrated, Internal Wedge System
Weight: Medium: 8.4kg

Technologies:

Full Monocoque Frame: The ZX-1 EVO features a true monocoque frame, manufactured as a single piece. Comfort and performance go hand-in-hand, while eliminating any joins creates greater strength and results in a light weight, eye catching frame. Less aerodynamic drag, for ultimate speed when out on the open road

Race-Fit Geometry: Race-Fit geometry is reserved for Vitus’ performance led race bikes. The aim is to put the rider in the most advantageous position possible, maximising power output and aerodynamic positioning, whilst maintaining comfort

Dual Fork Design: Vitus has introduced frame size specific fork geometry maintaining fit and handling characteristics across the full size curve. By adjusting the rake on the smaller sizes this ensures handling isn’t compromised, whilst at the same time giving riders the same toe overlap versus the bigger frame sizes

Tyre Clearance: Performance shouldn’t come about at the expense of practicality, that’s why the ZX-1 EVO brings 700c x 30 tyre clearance across all sizes. For added comfort and control, without compromising on speed

Note: Manufacturer may reserve the right to change the specification of that listed or shown on this page.
